Page 14

13
2. Installation
This chapter will describe, in general terms, how to install the EZ650 camera.
STEPS:
1. Wire and mount the camera. See 2.1
2. Adjust the camera position. See 2.2
3. Adjust Lens. See 2.3
4. Connect to Keyboard (Optional) See 2.4
Warning
To prevent electrical shock, turn off the electrical power before making electrical
connections.
Do not expose the appliance to water or moisture, nor try to operate it in wet areas.
2.1 Wiring and Mounting

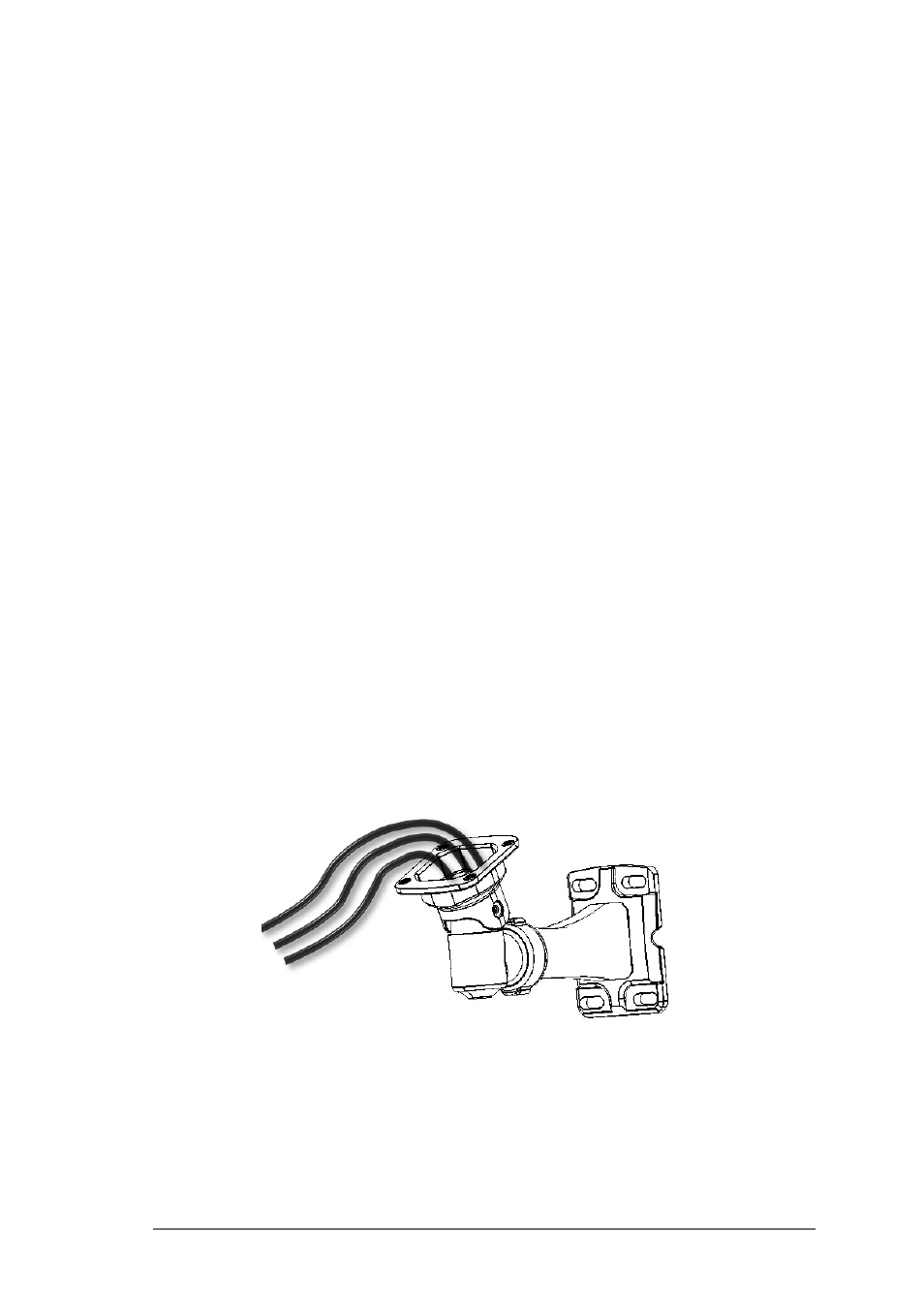

1. Wire coaxial cable, power cable and RS485 cable through the bracket.
Note:
1. Please use RG59/5C2V coaxial cable without connector
2. Use RS485 cable only if you need to control the camera by a keyboard.
Chapter
2
Coaxial cable
Power cable
RS485 cable
