EverFocus EZ650 User Manual
Page 17
16
Note: 1. Power cable’s diameter must be less than 10 mm
2. Only use RG59/5C2V for Video cable
3. RS485 cable must be less then 5 mm

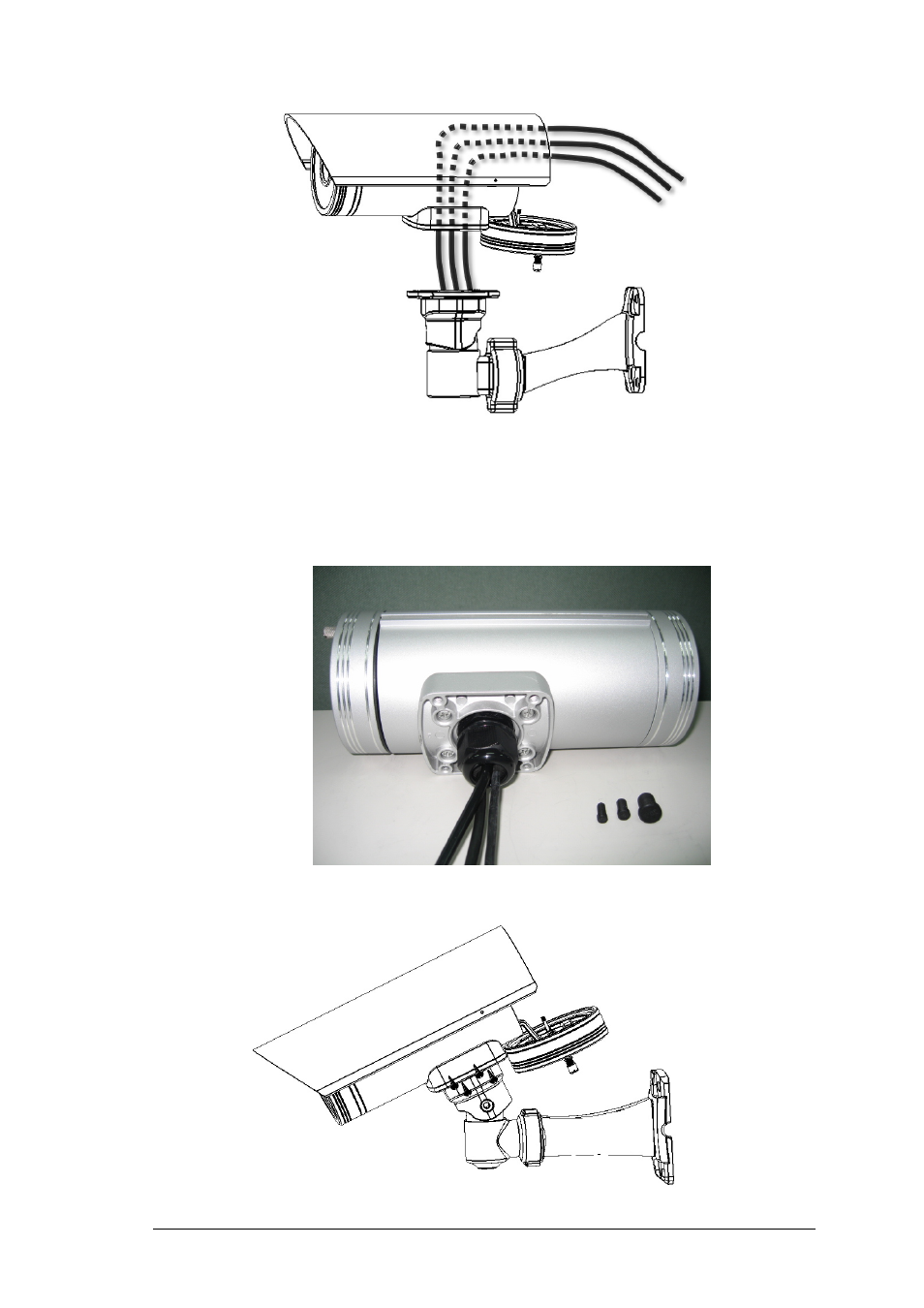

6. Close the waterproof cap and fix waterproof conduit to the base of camera firmly.
7. Fix the camera body to bracket by using the 4 shorter screws.
Coaxial cable
Power cable
RS485 cable
