CHAPTER 8 WHEN A PROBLEM OCCURS
1
8-3
2. When paper misfeeds
If a paper misfeed occurs, copying will stop. The Misfeed indicator flashes and a misfeed location indicator lights. Remove the misfed paper by
referring to “(3) Removal procedures”, with the main switch in the ON (|) position.

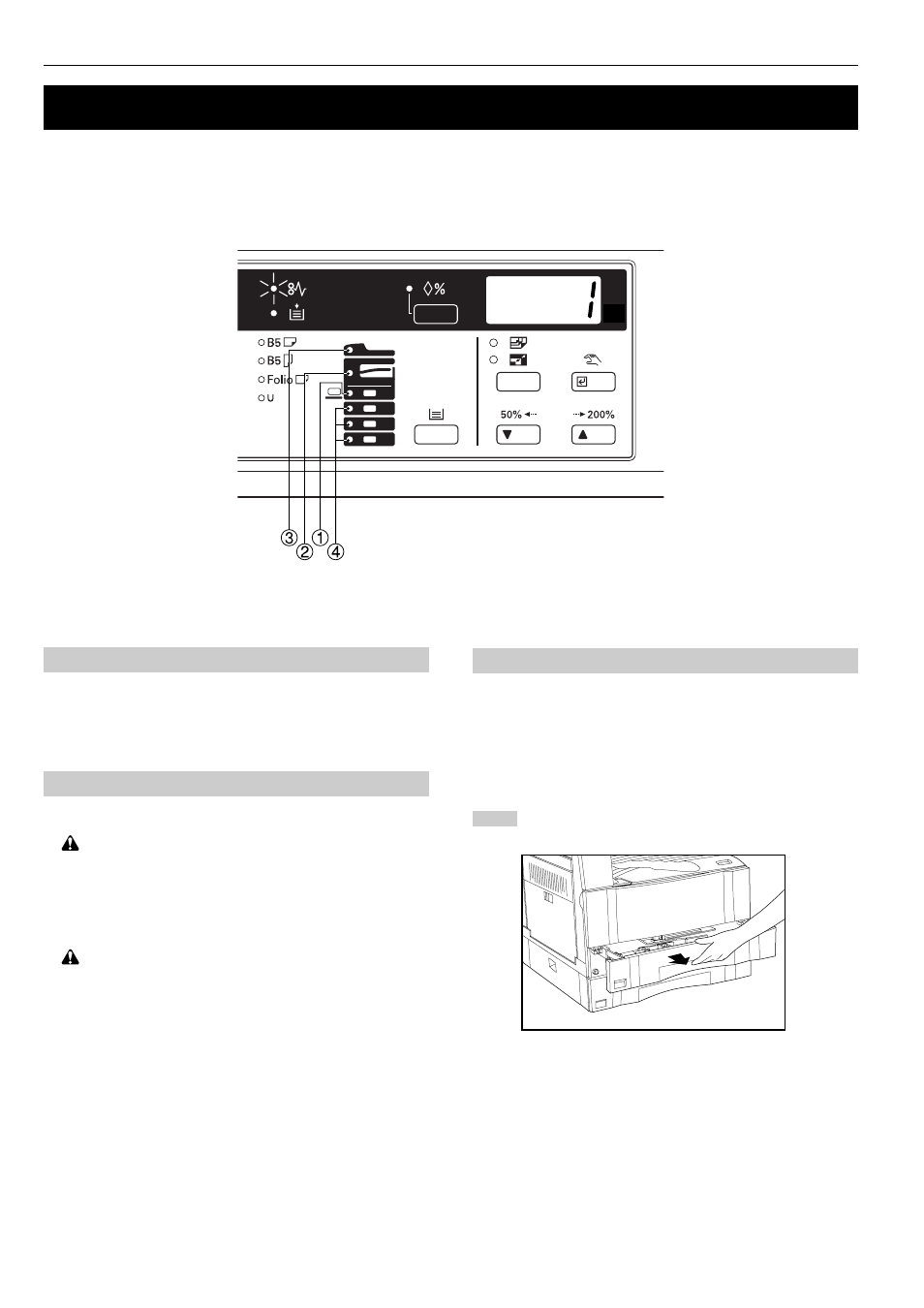

(1) Misfeed location indicators
1 1 1 1 1 Misfeed in paper feed section
2 2 2 2 2 Misfeed in left cover (page 8-4)
3 3 3 3 3 Misfeed in DF (page 8-5)
4 4 4 4 4 Misfeed in drawer (page 8-5)
(2) Cautions
CAUTION
The copier’s fixing unit is extremely hot. Take sufficient
care when working in this area, as there is a danger of
getting burned.
WARNING
High voltage is present in the charger section. Take
sufficient care when working in this area, as there is a
danger of electrical shock.
* Do not reuse misfed paper.
* If paper is torn during removal, be sure to remove all loose scraps
from inside the copier, or they could cause misfeed later.
* After misfed paper has been removed, warm-up will begin. The
Misfeed indicator will turn off and the copier will return to the same
settings prior to the misfeed.
(3) Removal procedures
1 1 1 1 1 Misfeed in paper feed section
● Misfeed in drawer
If the misfeed location indicator shown in the illustration below
lights while using the drawer, a misfeed has occurred in the drawer.
Remove the misfed paper using the procedure given below.
Open the drawer.
