Model PD6400 High Voltage & Current Meter
Instruction Manual
71
Multi-Point Linearization (Linear)

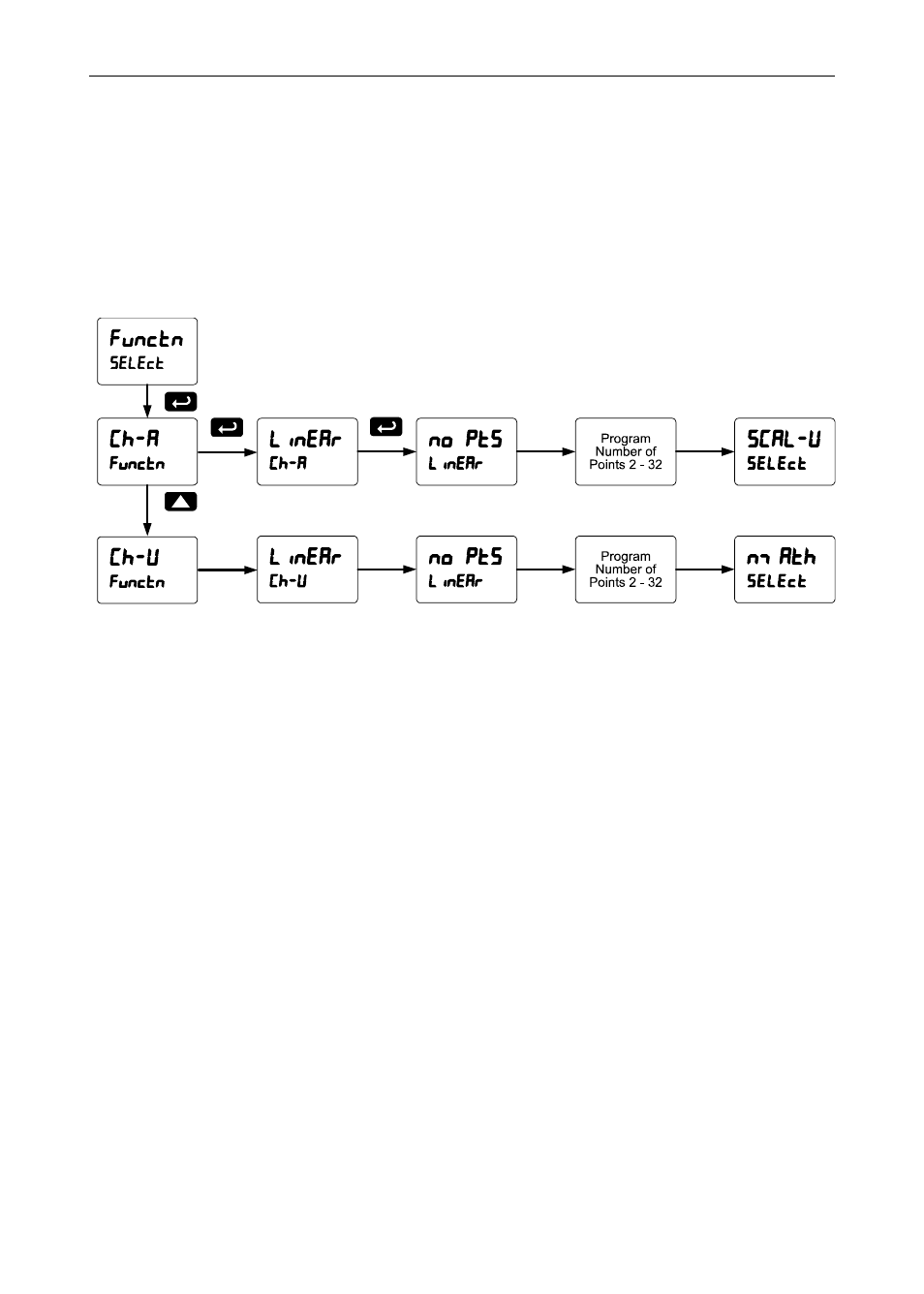

The multi-point linearization can be used to linearize the display for non-
linear signals. The Function menu is used to access the Linear menu
and select the number of linearization points applied to the input for
either Ch-A or Ch-V. Meters are set up at the factory for linear function
with 2-point linearization. Up to 32 linearization points can be selected
for each channel under the linear function.
Note: After Scale is displayed continue pressing the Enter button until
the meter completes the scaling of the input and display values.
