Page 52
50

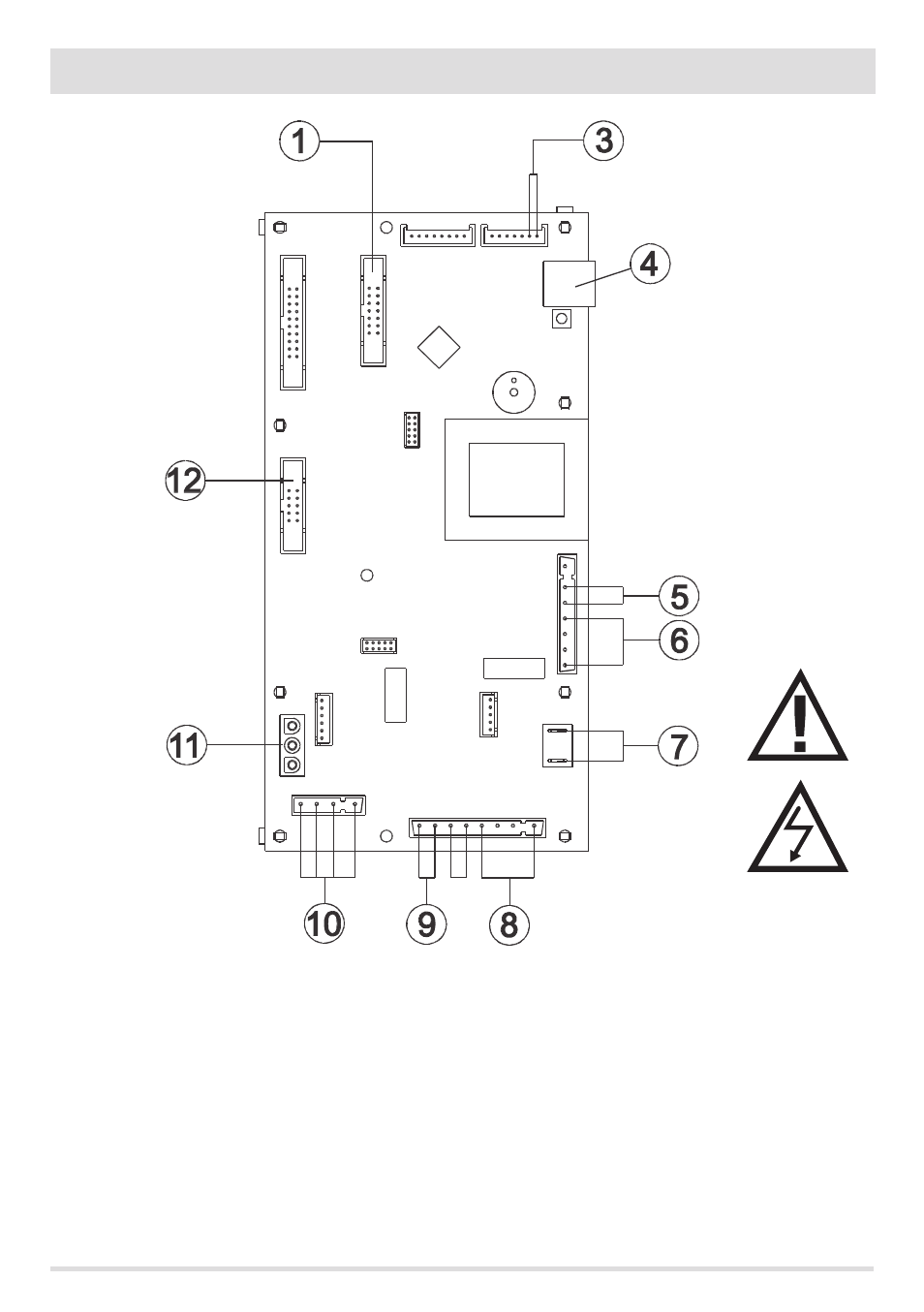

12-WIRING DIAGRAMS
MOTHERBOARD WIRING KEY
1.
EMERGENCY PANEL
3.
SMOKE PROBE
4.
MODEM CONNECTION
5. SWITCH
6.
SPARK PLUG
7.
SMOKE EXPULSION FAN
8.
GEAR MOTOR
9.
CONTACT THERMOSTAT
10.
AIR FAN
11.
SMOKE EXPULSION FAN REV CONTROL
12.
AIR DOOR SENSOR
N.B. The wiring of the individual components is fitted with pre-wired connectors of different sizes.
