Optional Equipment—All Systems
17
10.0 O
PTIONAL
E
QUIPMENT
—A
LL
S
YSTEMS

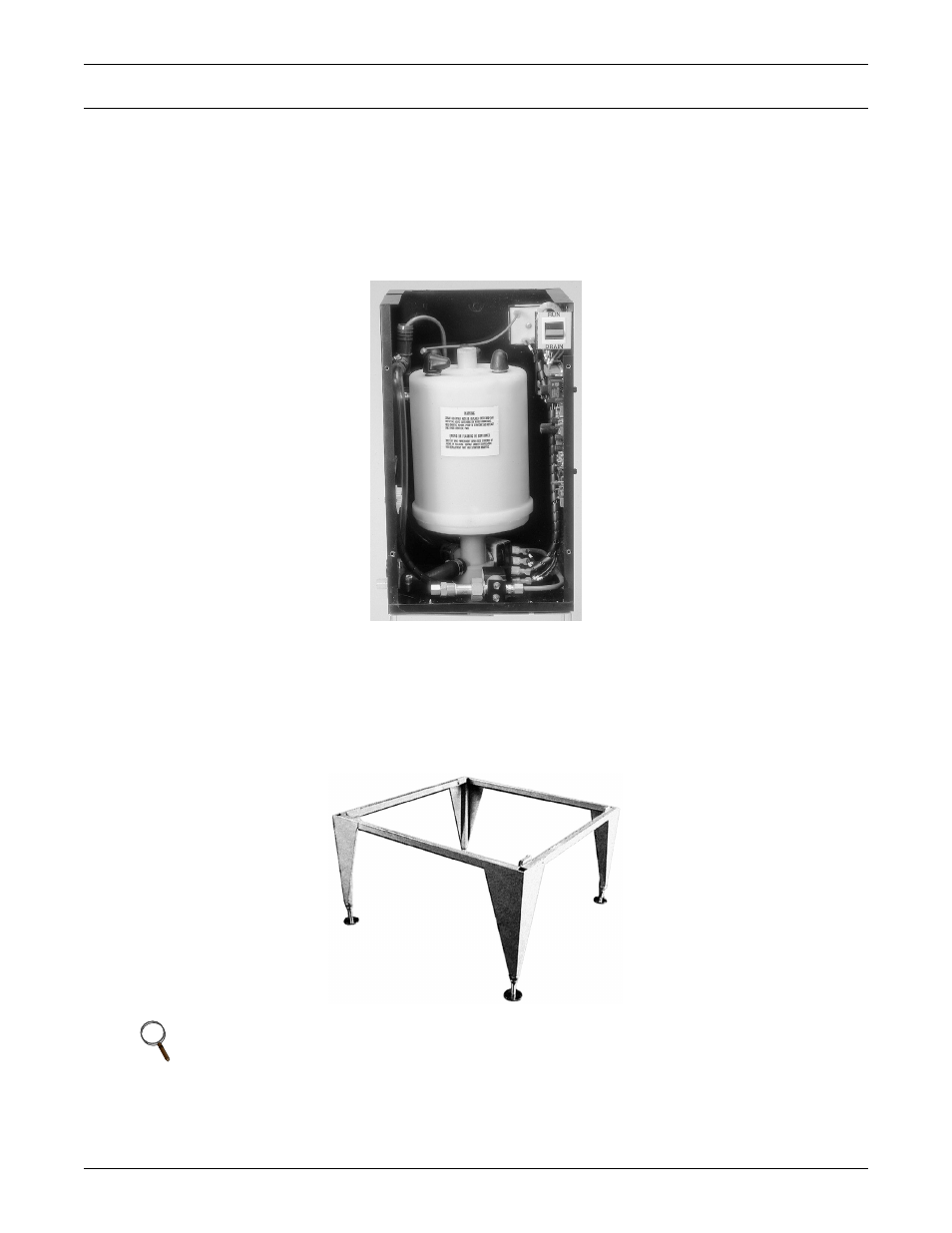

10.1 Steam Generating Humidifier
Clean, pure steam is generated in a disposable canister that is complete with supply and drain valves,
electronic controls and steam distributor. The humidifier is provided with an automatic flush cycle to
lengthen service life. An indicator on the Liebert Challenger ITR monitor panel is activated when the
canister should be changed.
Figure 8
Steam generating humidifier
10.2 Adjustable Floor Stand
Available in heights from 9" to 24" (228.6 to 609.6mm) in 3" (76.2mm) increments, adjustable +1-1/2"
(38.1mm). Allows for installation and connection of the Liebert Challenger ITR prior to installation of
the raised floor.
Figure 9
Adjustable floor stand
NOTE
Some options or combinations of options may result in reduced air flow. Consult factory for
recommendations.
