CVEQ 100 and SVEQ 100 Series • Operation
Operation
CVEQ 100 and SVEQ 100 Series • Operation 3-4 3-5
a
Power indicator LED — This LED lights:
• Amber when the line driver is receiving full power (this
applies to all models except the CVEQ 100 and SVEQ 100,
which light green instead).
• Green when the line driver is receiving a video signal (this
only applies to the D, AAP, and MAAP models).
Ç
Gain potentiometer (CVEQ 100 and luma of SVEQ 100) — Use
a small screwdriver to rotate this potentiometer to adjust the
CVEQ 100's gain and the SVEQ 100's luminance gain when the
line driver is connected to long output cables. The adjustment
range is -1 dB to +3 dB. The default is unity (the dot position).
See "Gain adjustment control" in this chapter.
É
Gain potentiometer (chroma of SVEQ 100) — Use a small
screwdriver to rotate this potentiometer to adjust the chroma
gain when the SVEQ 100 is connected to long output cables. The
adjustment range is 0 dB to +10 dB. The default is unity (the dot
position). See "Gain adjustment control" in this chapter.
c
Equalization (EQ) potentiometer — Use a small screwdriver
to rotate this potentiometer to adjust equalization when the line
driver is connected to long output cables. The adjustment range
is 0 dB to +7 dB. The default is set to 0 dB (the dot position). See
"Equalization (EQ) adjustment control" in this chapter.
d
Video input connector — Connect a composite video input
source to this RCA connector.
e

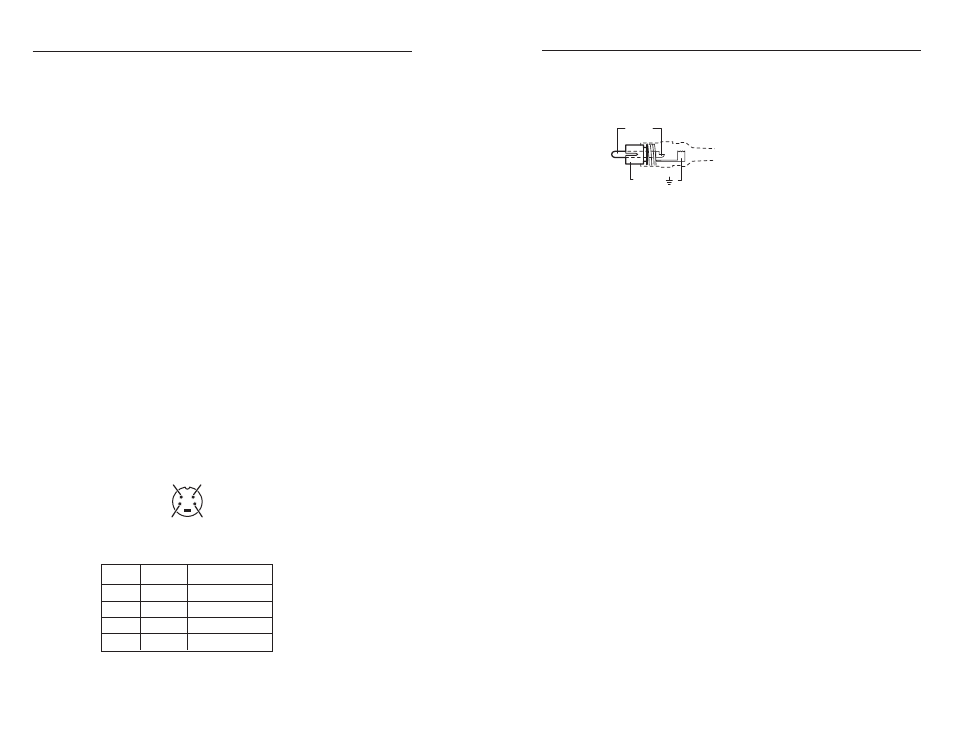

S-video input connector — Connect an S-video input source to
this 4-pin mini DIN connector. See the following pinout table.
3 4
1 2
PIN NAME DESCRIPTION
1 GND Ground (Y)
2 GND Ground (C)
3 Y Luminance
4 C Chrominance
S-video Pinout Table
f
Audio input connectors — Connect an unbalanced stereo audio
source to these left (L) and right (R) RCA connectors. Wire the
male connector as shown in the following illustration.
Tip (+)
Sleeve ( )
