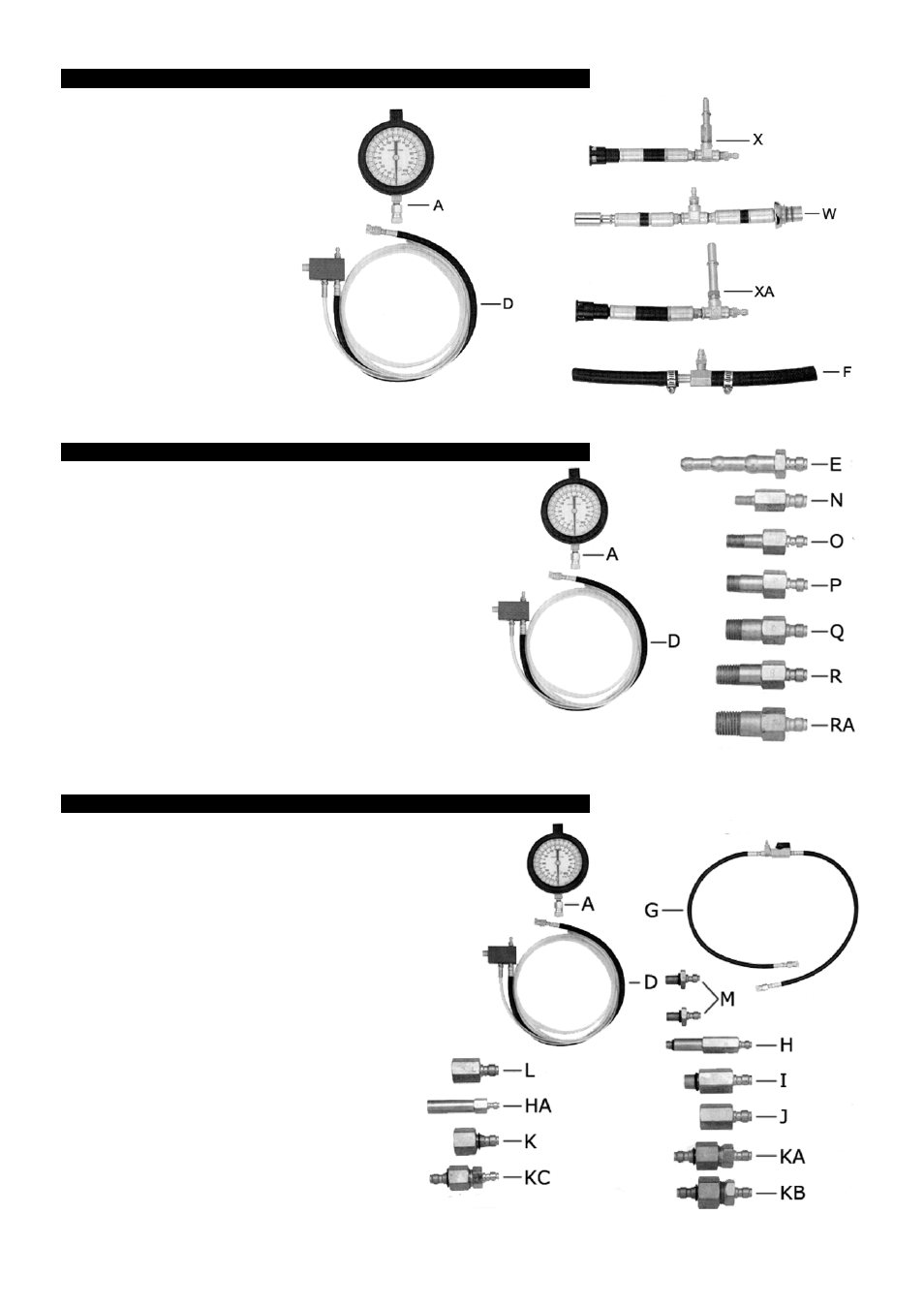

17. IN-LINE TESTING - SPECIAL CONNECTIONS
X. Hair Pin Hose 5/16" - Common
Application - Ford EFI
W. Spring Lock Hose - Common
Application - Ford EFI
XA. Hair Pin Hose 3/8" - Common
Application - GM, Chrysler
F. Double Ended Barb Fitting -
Common Application - Where 5/16-
3/8 fuel line hose can be entered for
testing - AMC, Chrysler, w/TBI, Fiat, GM
w/Bosch L-Jetronic, Jaguar, Mazda,
Nissan, Puegot & Porsche w/Bosch L-
Jetronic, Renault, Subaru, Triumph, and
VW & Volvo w/Bosch L-jetronic.
18. END OF LINE, BANJO-FUEL BOLT ADAPTORS
19. IN-LINE TESTING CIS, CISE & K-JETRONIC
E. 1/4” x 3/8” - Single End Hose Connection
Common Applications - Older Port Systems with hose connection, and where
rubber hose fuel lines from 1/4"-3/8" can be accessed.
Fuel Bolt Common Applications - Accura, Honda, Hyundai, Mazda, Suzuki,
Toyota.
N. 6mm x 1.0 Thread
O. 8mm x 1.0 Thread
P. 10mm x 1.0 Thread
Q. 12mm x 1.25 Thread
R. 12mm x 1.5 Thread
RA. 14mm x 1.5 Thread
Common Applications - Audi, BMW, Mercedes, Puegot, Porshe,
Saab, VW, Volvo w/CIS, CISE, or K-Jetronic systems.
Always make sure that the quick couplers on all gauge, hoses, and fitting snap firmly into place with the locking sleeve in proper position.
Always make sure that the quick couplers on all gauge, hoses, and fitting snap firmly into place with the locking sleeve in proper position.
Always make sure that the quick couplers on all gauge, hoses, and fitting snap firmly into place with the locking sleeve in proper position.
