- 6 -
E

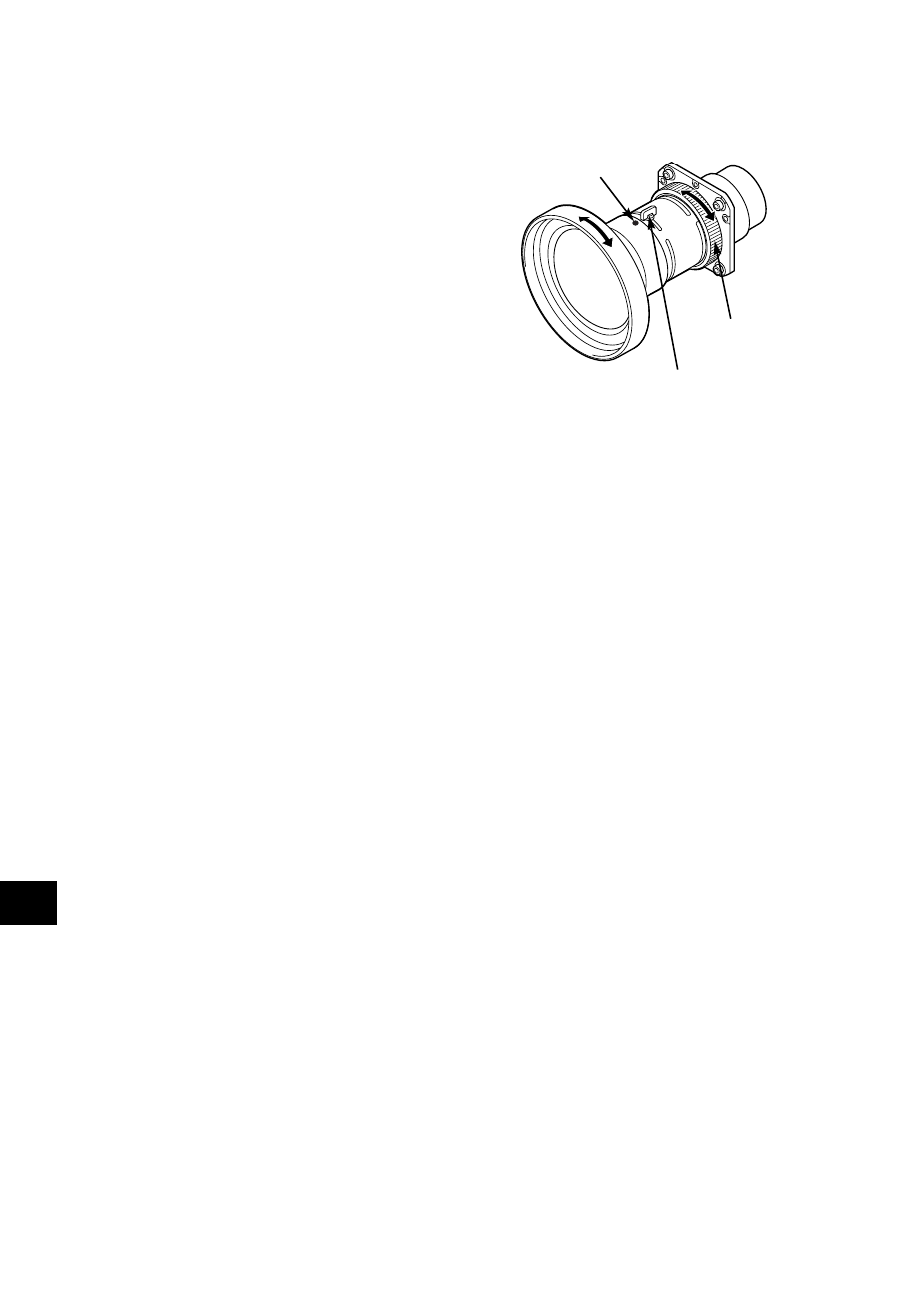

Focus Lock Screw
Focus Lock Ring
● mark (yellow)
FOCUS ADJUSTMENT (For Model LNS-W03)
Set up the projector and project image on the screen.
1. Loosen the Focus Lock Screw on the projection
lens.
2. Rotate the projection lens to obtain proper focus
on center area of the screen.
When the distance of the screen and lens is 1 meter,
set
● mark (yellow) of the lens on Focus Lock Screw
position.
3. Lock the Focus Lock Screw securely.
When proper focus is not observed at outer area of
the screen, proceed following adjustments.
4. Loosen the Focus Lock Ring on the projection
lens. (Turn the Lock Ring counter-clockwise.)
5. Rotate the lens to obtain proper focus on outer
area of the screen.
6. Lock the Focus Lock Ring securely. (Turn the Lock
Ring to clockwise.)
If proper focus is not observed over the entire screen,
repeat above adjustments 1~ 6.
