Eiki LC-XT9 - Manual (Page 16)

16
CONNECTING PROJECTOR

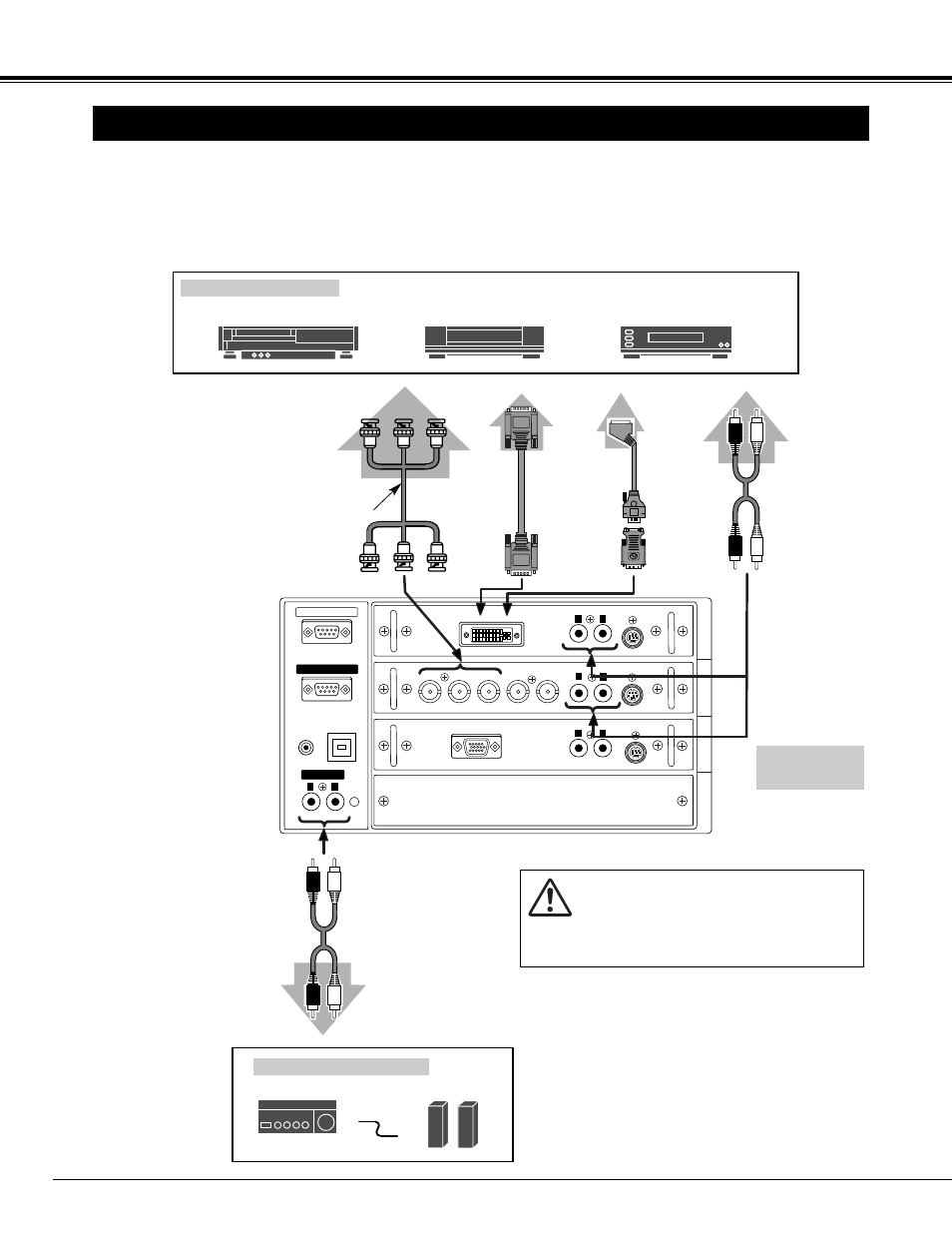

CONNECTING TO VIDEO EQUIPMENT
ANALOG RGB
R/Pr G/Y B/Pb H/HV V
CONTROL PORT
DVI
INPUT 1
R/C JACK USB
RESET
(MONO)
(MONO)
(MONO)
(MONO)
CONTROL PORT
AUDIO
CONTROL PORT
INPUT 2
INPUT 3
INPUT 4
AUDIO
AUDIO
SERIAL PORT IN
SERIAL PORT OUT
AUDIO OUT
R L
R L
R
R
L
L
Video Source (example)
Video Cassette Recorder Video Disc Player
RGB Scart
21-pin Output
Audio Amplifier Audio Speaker (stereo)
Audio Cable
(Stereo) ✽
Audio Input
Cables used for connection
• Video Cable (BNC x 3) ✽ • DVI Cable ✽
• HDB 15 pin-Scart 21 pin Cable ✽ • DVI-VGA Adapter ✽
• Audio Cable (RCA x 2) ✽
( ✽ = Cables are not supplied with this projector.)
NOTE :
When connecting cable, power cords of both a
projector and external equipment should be
disconnected from AC outlet. Turn a projector
and peripheral equipment on before computer is
switched on.
Audio Output
Y Pb/Cb Pr/Cr
R L
External Audio Equipment
AV AUDIO IN
Pr/Cr-Y-Pb/Cb
AUDIO OUT
Component video output equipment.
(such as DVD player or
high-definition TV source.)
Component Video Output
Audio Cable
(Stereo) ✽
Video
Cable ✽
Terminals of
a Projector
Digital Output
(HDCP compatible)
DVI Cable ✽
DVI-VGA
Adapter ✽
HDB 15 pin-
SCART 21 pin
Cable
✽
DVI
