CONNECTING PROJECTOR
ANALOG RGB
R/Pr
G/Y
B/Pb
H/HV
V
CONTROL PORT
DVI
INPUT 1
R/C JACK
USB
RESET
(MONO)
(MONO)
(MONO)
(MONO)
CONTROL PORT
AUDIO
CONTROL PORT
INPUT 2
INPUT 3
INPUT 4
AUDIO
AUDIO
SERIAL PORT IN
SERIAL PORT OUT
AUDIO OUT
R
L
R
L
R
R
L
L

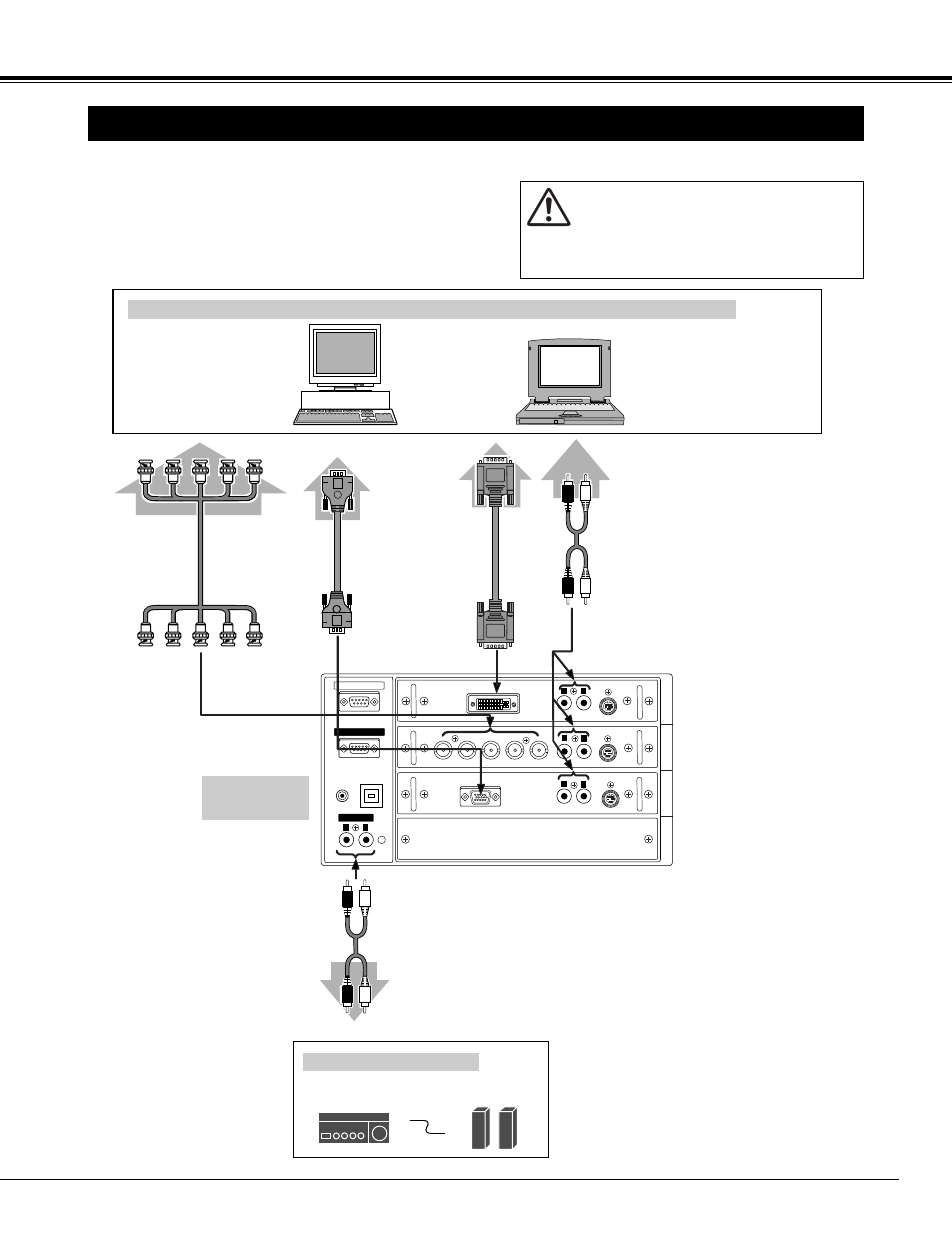

CONNECTING TO COMPUTER
IBM-compatible computers or Macintosh computers (VGA / SVGA / XGA / SXGA/WXGA/UXGA)
VGA Cable
Monitor Output
Desktop type
Laptop type
Audio Cable
(stereo)
✽
Audio Output
Audio Input
AUDIO OUT
Cables used for connection
(
✽
= Cables are not supplied with this projector.)
• VGA Cable (HDB 15 pin)
• DVI Cable
✽
• BNC Cable (BNC x 5)
✽
• Audio Cables (RCA x 2)
✽
Audio Cable
(stereo)
✽
NOTE :
When connecting cable, power cords of both a
projector and external equipment should be
disconnected from AC outlet. Turn a projector
and peripheral equipment on before computer is
switched on.
Terminals of
a Projector
Audio Amplifier
Audio Speaker
(stereo)
External Audio Equipment
Monitor Output
DVI Cable
✽
BNC Cable
✽
Monitor Output
