6 This projector has 6 Light-Block Sheets. Use 2 Light-Block Sheets corresponding with lens. (Refer to the list
below.) Use 1 Light-block Sheet for MODEL LNS-W03
Set 2 Light-Block Sheets through the lens.
Make sure the shape of the Light-Block Sheets are correct and be sure to set them as shown in the Fig. 8.
NOTE:
● Be sure to set each Light-Block Sheet as shown in Fig-8.
● Make sure the mark (TOP and BACK) on Light-Block Sheets are correct and set them properly.
Light-Block Sheets For each lens.

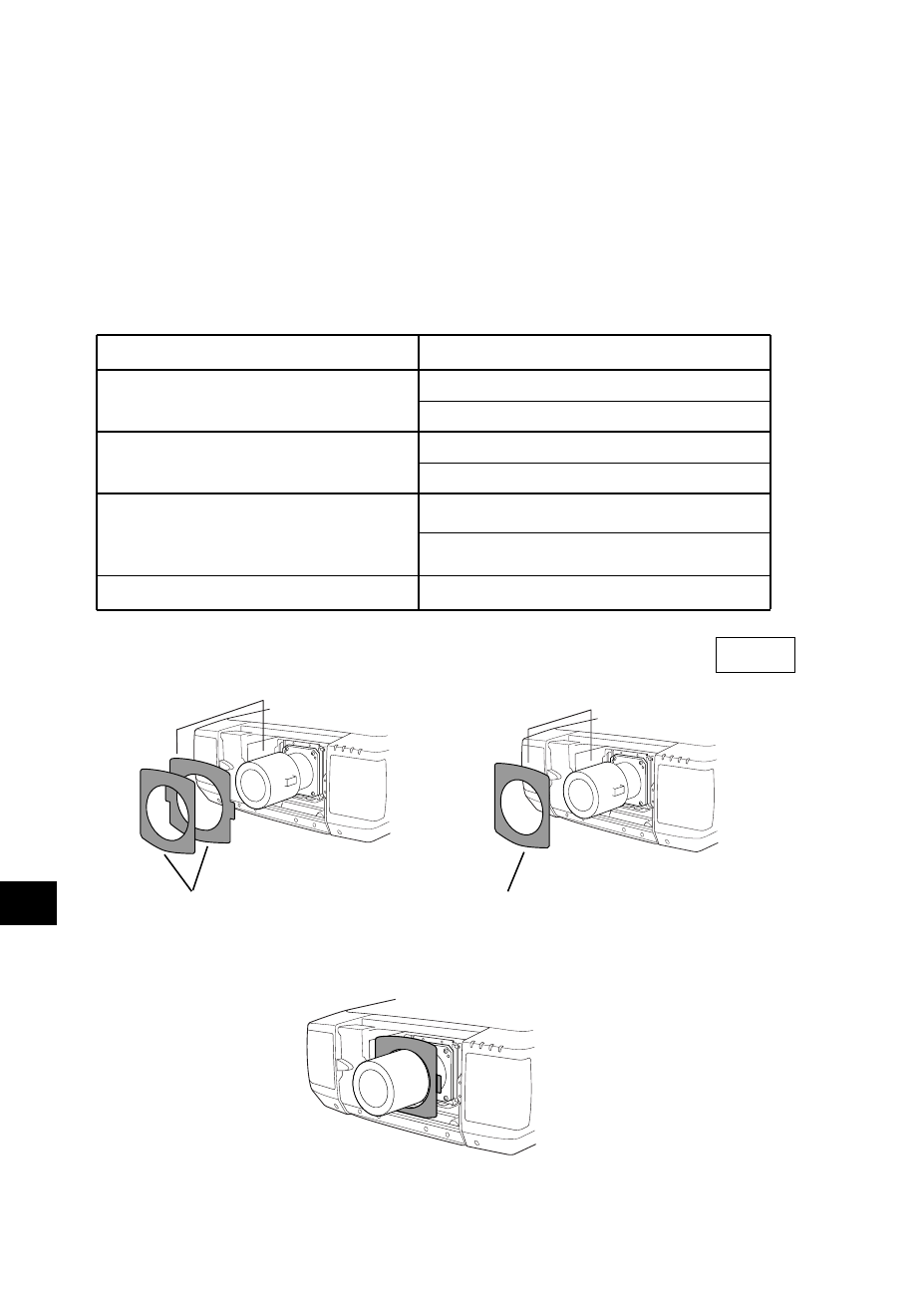

Fig-8
LIGHT BLOCK SHEETS
Make sure the sheet figures are
correct and put in proper position.
LIGHT BLOCK SHEET
Make sure the sheet figure is
correct and put in proper position.
MODEL LNS-W03
Lens Model No.
LNS-S02, LNS-S02Z
LNS-M01, LNS-T02, LNS-W02
LNS-M01Z, LNS-W02Z
LNS-W01, LNS-T01, LNS-W01Z
LNS-T01Z, LNS-S03, LNS-W04
LNS-W06
Type No. (Part No.)
LNS-W03
TYPE FA1 (910 322 7550)
TYPE FA2 (910 322 7895)
TYPE FB1 (910 322 7710)
TYPE FB2 (910 322 7352)
TYPE FC1 (910 322 8137)
TYPE FC2 (910 322 4320)
TYPE FB1 (910 322 7710)
