- 3 -
E
LENS LOCK SCREW
DRIVER
IN THE LENS
LOCATE MOTOR
ON RIGHT SIDE
LENS ATTACHMENT
Part No. (910 275 6020)
CONNECTOR
Fig-4
LENS MOTOR LEAD
Fig-5
LENS LOCK
LEVER
LENS
ATTACHMENT
SOCKET
Lens attachments For each lens.
LNS-W01, LNS-W01Z, LNS-W02Z,
LNS-W03, LNS-T01, LNS-T01Z,
LNS-T02, LNS-T03, LNS-S02,
LNS-S02Z, LNS-S03, LNS-M01Z,
LNS-W04, LNS-W06 Lens Attachment 01
POA-LNA-01
(910 303 8743)
LNS-W02, LNS-M01 Lens Attachment 02
POA-LNA-02
(910 304 6229)
Lens Model No.
LENS ATTACHMENT
TYPE No. (PART No.)

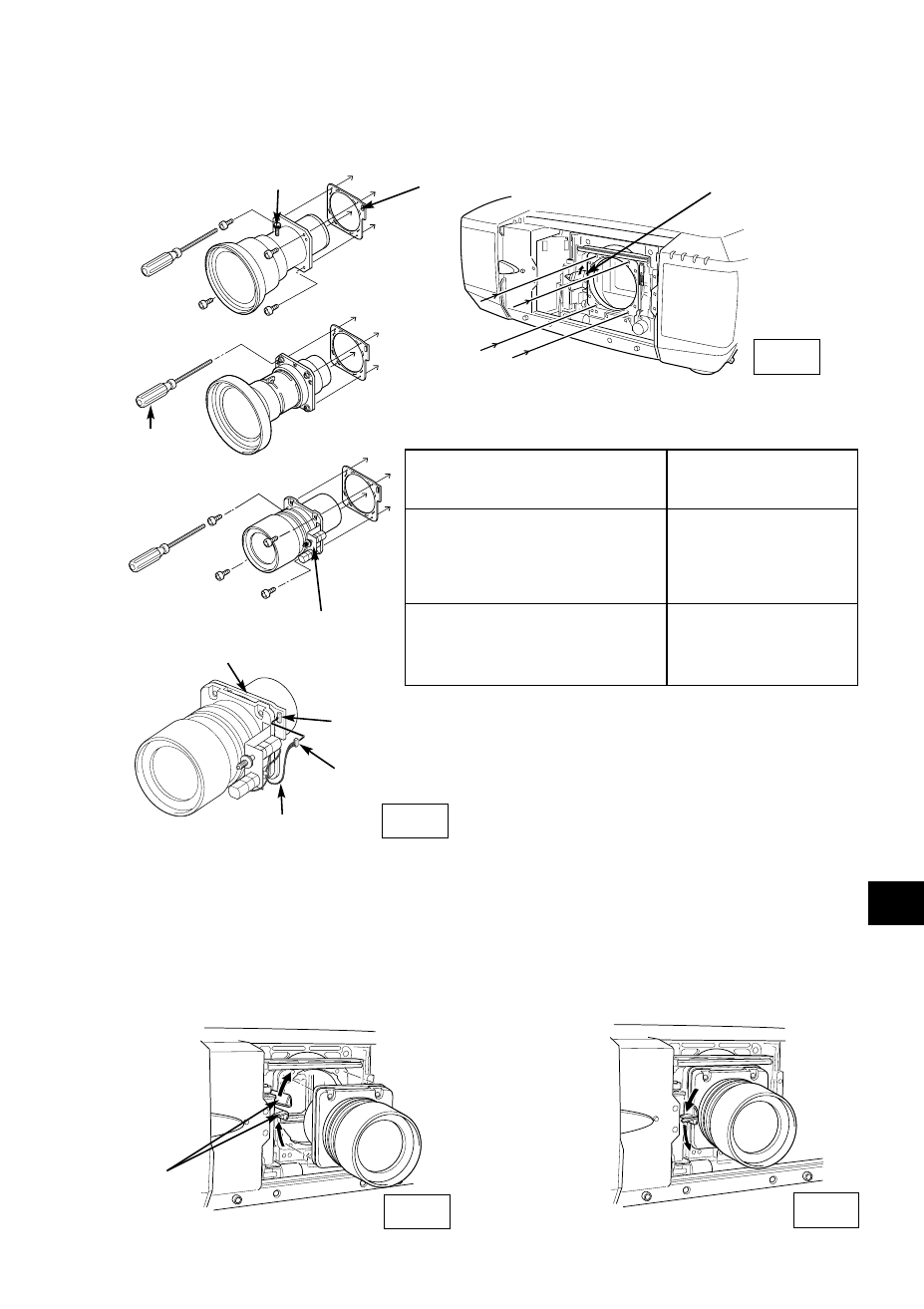

4 Remove Lens Cap on the rear (mounting side) of Projection Lens and mount Lens on the lens
Attachment with 4 Screws. (Use screws attached on lens.)
Connect the Lens Motor Lead connector to the socket on the right-top of the lens attachment.
(Motor Driven Lens only.) See Fig. 5.
Fig-6 Fig-7
LENS LOCK RELEASE LENS LOCK
5 Grasp the Lens Lock Lever and turn it fully upward. (See Fig. 6.)
Install the Lens into the projector. Grasp the Lens Lock Lever and turn the Lever fully downward until
lever is Locked (clicked position) properly. (See Fig. 7.)
When installing the Motor Driven Lens, be sure to mount Lens Motor on right side. (See Fig. 4.)
After installing the lens, make sure the Lens is not loose and properly installed.
NOTE: Please go while supporting the lens when you detach the lens for safety.
Grasp the Lens
Lock Lever and
pulling upward.
Grasp (unlock)
Lens Lock Lever
and fully pulled
downward until it is
locked (clicked).
Lens Lock
Lever
