System 5-B Digital Audio Mixing System Operation Manual
GPI/O Event System
150
The goal is to enable the following functionality:
•
When the video switcher takes camera 1, channel 1’s audio is on while chan-
nels 2–4 are muted.
•
When the video switcher takes camera 2, channel 2’s audio is on while chan-
nels 1, 3, and 4 are muted.
•
When the video switcher takes camera 3, channel 3’s audio is on while chan-
nels 1, 2, and 4 are muted.
•
When the video switcher takes camera 4, channel 4’s audio is on while chan-
nels 1–3 are muted.
The following steps explain how to turn channel 1 on and mute the other channels when
the video switcher takes camera 1.
1. Choose a tally input to use on the GP 132.
For example, tally input 1 uses pins 1 and 14 on connector RT1 of the GP 132.
2. In Events page of eMix, click
and select OR as the logic operator.
3. From the Inputs section, click
The Add Input Event dialog opens.

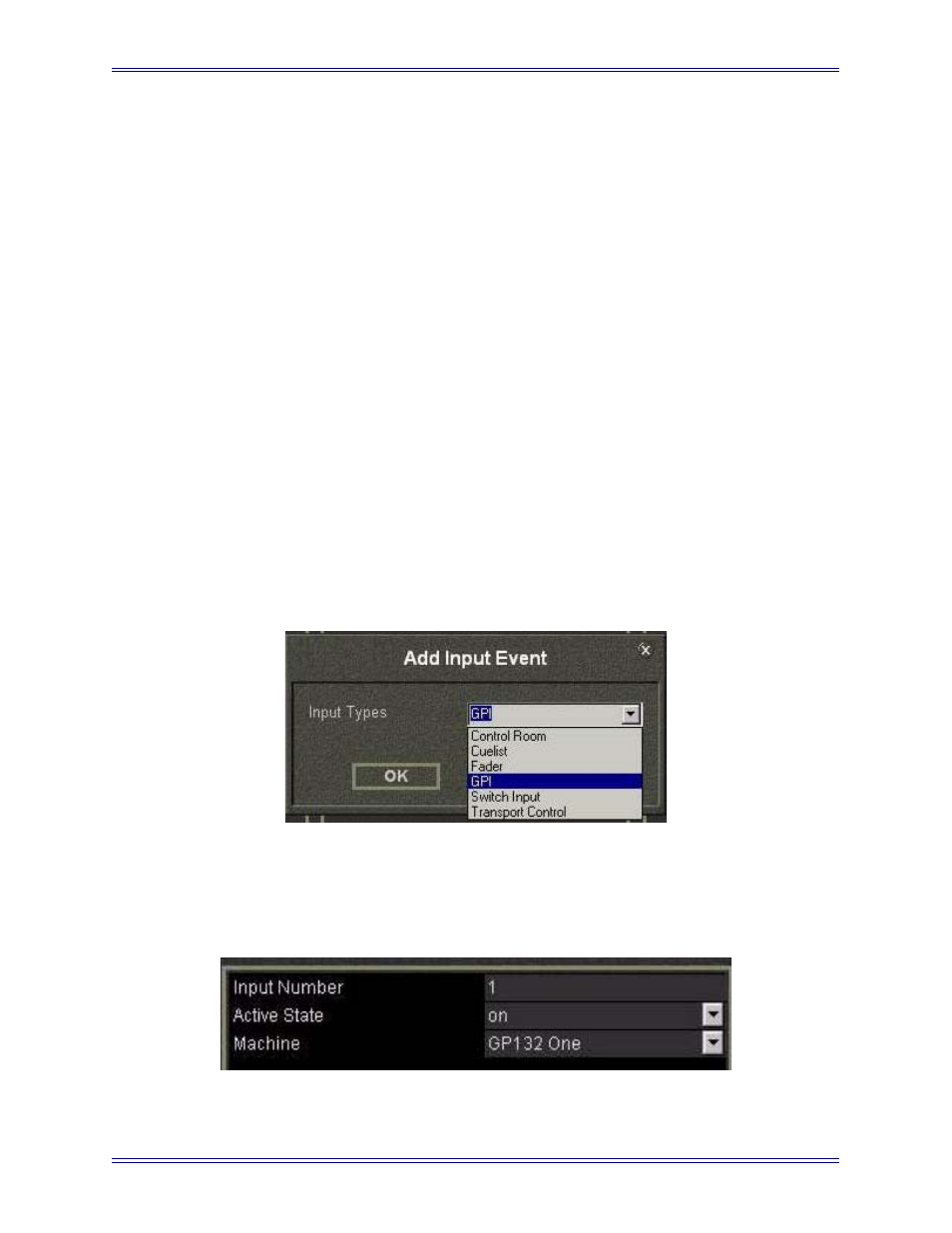

Figure 11-4 Add Input Event Dialog
4. Select GPI from the Input Types dropdown menu.
5. Configure the lower area of the Input section to the following settings:
Figure 11-5 Input Event Properties
