System 5-B Digital Audio Mixing System Operation Manual CM401 Master Section
59

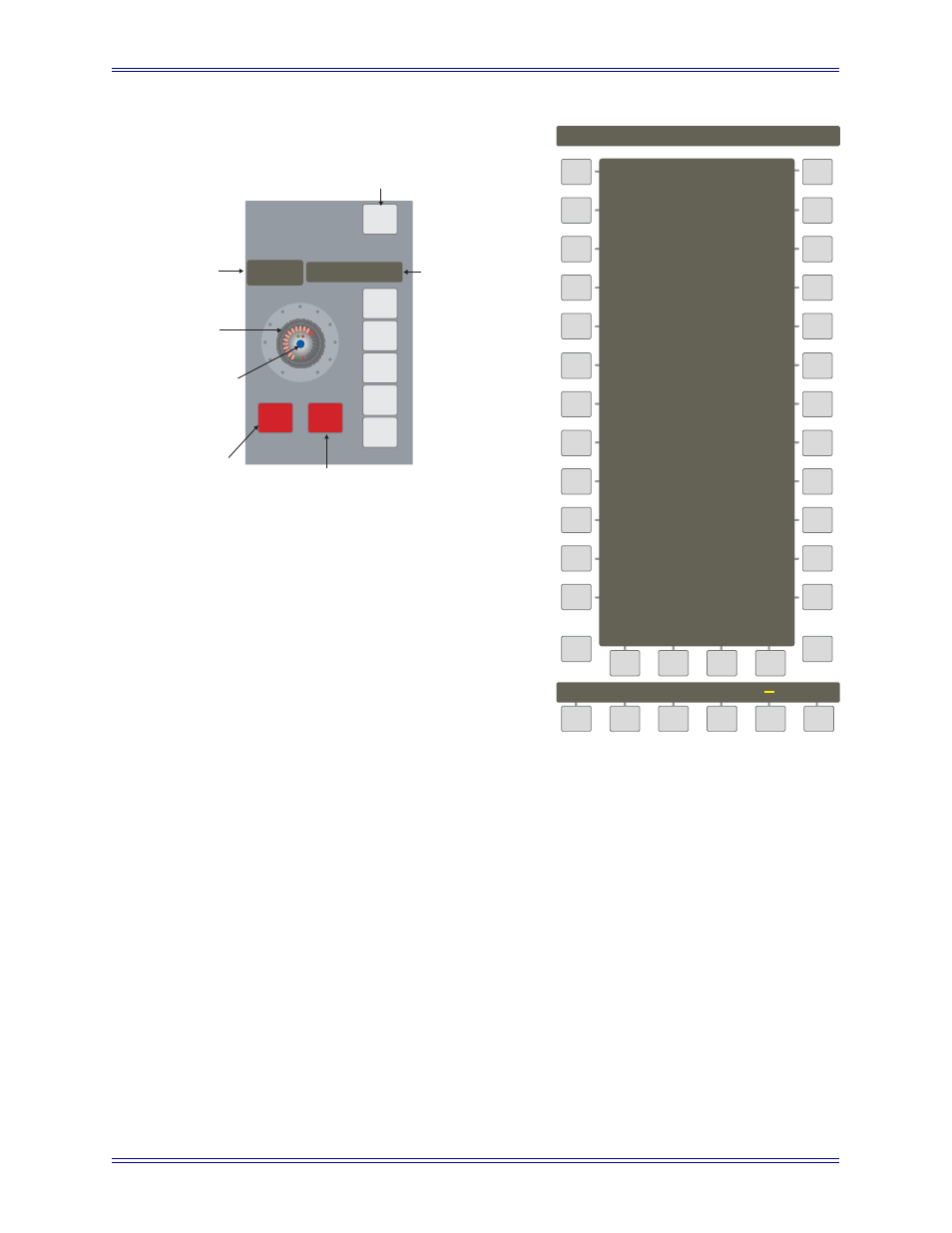

Figure 5-4 CR Output controls and Control Room Output Panel
Dim and Cut
The Dim level can be set in the Control Room Output Panel by pressing the Dim key
on the panel viewer and using the +/- soft keys, or the output level knob. to adjust the
level. This is the reduction in level (dB) that occurs when the Dim switch is active.
The Control Room Monitors may be switched off/on by pressing the output level
knob’s center switch or the Cut switch.
Monitors A–D may be switched off/on by pressing the output level knob’s center
switch; they are off when their output level knob’s center LED is not lit.
Y X L C R Sl Sr B
LR phase
Control Room Alt2
Spkrs
Alt1
Spkrs
Main
Spkrs
CR
Source
Dim Cut
CR
Output
Mix 1
0 85
Output
Level (dB)
Dim Switch
drops the level by
the amount indicated
in CR Output Panel
Cut Switch turns
CR Output On/Off
Press to display
Control Room
Output Panel
CR Source
Output
Level Knob
Center Switch
turns CR Output
On/Off
CR
Insert
Main
Panel
Info
Control Room Output
Dim - 10
R On
Sl On
Sr On
X On
Y On
Mono
Stereo
LCRS
5.1
7.1
+
LR Phase
L On
C On
Bm On
