S5U1C63000H2 MANUAL EPSON 1
(S1C63 FAMILY IN-CIRCUIT EMULATOR)
CHAPTER 1: INTRODUCTION
CHAPTER
1 I
NTRODUCTION
S5U1C63000H2 (In-Circuit Emulator for S1C63 Family) is a hardware tool to effectively develop software
for the S1C63 Family, 4-bit single chip microcomputers. In combination with a peripheral circuit board
(S5U1C63xxxP), it provides the development environment of the software using a personal computer as a
host computer, which requires Windows.
This manual describes the operation of the S5U1C63000H2 hardware and connections of the
S5U1C63000H2 system. Refer to "S5U1C63000A Manual" for use of the debugging commands.

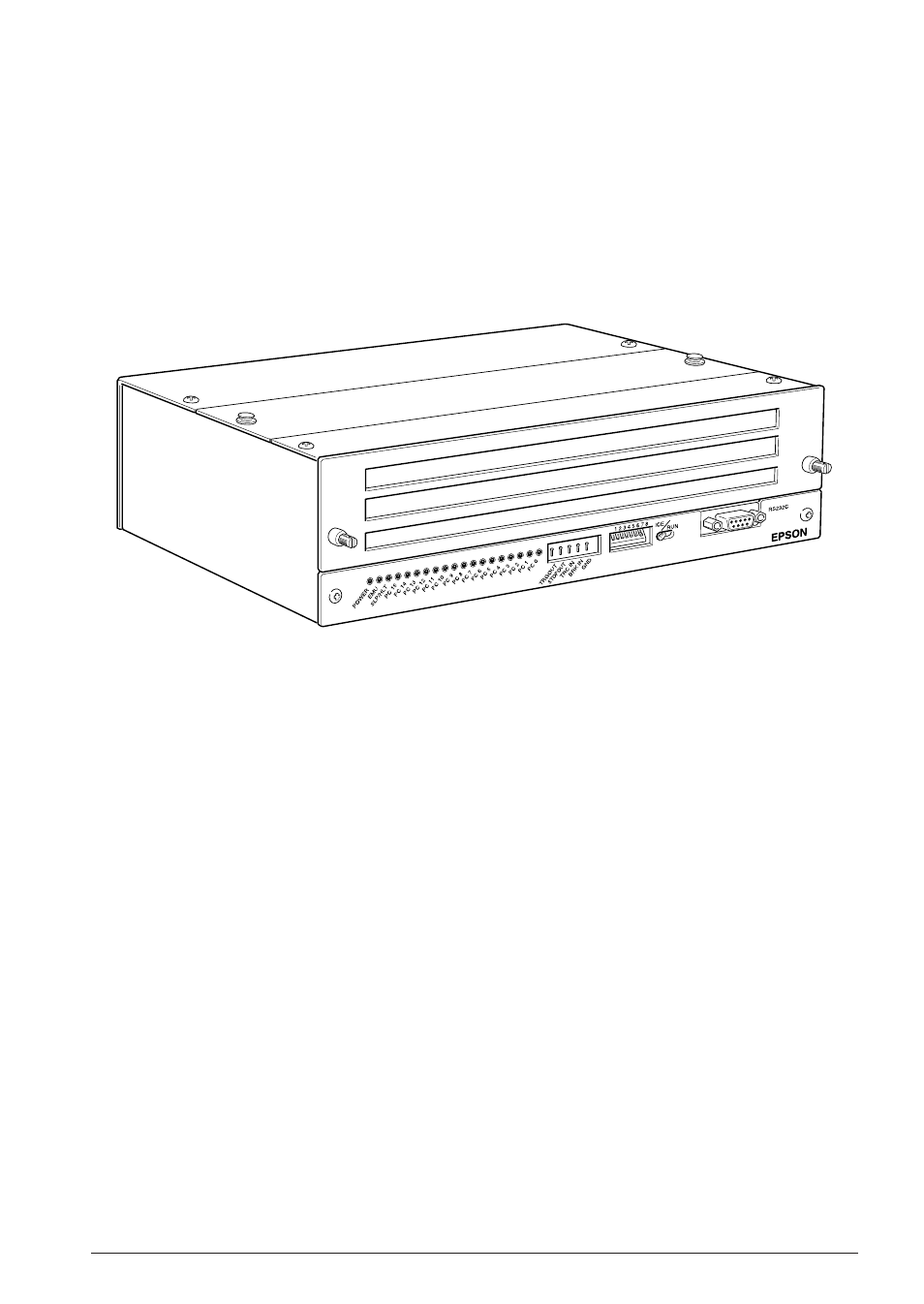

Figure 1.1 shows the external view of the S5U1C63000H2.
S5U1C63000H2
Fig. 1.1 External view of S5U1C63000H2
