22 EPSON S5U1C63000H2 MANUAL
(S1C63 FAMILY IN-CIRCUIT EMULATOR)
CHAPTER 9: SPECIFICATIONS OF LCD BOARD
CHAPTER
9 S
PECIFICATIONS OF
LCD B
OARD
9.1 Introduction
9.1.1 General description of LCD board
The LCD board provides on a board the peripheral circuits (LCD driver) of the S1C63 Family microcom-
puters other than the core CPU. The board can work as an emulator corresponding to each model of the
S1C63 Family by installing into the S5U1C63000H2 along with a S1C63 Family peripheral circuit board
(S5U1C63xxxP). This board may be set for each model by loading mask option data (generated by the
function option generator) using the ICE command.

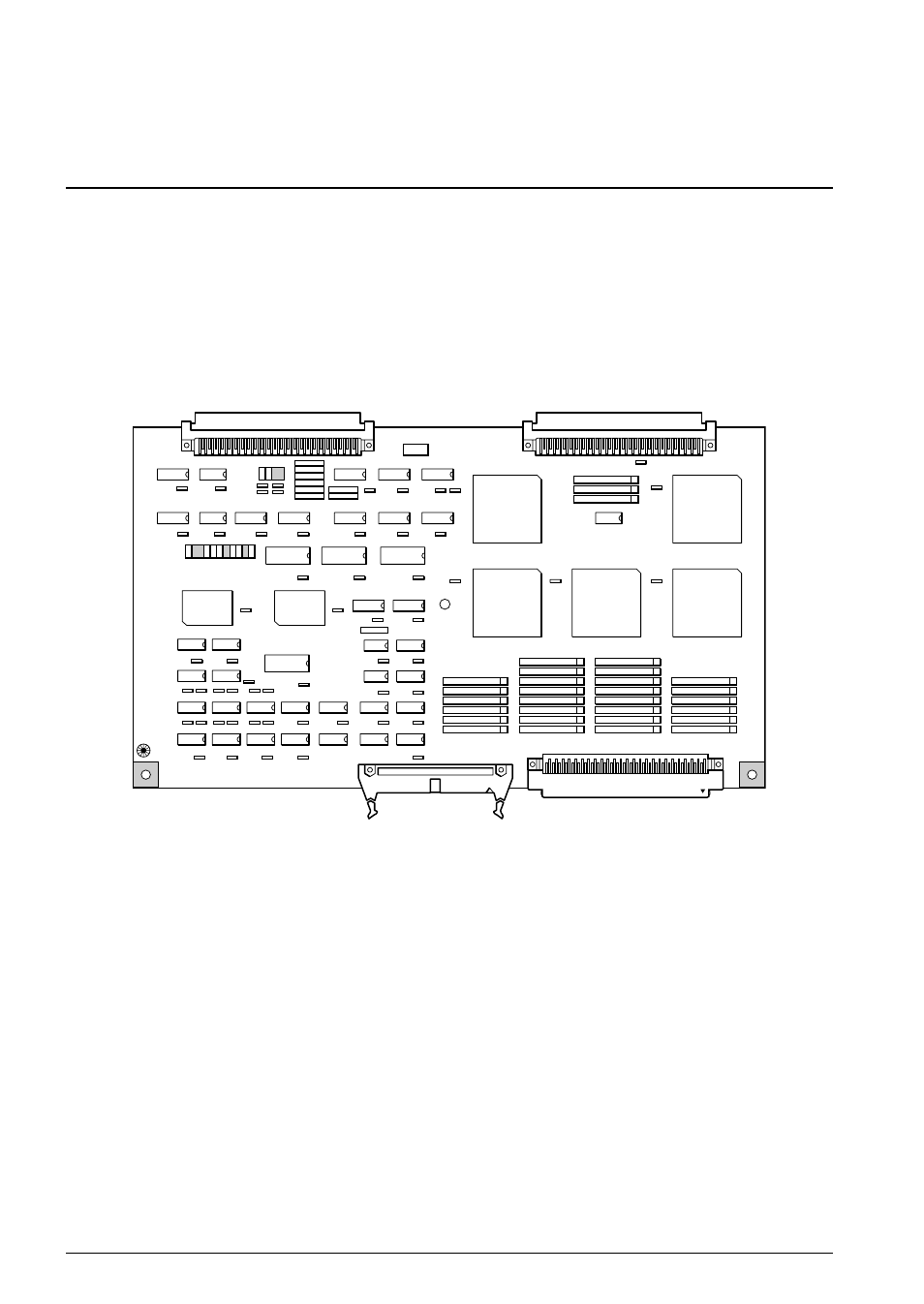

9.1.2 External view of LCD board
LCD6300 REV1
SEIKO EPSON CORP.
Fig. 9.1.2.1 External view of LCD board
