S5U1C63000H2 MANUAL EPSON 7
(S1C63 FAMILY IN-CIRCUIT EMULATOR)
CHAPTER 3: CONNECTION
CHAPTER
3 C
ONNECTION
This chapter describes the connection between the S5U1C63000H2 and a host computer and the Periph-
eral circuit board (S5U1C63xxxP).
3.1 AC Cable
The S5U1C63000H2 package includes a dedicated AC cable (3 poles type) and an AC adapter. The AC
cable is connected into the AC inlet on the AC adapter. The common ground frame line should be used
for connecting the S5U1C63000H2 and the host computer as shown in Figure 3.1.1.
Host machine S5U1C63000H2
AC line
Frame ground line
AC adapter dedicated for S5U1C63000H2
AC inlet
AC cable
DC cable
DCIN (DC 5 V)
terminal

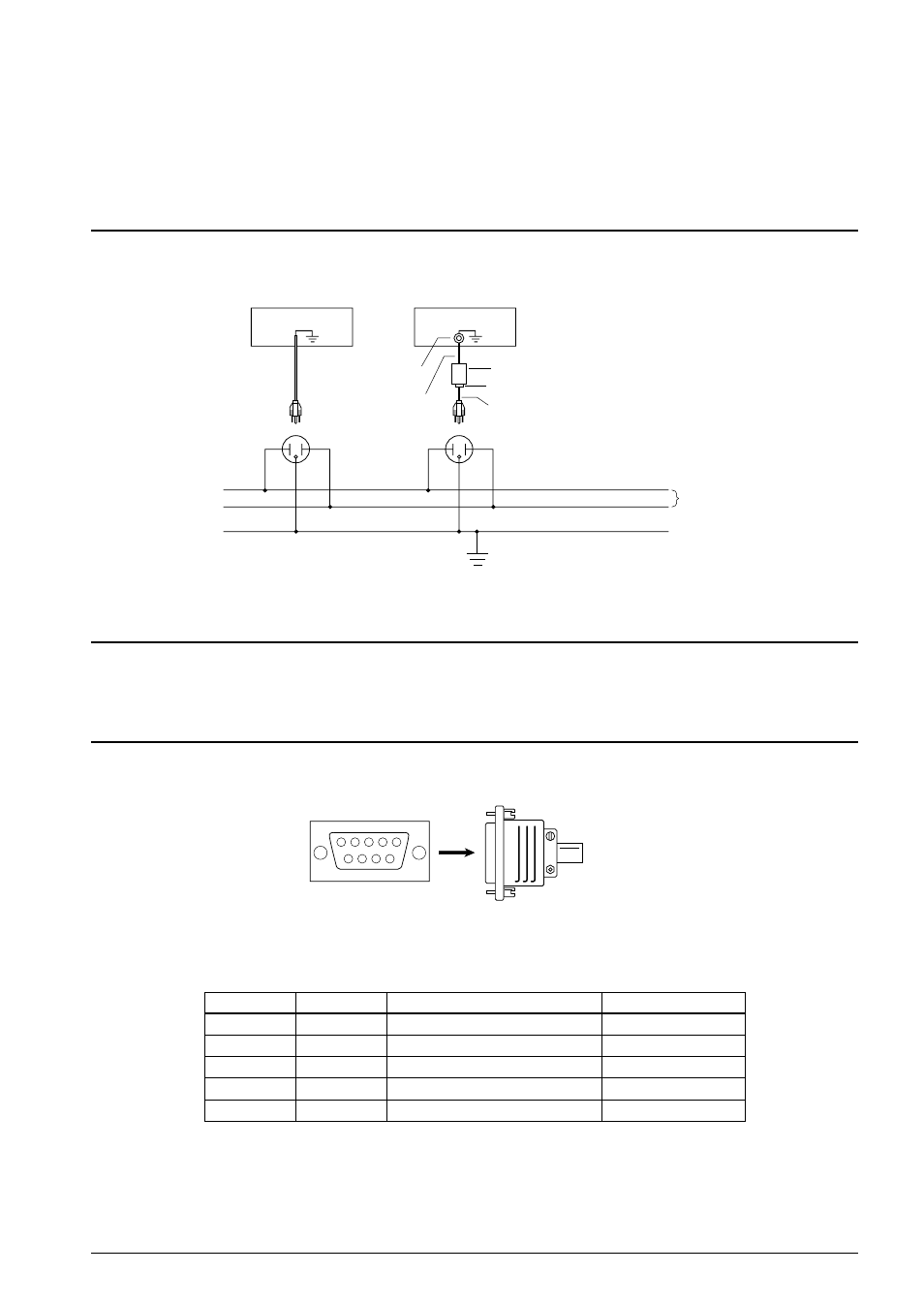

Fig. 3.1.1 Connection of AC line
3.2 DC Cable
The DC output cable of the AC adapter is connected to the DCIN (DC 5 V input) terminal as shown in
Figure 3.1.1.
3.3 Connection with Host Personal Computer
Figure 3.3.1 shows the external view of the RS232C cable connector and Table 3.3.1 shows the signal
specifications of the RS232C cable.
A
Viewed from side A
2 5 1
9 6
9-pin/9-pin RS232C cable connector
Fig. 3.3.1 External view of the RS232C cable connector
Table 3.3.1 Signal specifications
Terminal No.
3
2
7
8
5
Remarks
Normally used as ON
Normally used as ON
Signal name
TXD
RXD
RTS
CTS
SG
Signal meaning
Transmit data from HOST to ICE
Receive data from ICE to HOST
Request to send from HOST
Clear to send from ICE
Signal ground
Connect S5U1C63000H2 to the personal computer using the supplied RS232C cable and tighten the
connector screws to fix the cable.
