D
E
F

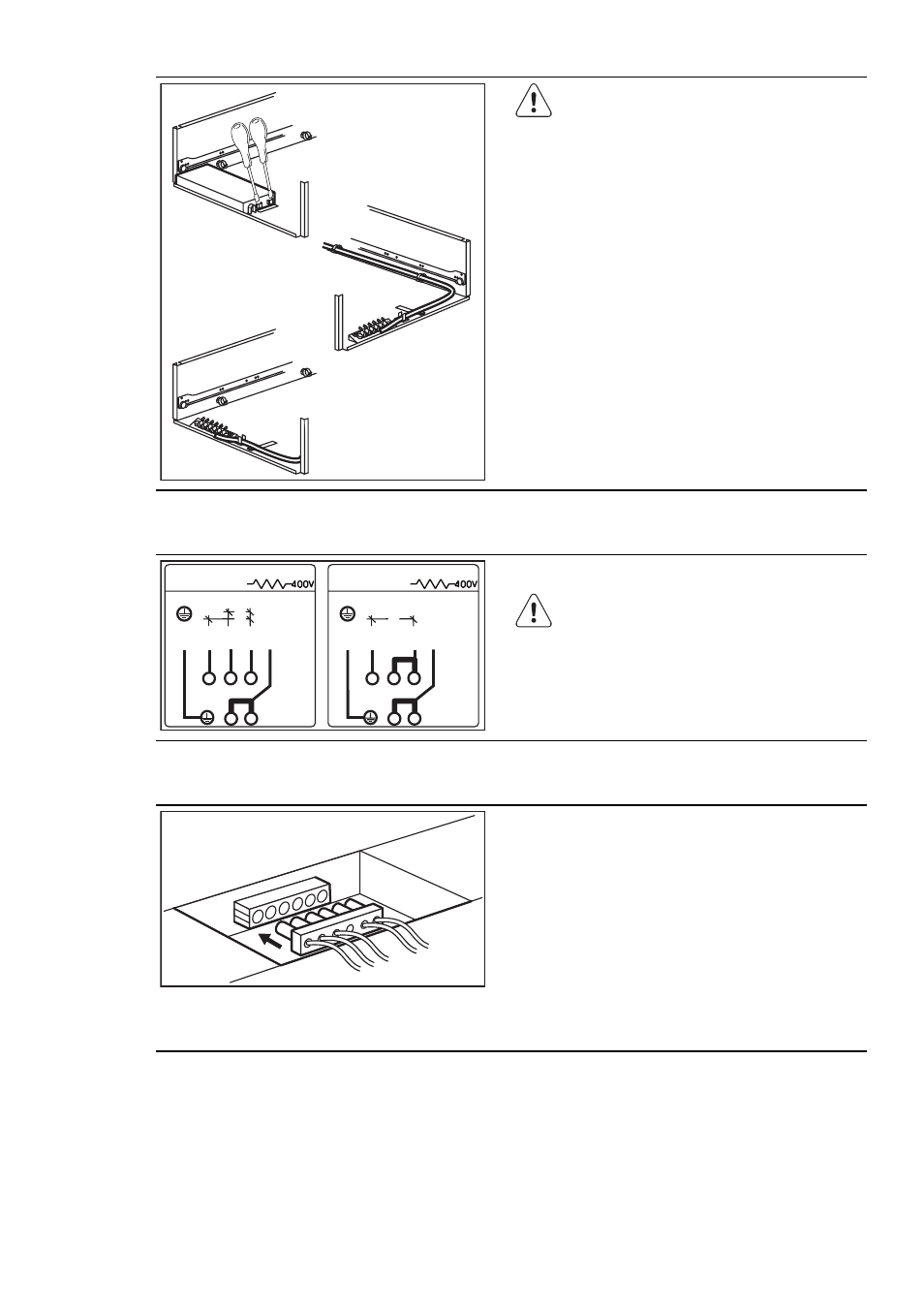

Only a qualified person can con-
nect the appliance to the electrici-
ty supply.
1. Open the mains terminal cover (D).
2. Put the connection cable into the
supplied rings (E). This is to prevent
the cable from rubbing against the
drawer. The connection cable is on
the housing side.
3. Install the cable grip (F).
4. Connect the terminal as in the illustra-
tion.
5. Put the cable into the strain relief
clamp.
6. Close the mains terminal cover.
13.4 Connection diagram 400 V
L2 L3
400V
L1 PE L2
400V
L1 PE
1 2 3
4 5
1 2 3
4 5
400V 2N~ 400V 3N~
N N
Phase definitions: L1, L2, L3 (or R, S,T)
WARNING!
If service is required always dis-
connect the appliance from the
power supply.
13.5 Electrical connection with the hob
You can connect the oven to an inde-
pendent hob from the current range of
Electrolux and AEG hobs. You can pur-
chase the necessary connection cable
separately:
• AK - EB/GKTC (S) 1 m for ceramic
hobs.
• AK - EB/GKTCi (S) 1 m for induction
hobs.
The hob connection socket is at the top
of the oven cabinet.
