A 592
N 560-568
A 567
N min. 550
A A
115
20
ca.50
442
B
180
A 595
N 600
A = appliance
N = recess
WARNING!
Installation into flammable material
must agree with NIN SEV 1000
(Association of Cantonal Fire In-
surers) fire protection guidelines
and regulations.
CAUTION!
Make sure the cable is free when
you move the appliance.

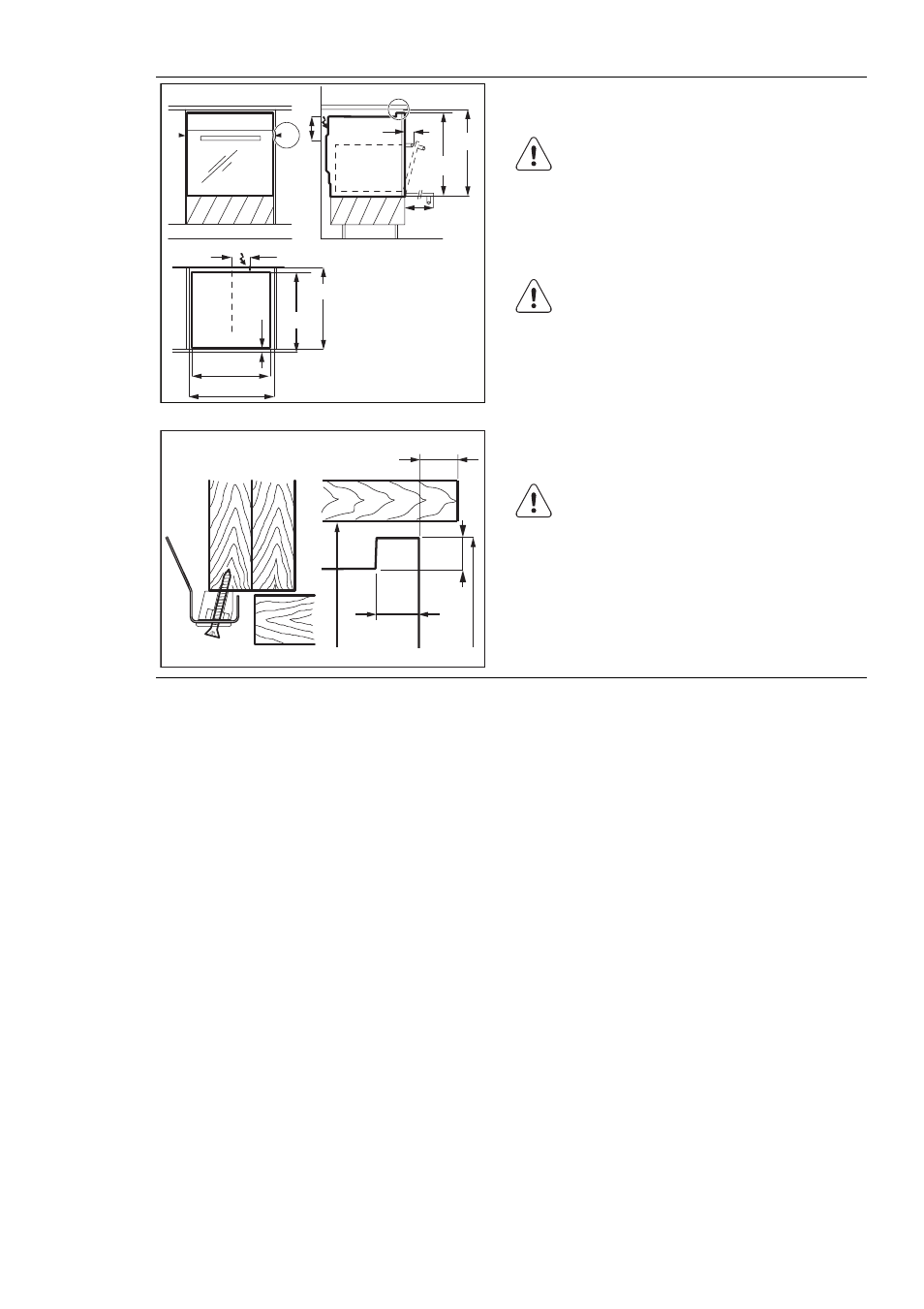

1. Push the cooker into the recess so
that it is flush with the surrounding
units.
A B
min. 20
10
20
A
2. Use at least 2 screws to fix the appli-
ance on both sides (Detail A).
WARNING!
When installing next to a wood-fu-
elled boiler, a heatproof and heat-
insulating plate must be mounted
at the height of the appliance and
at least 30 cm deep.
13.3 Electrical connection
Use a power cable of H05VV-F or higher.
Connect the appliance to a socket supply
line. If there is no socket supply line, the
electrical installation must have an isola-
tion device which lets you disconnect the
appliance from the power supply. The iso-
lation device must have a contact opening
width of minimum 3 mm (in reference to
NIN SEV 1000). The customer must have
a socket for the electrical connection that
is accessible and outside the coordination
room. The length of the connection cable
must be approximately 120 cm with lines
connected directly to the power supply.
ENGLISH 23
