Using LANVIEW
4-2 Troubleshooting

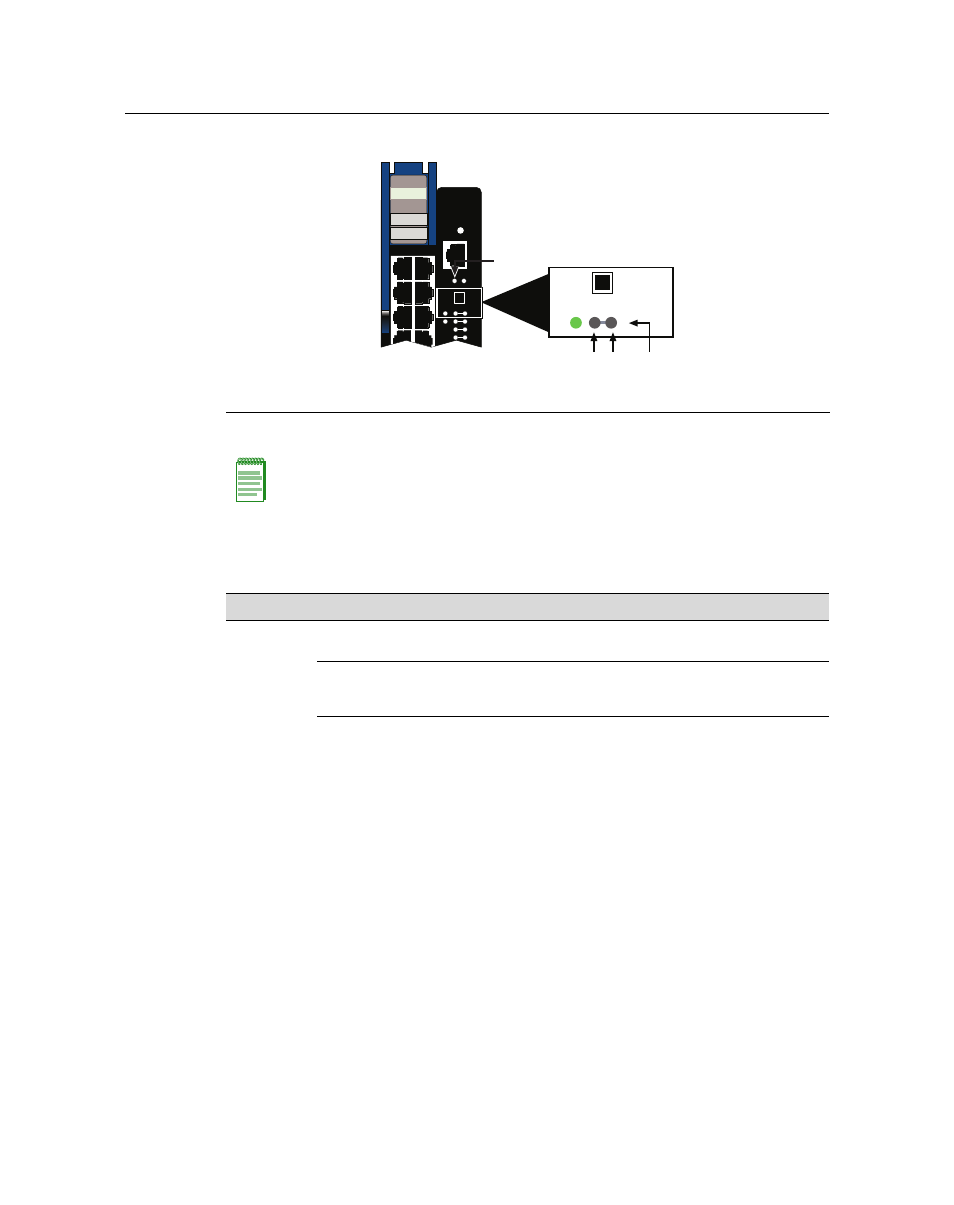

Figure 4-1 LANVIEW LEDs
Table 4‐1 describes the LED indications and provides recommended actions as appropriate.
1 MGMT LED 2 Group 1, Port 1 LEDs
The terms used in Table 4-1 indicate the following:
• Flashing indicates an LED is flashing randomly.
• Blinking indicates an LED is flashing at a steady rate (approximately 50% on, 50% off).
• Solid indicates a steady LED light. No pulsing.
• Alternating indicates an LED is flashing in a steady rate other than 50% on, 50% off.
Table 4-1 LANVIEW LEDs
LED Color State Recommended Action
MGMT None Off. This module is NOT the
Management Module. None.
Green Solid. This module is the
designated Management
Module. None.
Amber Flashing. This is a temporary
indication that the module is
saving data. None.
COM
OFFLINE/
RESET
MGMT CPU
1
2
GROUP
SELECT
1X
G
R
O
U
P
1
GROUP
1
2
3
4
2G4082-25
Gb ENET
GROUP
GROUP
SELECT
RX TX Б
1 1
А
