Hardware Setup
Chapter 4
Embedded and Industrial Computing

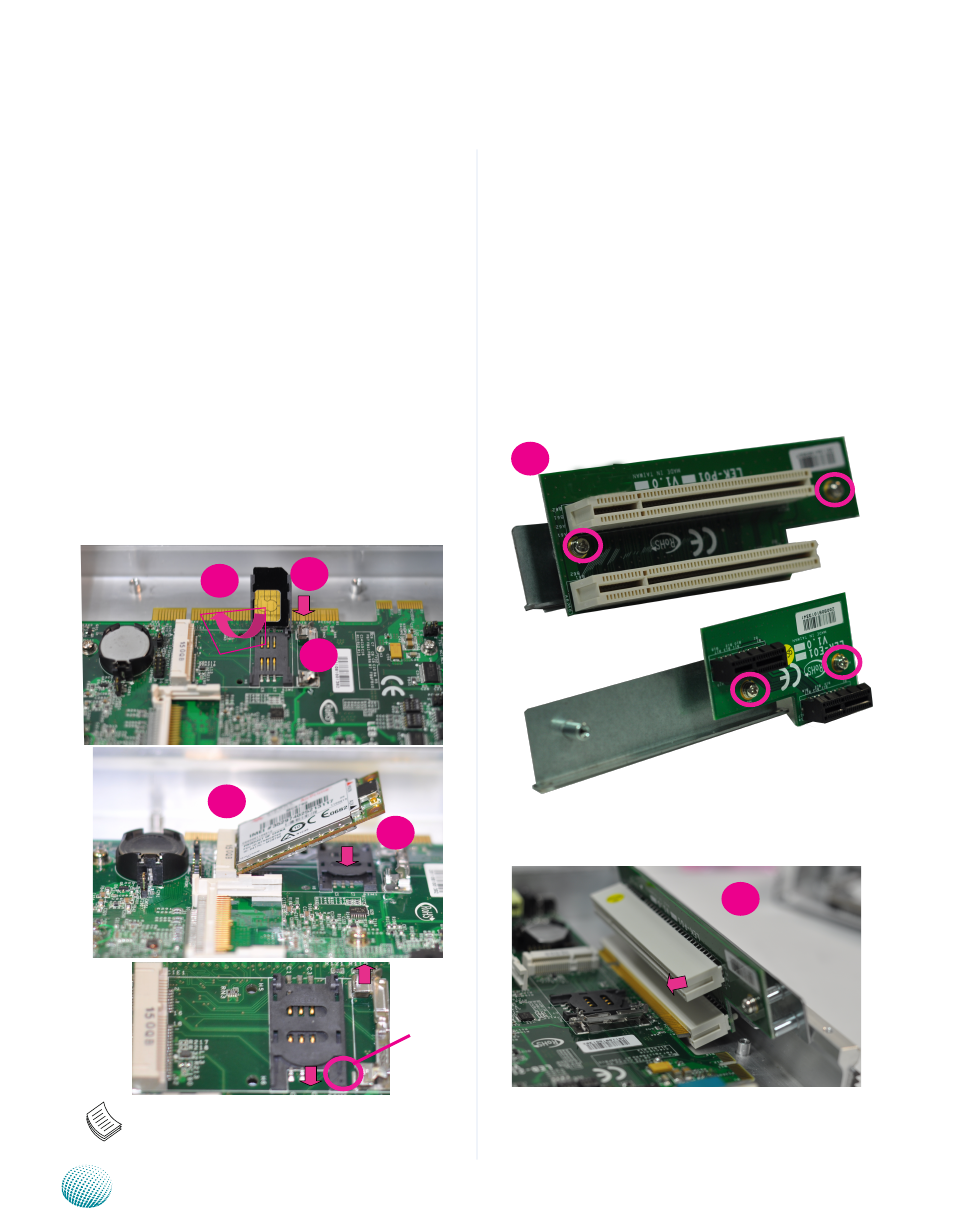

PCI/PCIe Riser Card Installation
The system can accommodate one PCI or PCIe expansion
(only one of them at a time) module. In order the install
the PCI or PCIe expansion module, a low-profile riser card
has to be installed first. Follow these steps to install the
riser card:
Fix the riser card on the bracket with 2 screws. 1.
Install the riser card on the system by connecting the 2.
connectors with the system’s PCI/PCIE connector. Due
to space constraint, align the card with the connector
with a 45 degree angle and gradually push the card
down while inserting the card.
Fix the riser card on the board.
3.
3G SIM Card Installation
Unlink the SIM card reader first by sliding it outward. 1.
Flip the SIM card reader diagonally. 2.
Align the cut corner of the SIM card with the cut corner 3.
of SIM card reader. Make sure the ICs will be in contact
with the SIM card reader.
Insert the
4. SIM card into the reader and close the tray.
You should feel a click when the SIM card is locked
securely in the SIM card reader.
Wireless Module Installation
Align the wireless module’s cutout with the Mini-PCIe 1.
slot notch.
Insert the wireless module into the connector
2.
diagonally.
Push the other end of the wireless module to be
3.
tightened with the latch.
Note: To remove the SIM card, push the card
outward to unlock it.
1
2
Lock
Open
2
3
4
2
3
Cut
Corner
PCI
PCIe
PCI
