Digital Input/Output Control
Appendix B
Embedded and Industrial Computing
Appendix B:
Digital Input/Output
The Digitanl I/O on the rear panel is designed to provide
the input and output operations for the system. For sample
DIO code, see SuperIO folder under LVC-5000 Utility on the
Driver and Manual CD. Make sure that you have installed
the Lanner GPIO driver as instructed below.
Driver Installation
Before you could access or control the operation of the
G-sensor, GPS and Digital I/O functions, install the the L_
IO driver which is the library and driver needed for Lanner
General Purpose Input/Output interface or functions.

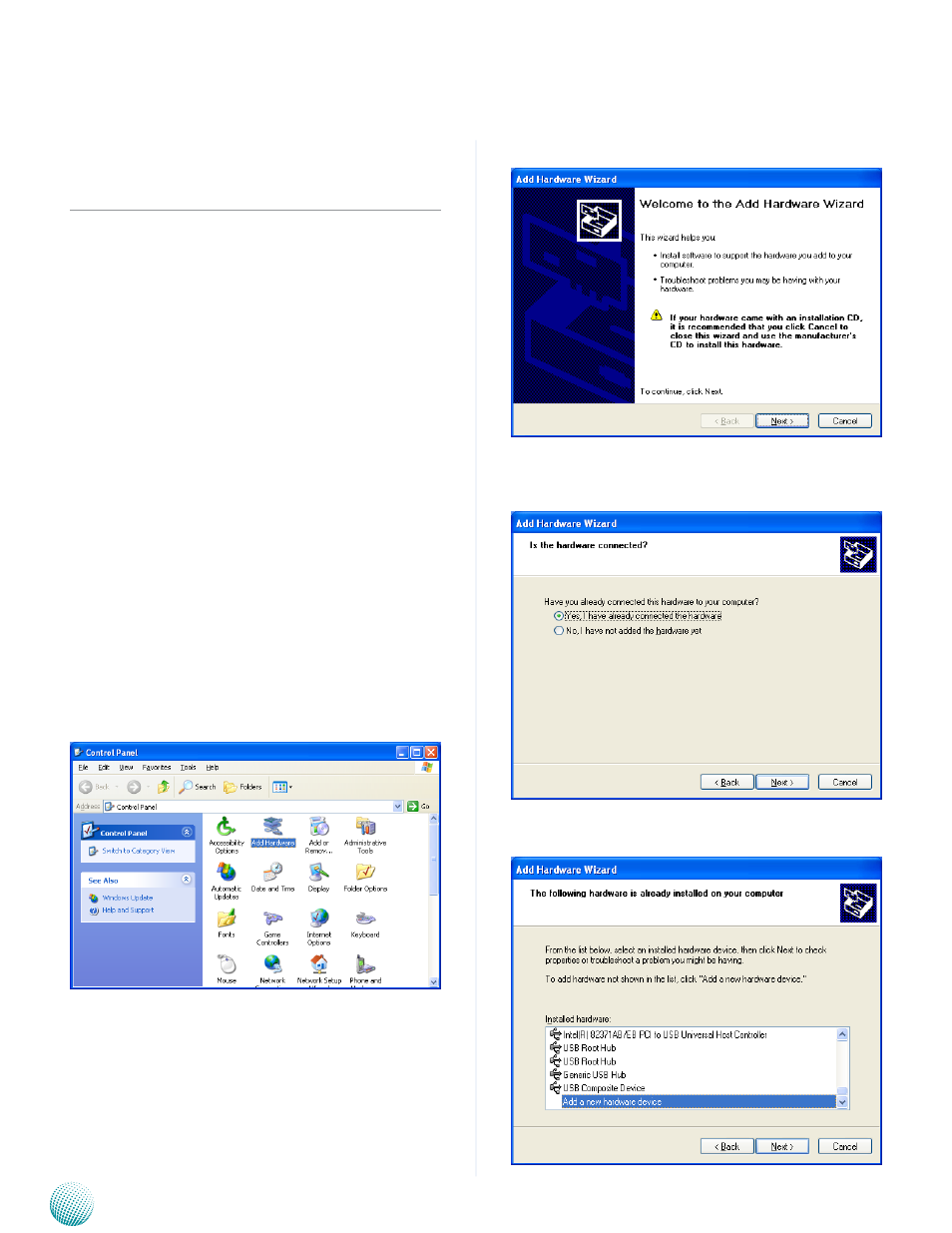

To install the L_IO driver:
Restart the computer, and then log on with 1.
Administrator privileges.
Insert the Drivers and User’s Manual CD to the USB-
2.
optical drive.
Browse the contents of the support CD to locate the
3.
file in the LIO folder.
From the control panel, click the ADD Hardware
4.
program
Select Next to proceed 5.
Answer “Yes” to the question and select Next to 6.
proceed.
Select Add a new hardware device. 7.
