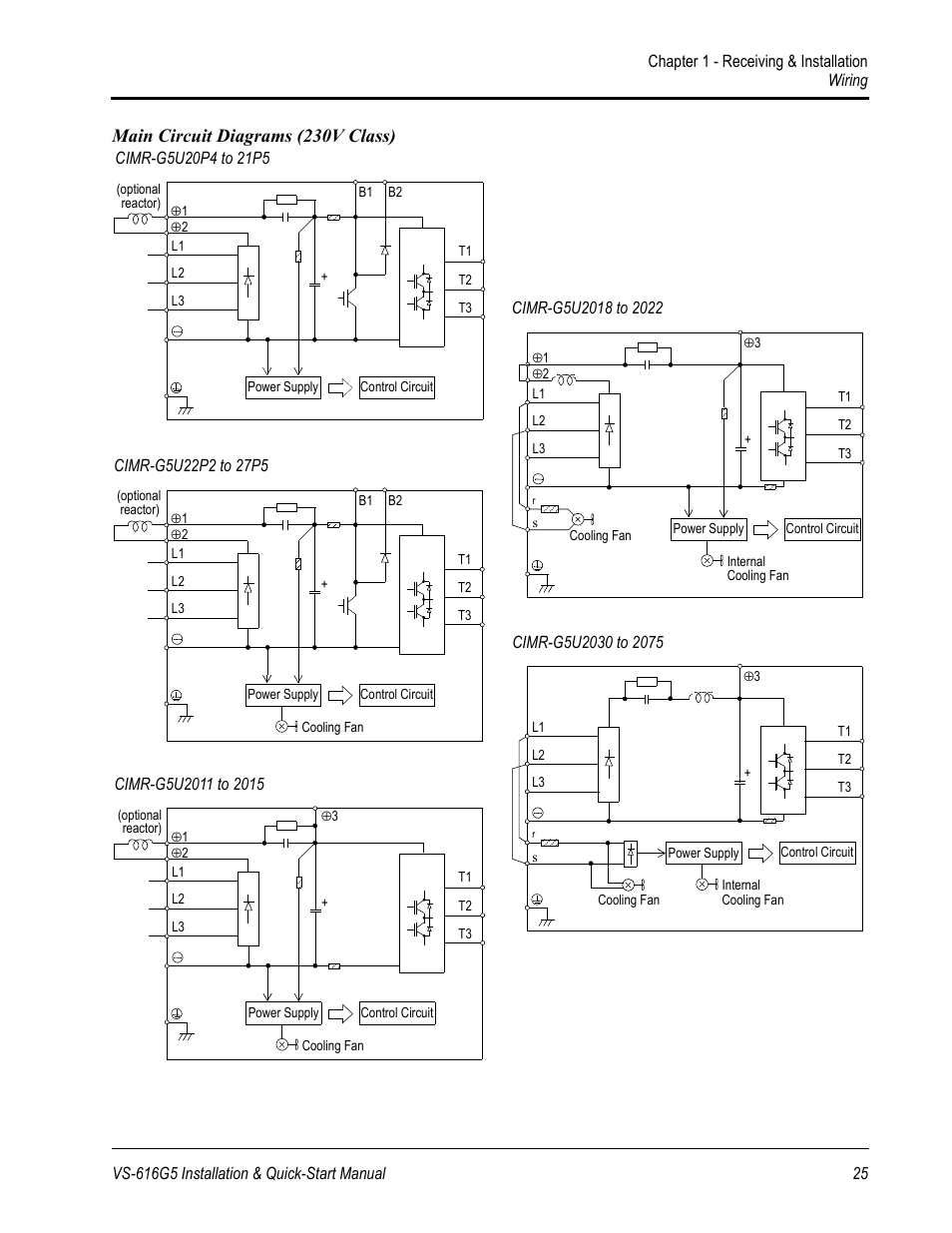

Main circuit diagrams (230v class) – Yaskawa VS-616G5 Series Revision F Quick-Start User Manual
Page 25
