Test Run

In the Test Run mode of operation, the TNC checks programs and

program sections for errors, such as geometrical incompatibilities,

missing or incorrect data within the program or violations of the

working space. This simulation is supported graphically in different

display modes. (Software option

Advanced Graphic Features

)

Soft keys for selecting the screen layout: See "Program Run, Full

Sequence and Program Run, Single Block", page 72.

Program Run, Full Sequence and Program Run, Single
Block

In the Program Run, Full Sequence mode of operation the TNC

executes a part program continuously to its end or to a manual

or programmed stop. You can resume program run after an

interruption.
In the Program Run, Single Block mode of operation you execute

each block separately by pressing the machine START button.

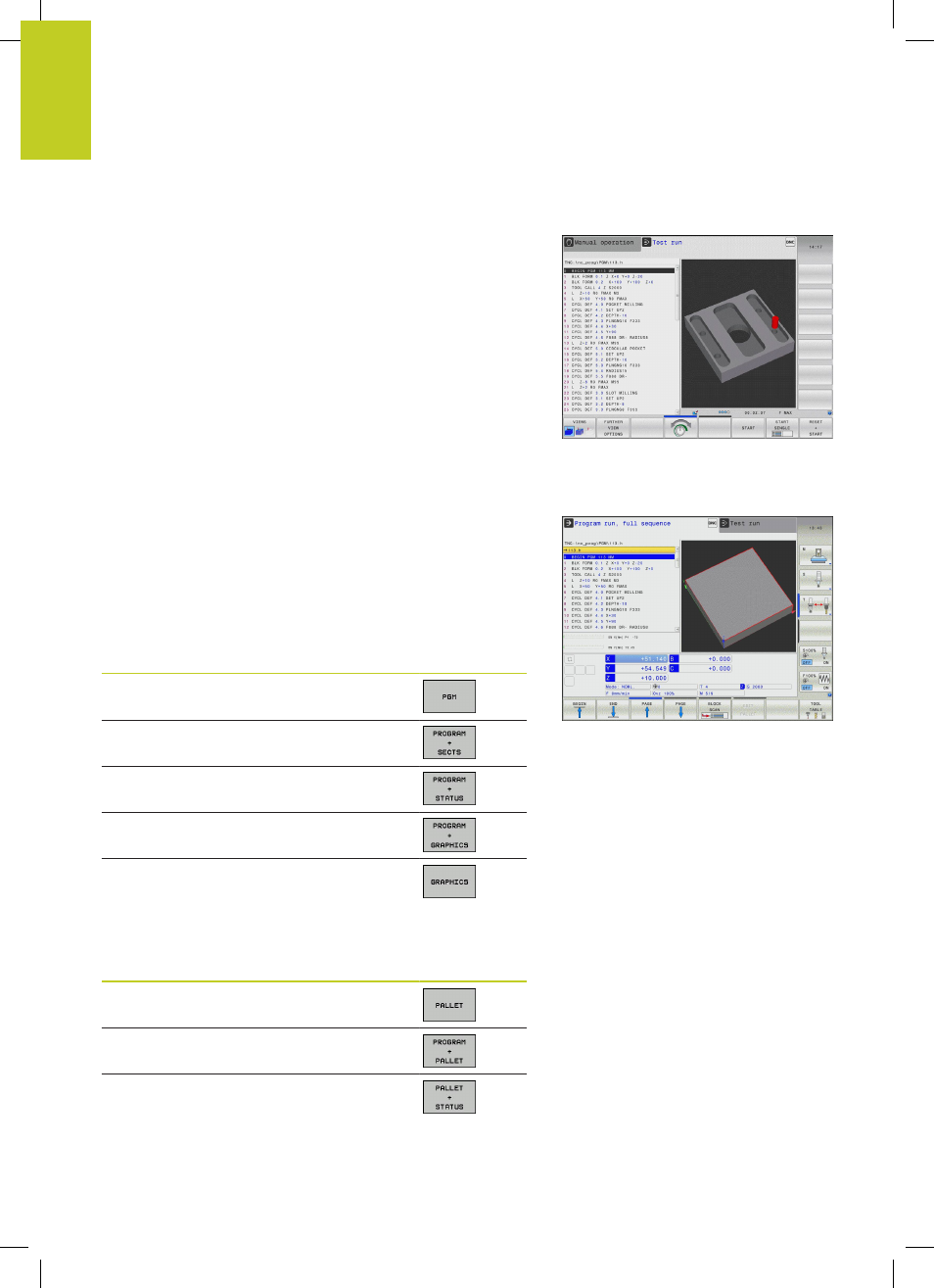

Soft keys for selecting the screen layout

Window

Soft key

Program

Left: program, right: program structure

Left: program, right: status

Left: program, right: graphics (

Advanced

Graphic Features

software option)

Graphics (

Advanced Graphic Features

software option)

Soft keys for selecting the screen layout for pallet tables
(Software option

Pallet management

)

Window

Soft key

Pallet table

Left: program, right: pallet table

Left: pallet table, right: status
