Path contours - Cartesian coordinates

6.4

6

TNC 620 | User's Manual

HEIDENHAIN Conversational Programming | 3/2014

207

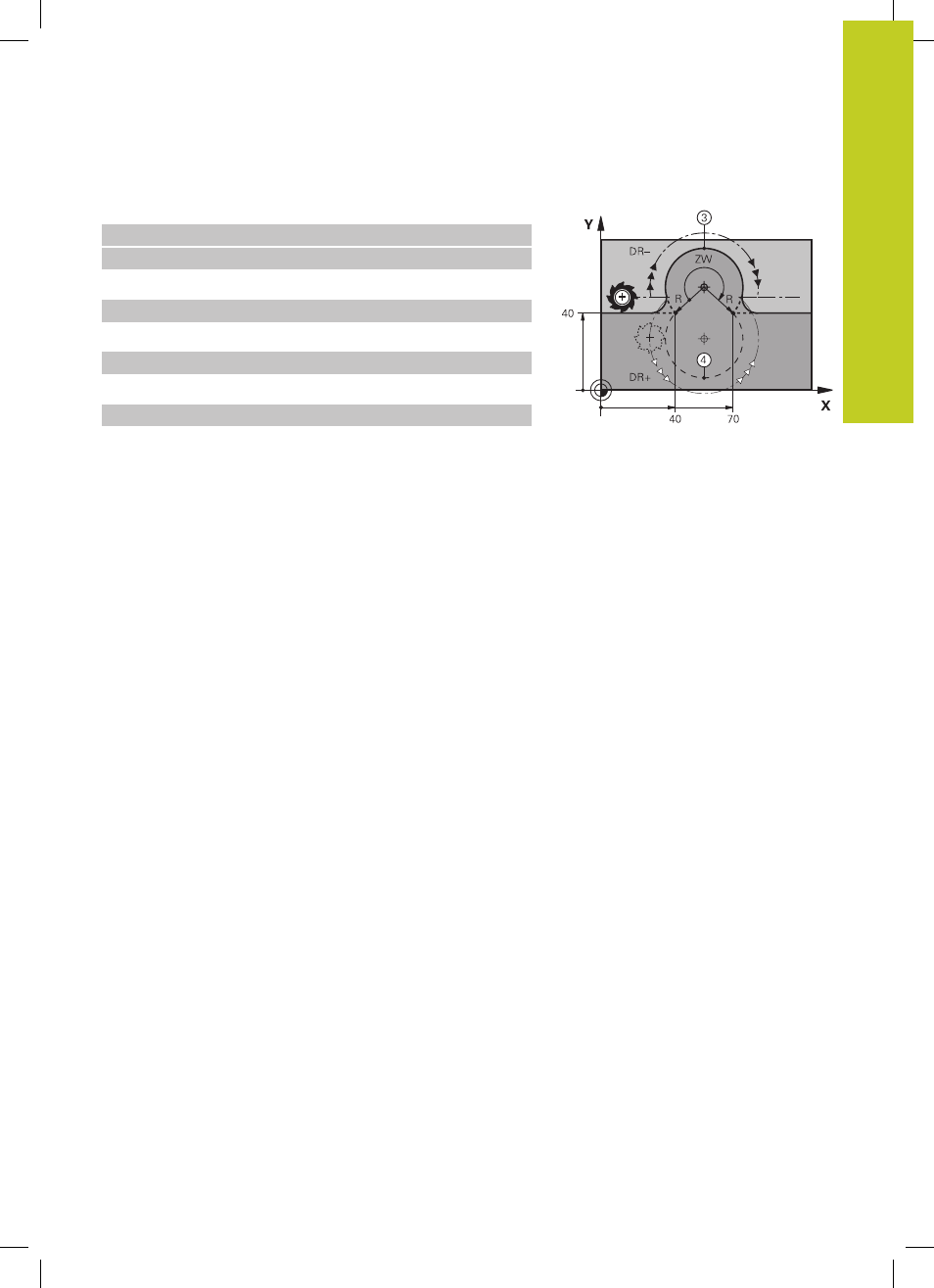

Example NC blocks

10 L X+40 Y+40 RL F200 M3
11 CR X+70 Y+40 R+20 DR- (ARC 1)

or

11 CR X+70 Y+40 R+20 DR+ (ARC 2)

or

11 CR X+70 Y+40 R-20 DR- (ARC 3)

or

11 CR X+70 Y+40 R-20 DR+ (ARC 4)
