Cut-Sheet Feeder
3. Make sure the paper-release lever is in the single-sheet
position.

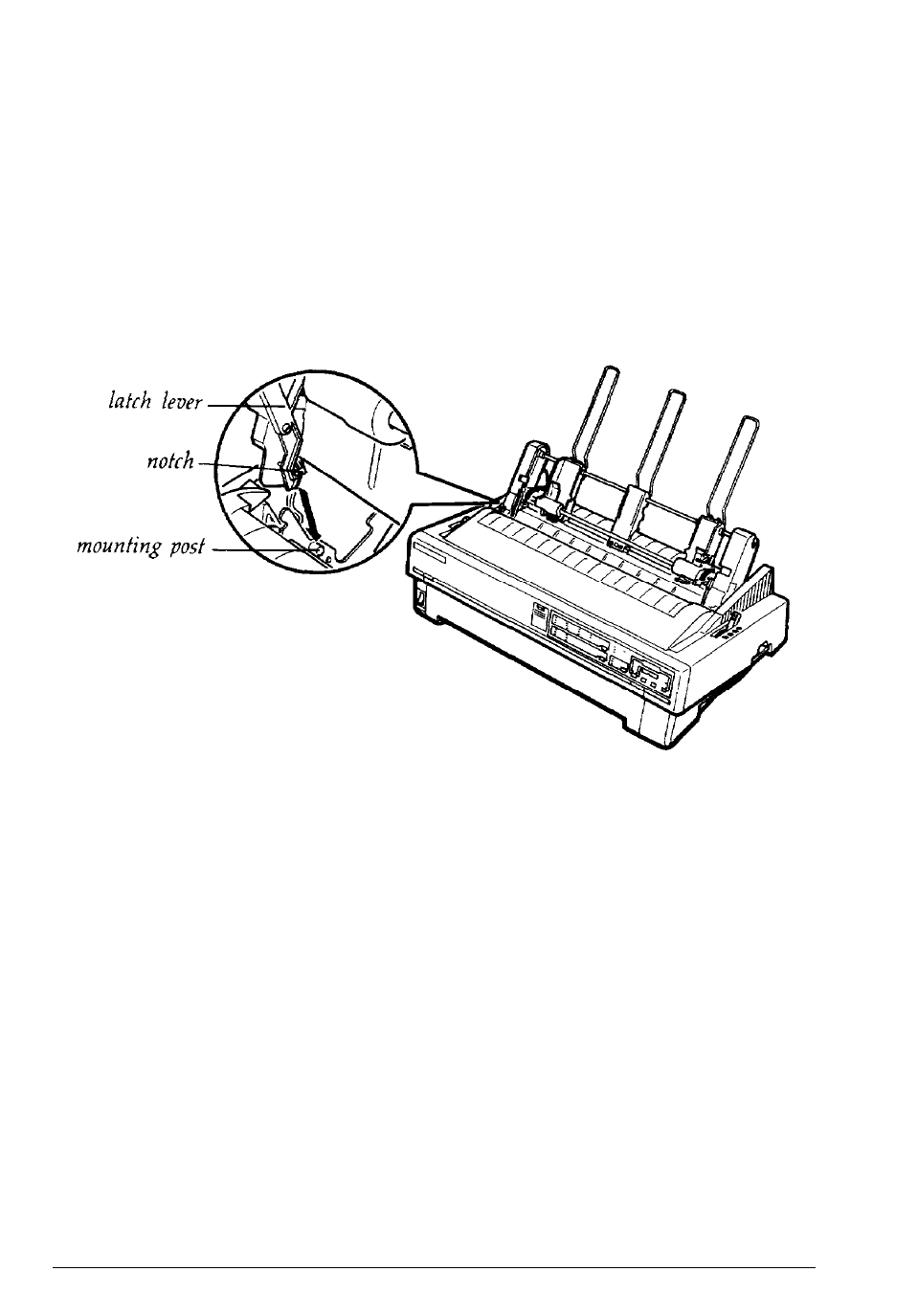

4. Hold the cut-sheet feeder in both hands. Press down on the
latch levers and fit the notches in the cut-sheet feeder over the
mounting posts on the printer. Release the latch levers to lock
the cut-sheet feeder in place.
5. Replace the printer cover by first inserting the front tabs into
the slots on the printer, then lowering it into place.
You are now ready to load paper with your cut-sheet feeder.
To remove a cut-sheet feeder, reverse the steps above.
Loading paper with the single-bin cut-sheet feeder
Load paper using the single-bin cut-sheet feeder as follows:
1.
Make sure the paper guide is removed.
Using the Printer Options
4 - 3
