Chapter 2 PFR600 Series Installation Information
34 PFR 600/E Instruction Manual 20 February 2004
Inserting the PFR600/E chassis in the rack
Every PFR600/E chassis ships with drive support brackets. The support bracket provides
additional disk module support. If the chassis will operate in a high-vibration area, leave
the brackets on. This adds time when hot-swapping drives, but provides additional
stability.

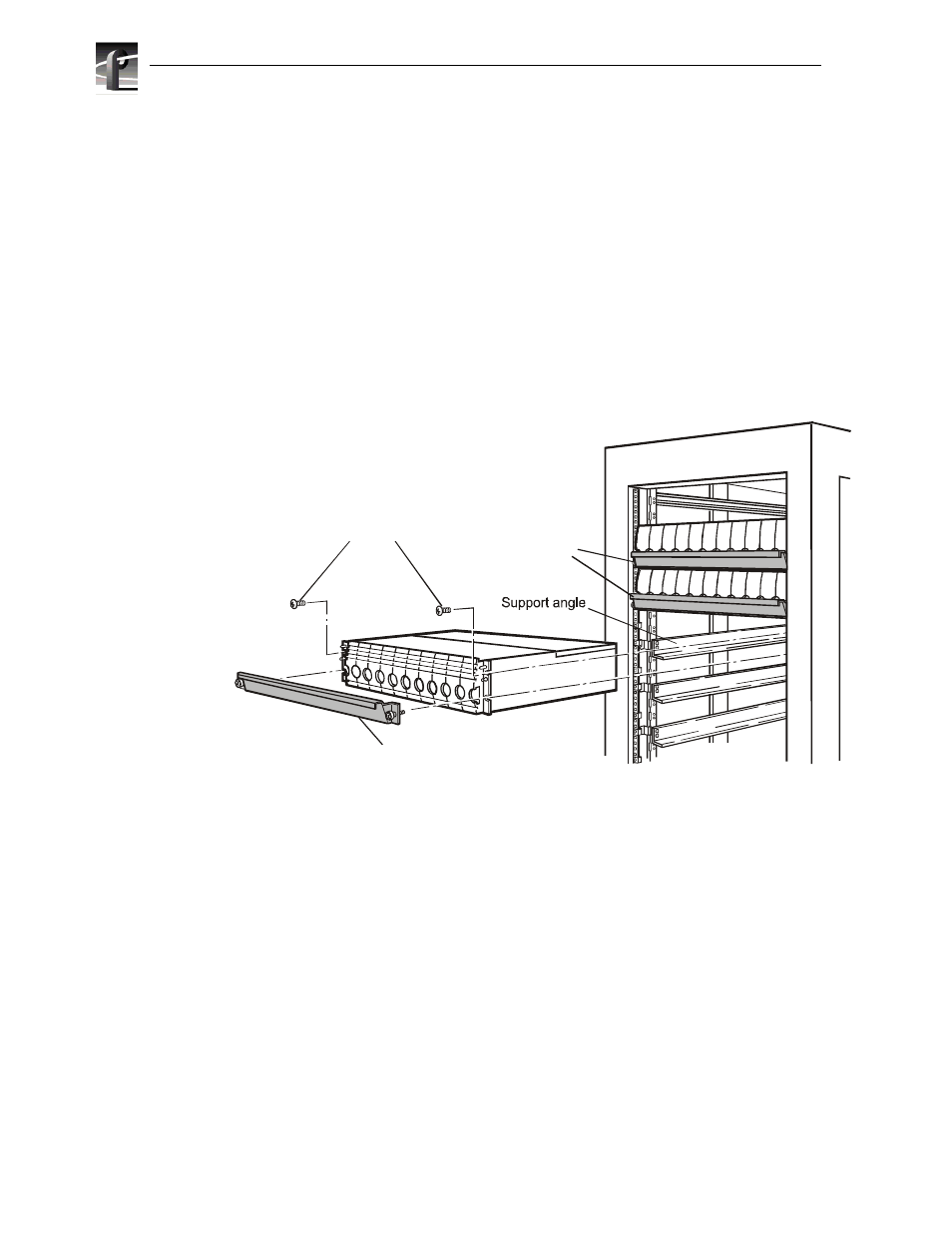

Installing the chassis with drive the support bracket
To install a chassis with the drive support bracket:
1. Rest the chassis on the support angles shown. Slide the chassis back and into place.
2. Add the drive support bracket and secure the chassis to the rack with the mounting
screws that shipped with the chassis.
3. Repeat steps 1-2 to insert each PFR600/E chassis in the rack.
The drive support brackets preclude edge covers.
Installing chassis without the drive support bracket
To install a chassis without the drive support bracket:
1. Rest the chassis on the rack mounts as shown. Slide the chassis back and into place.
2. Secure the chassis to the rack with the mounting screws included in the installation
kit.
3006
Drive Support
Brackets
Mounting Screws
Drive Support Bracket
