Reinstalling Board Hold-down Brackets
RS-422 Interface Board Installation 25
2. Insert front hold-down bracket (
Ê
in Figure 9) into the board area and ensure
that the extenders are on the top edge of all short boards.
NOTE: To prevent damage to the Analog Composite Monitor board, if
installed, ensure that an extender is not installed at the Analog Composite
Monitor board location.
3. Use the Torx tool with the T10 bit to replace bracket retaining
screw (
Ë
in Figure 9).

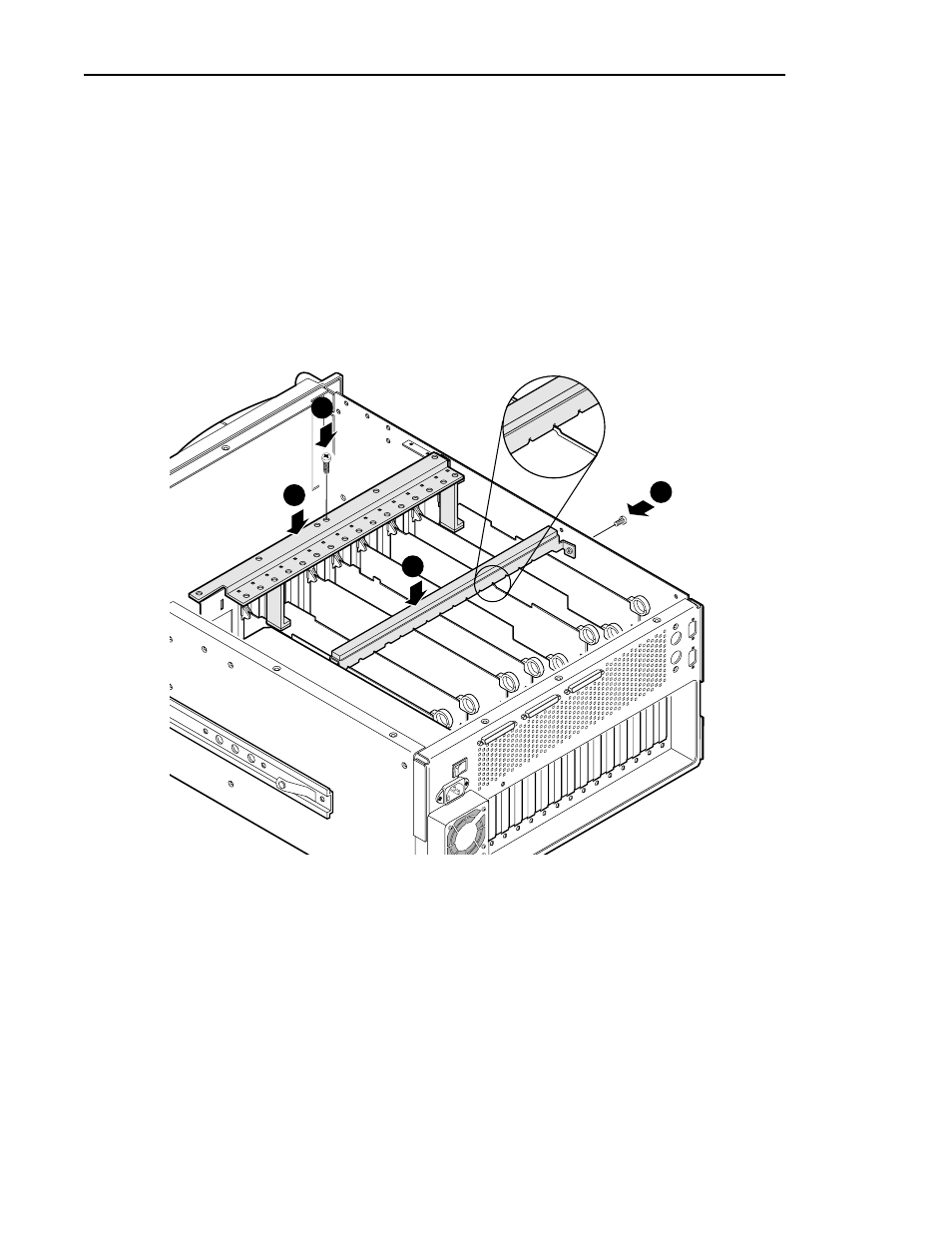

Figure 9. Installing board hold-down brackets
9675-3
4
2
1
3
