Installation Procedures
16 PDR 100 Master Enhanced Disk Recorder
Installing EMI Compliance Components
NOTE: This procedure is only necessary if your PDR 100 serial number is
below B041650.
To ensure that your PDR100 remains compliant with EMI standards with the
Master EDR board upgrade installed, you must:
1. Remove two cables behind the front panel and replace them with the cables
included in this upgrade kit.
2. Install an EMI gasket inside the rear panel behind the power supply.
The following procedures explain how to perform these modifications.
Replacing the Cables

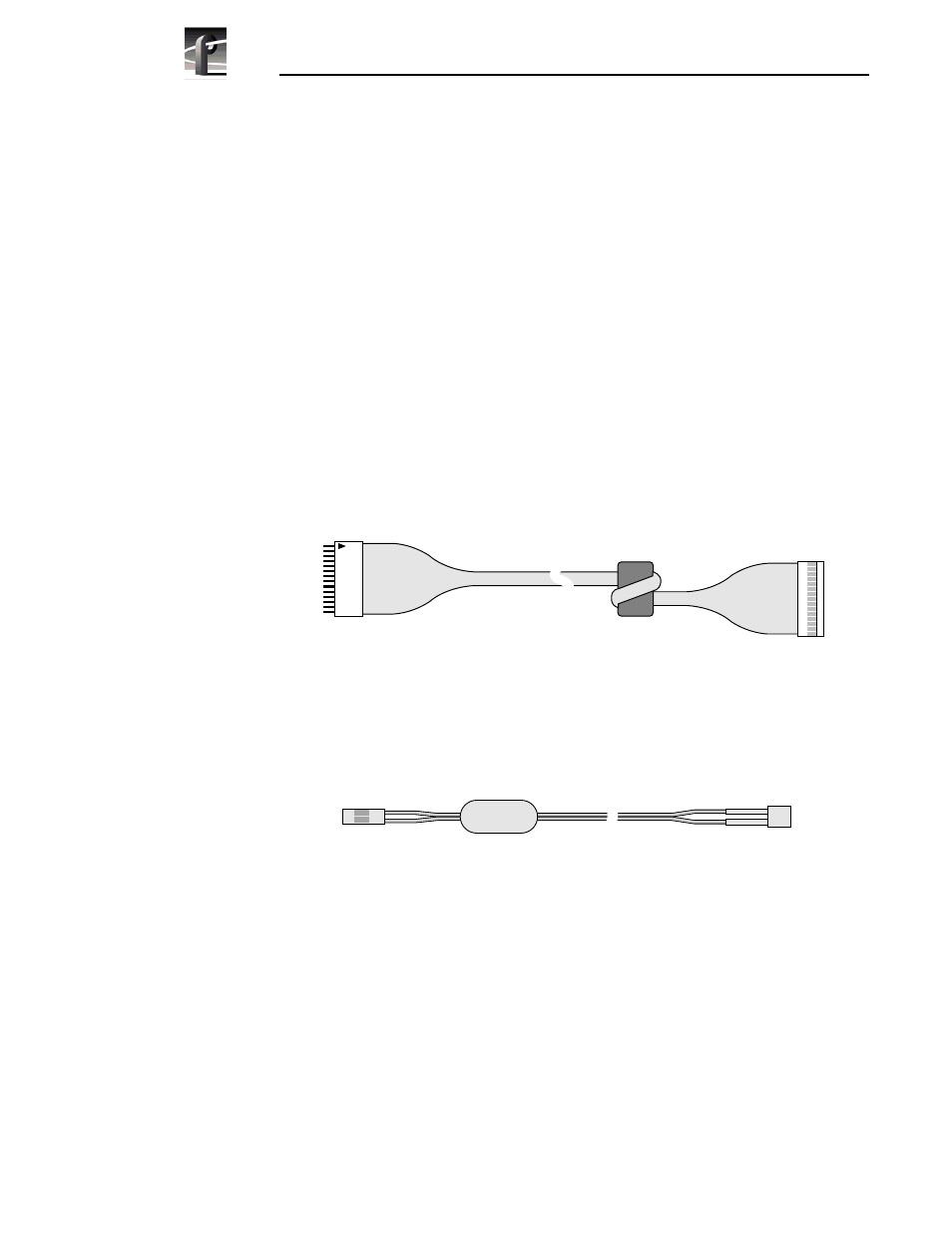

The replacement cable assemblies are shown in Figure 11 and Figure 12. These
cables replace the existing cables behind the front panel. You must remove the
front panel and its backing plate to replace these cables.
Figure 11. Front panel cable assembly
Figure 12. LED cable assembly
9674-25
9674-24
