ESAM Protocol
ESAM Installation and Configuration
Installation and configuration is accomplished using the Sidepanel menu.

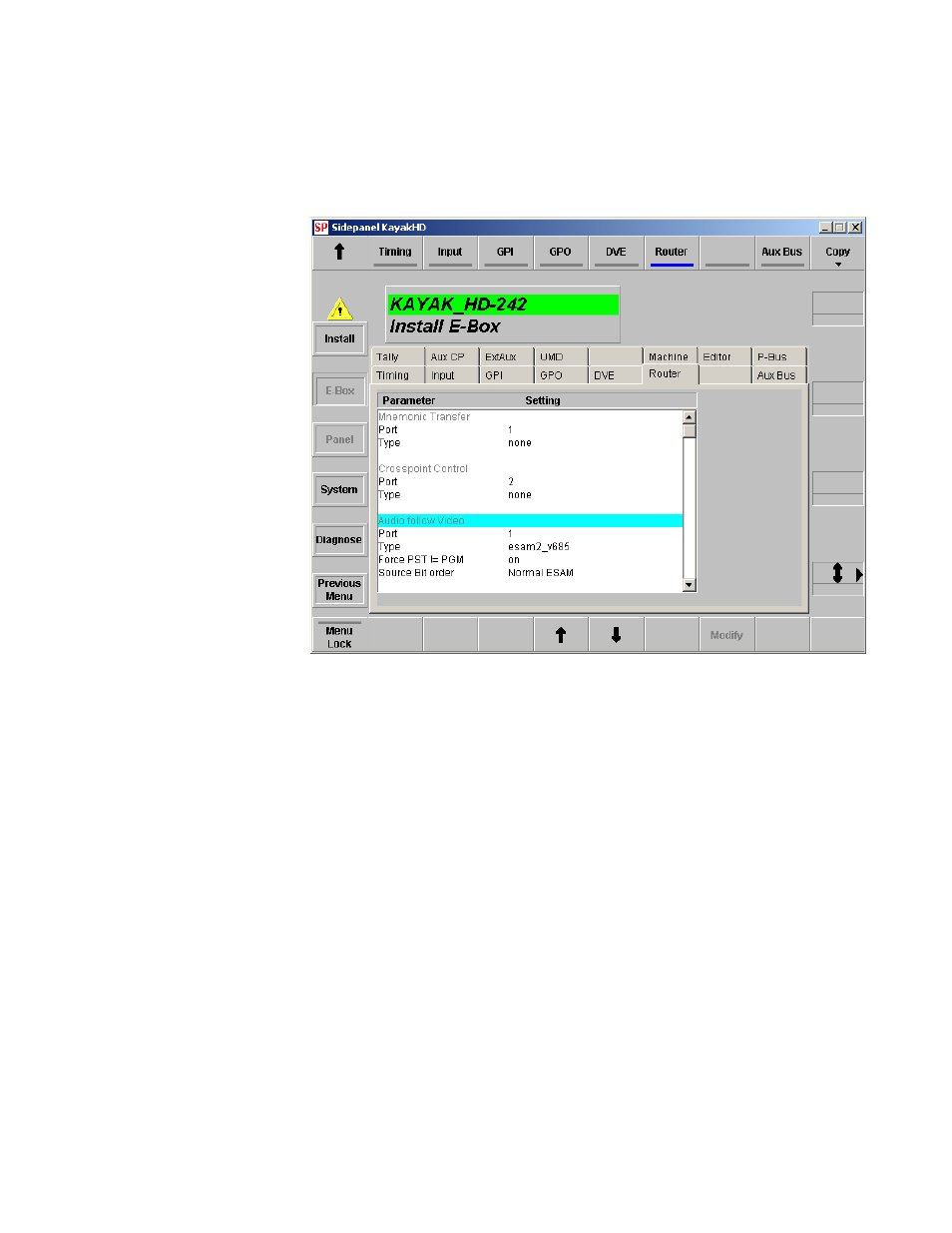

Figure 150. Sidepanel’s Install - E-Box - Router Menu
1.
Select the port number.
2.
Select protocol type:
esam2_V685
3.
Select protocol option for
Force PST=PGM:
•
Yamaha O3D =
-
•
Yamaha DM-1000 =
On
4.
Select protocol option for
Source Bit Order:
•
Yamaha O3D =
Reverse OsD
•
Yamaha DM-1000 =
Normal ESAM
