Kayak HD — Installation and Service Manual 183
Additional Kayak Panel FRUs
Replacing a Ribbon Cable Harness (2-M/E and 3-M/E)
The Ribbon Cable Harness is connected to the top and bottom of the enclo-
sure, as shown in
Figure 134 .

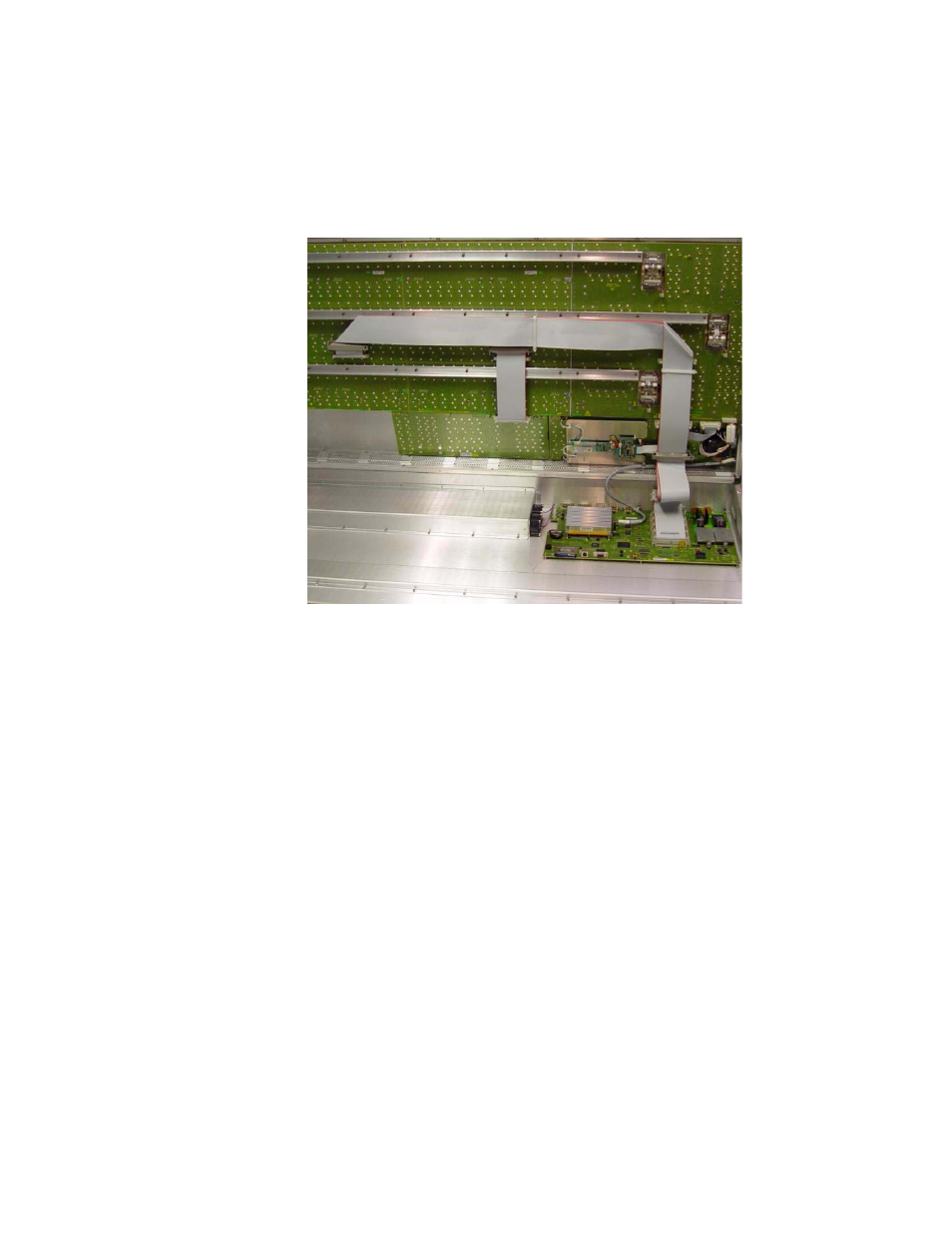

Figure 134. Kayak Control Panel—Ribbon Cable Harness
To replace a Ribbon Cable Harness , complete the following steps:
1. Safely separate the top of the control panel enclosure from the bottom
(see
Removing the Top of the Control Panel Enclosure on page 168 ).
2. Remove the Ribbon Cable Harness connections starting with the
bottom of the Control Panel (see the Caution (
page 170 ) regarding the
Display Cable to Panel CPU Board connection above), as shown in
Figure 135 .
CAUTION Mark the cable with a felt-tipped pen or diagram all Ribbon Cable Harness
connection locations before removing the harness.
