Kayak HD — Installation and Service Manual 185
Additional Kayak Panel FRUs
Replacing CF Cards (2-M/E and 3-M/E) (128MB/512MB)
1. Safely separate the top of the control panel enclosure from the bottom
(see
Removing the Top of the Control Panel Enclosure on page 168 ).
2. Eject the existing CF card, located on the front-right of the Panel CPU
Board, by pushing the grey button on the left side of the CF Card
carriage, as shown in the example in
Figure 136 .
3. Insert the new CF Card into the carriage until it clicks into place, as
shown in the example in
Figure 136 .

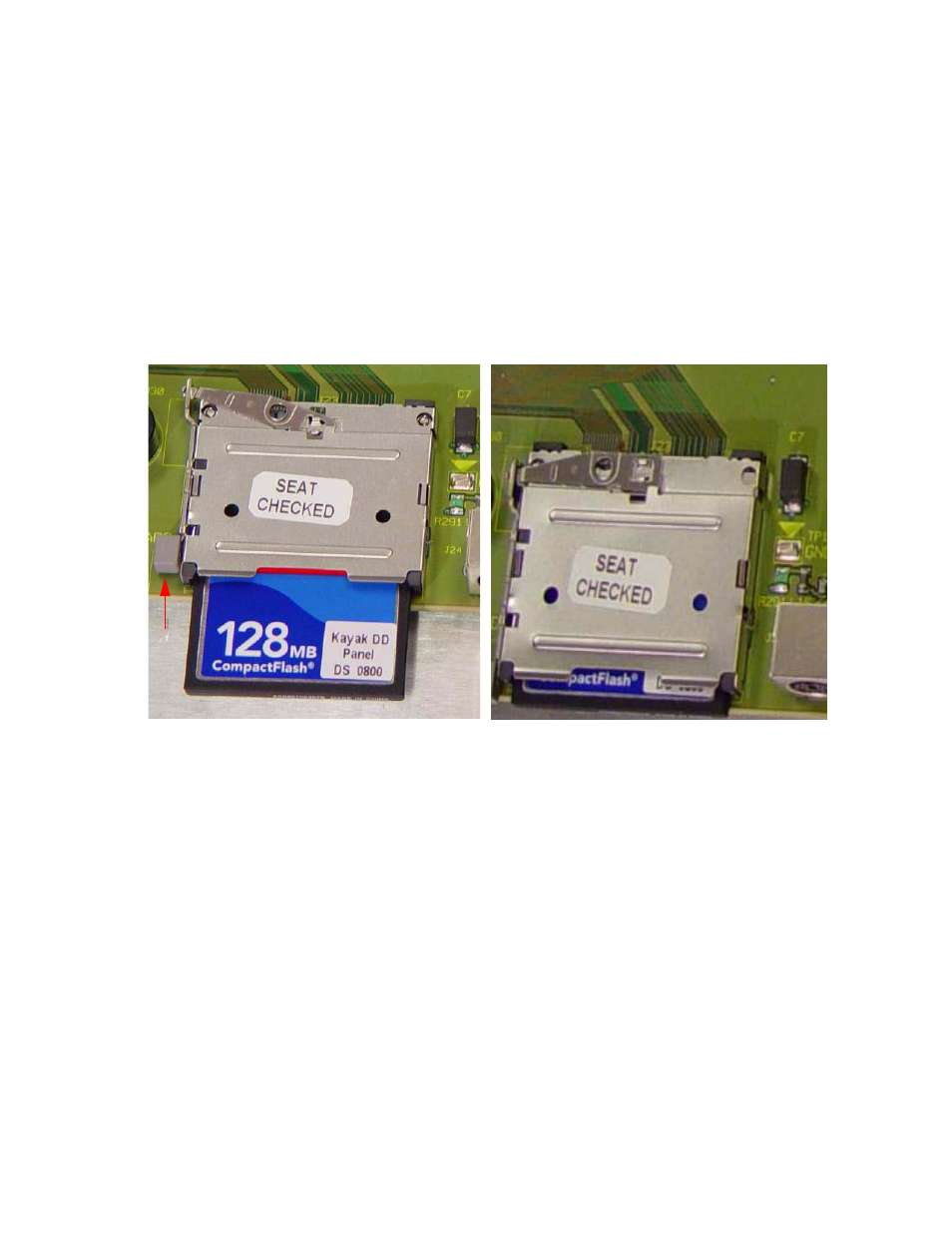

Figure 136. Kayak CF Card—Replacing CF Card
