Supplement Software Release V3.4.5 DD35 Production Switcher
37 Operating Instructions – Rev. 0 / 7.2002

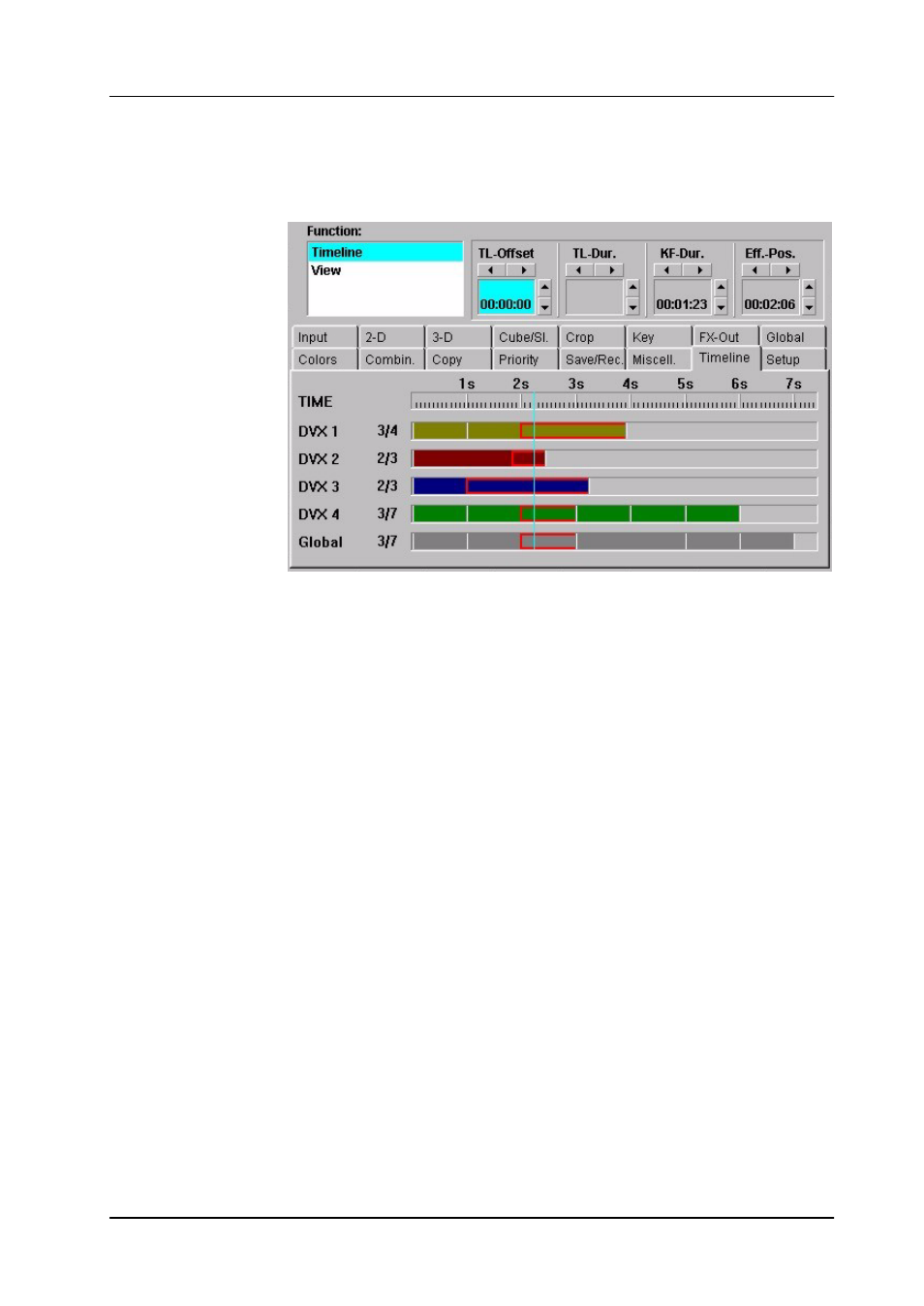

2.5.14 TIMELINE INDEX CARD
Index card with 2 pages: Timeline, View
Page Timeline
TL–Offset Set timeline offset for selected channel.
Via ”Modify / Selected” you can enter absolute timecode
TL–Dur Will set the duration for the total timeline.
Not yet implemented in the actual software.
KF–Dur Set the duration for the selected keyframe.
Via ”Modify / Selected” you can enter absolute timecode
Eff.–Pos Moves the actual position (cursor) in the timeline.
Page View
Zoom Set the zoom window for the display
Scroll Set the start timecode for the display.
Eff.–Pos Moves the actual position (cursor) in the timeline.
(same as in ”page timeline”)
With the left / right arrow at the bottom you step to the previous / next keyframe for
the DISPLAYED channel.
