2.5.2 2–D INDEX CARD

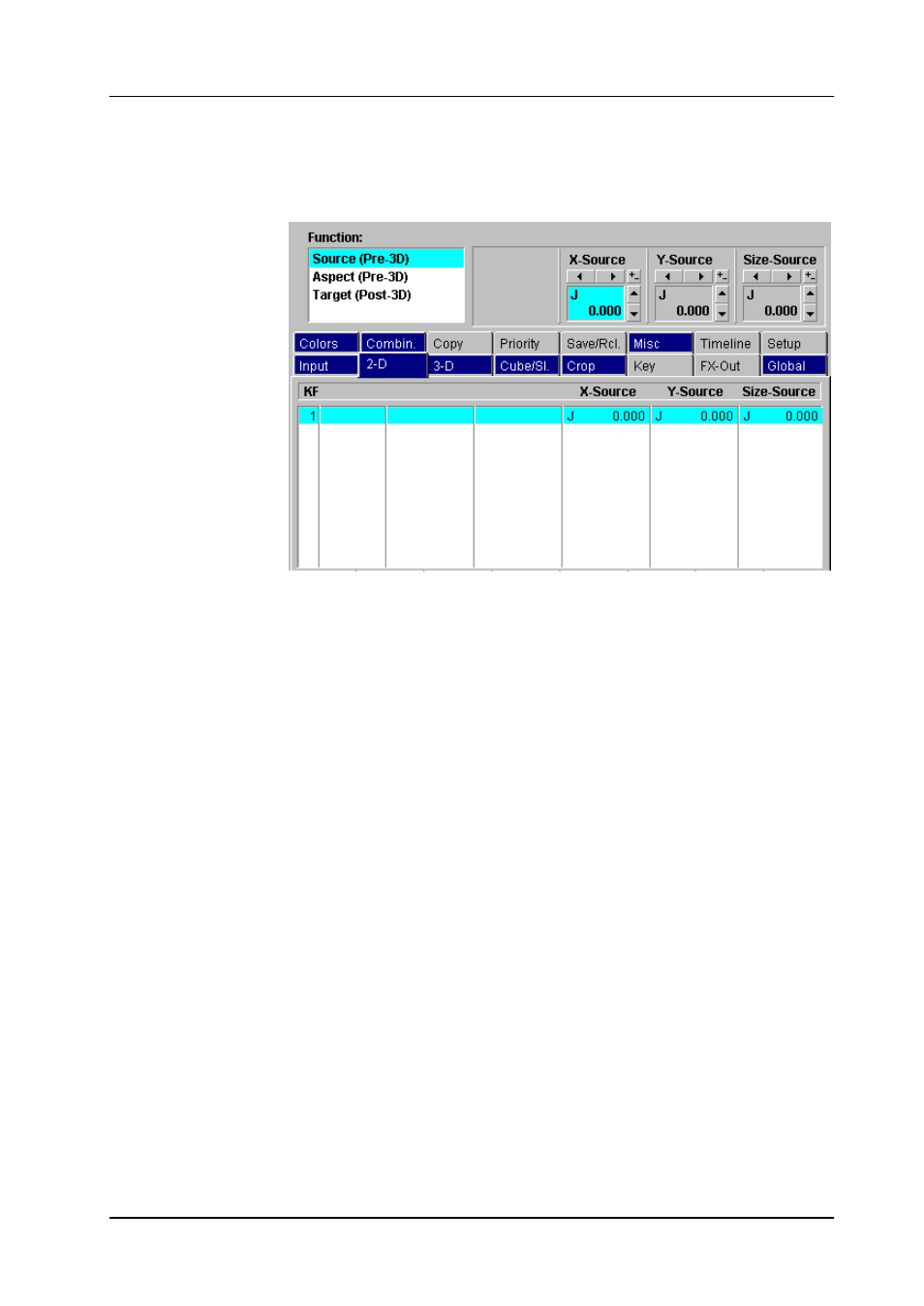

Index card with 3 pages: Source (Pre–3D), Aspect (Pre–3D), Target (Post–3D)
Page Source (Pre–3D)
X–Source x–position in 2–dimensional space prior to 3–D
manipulation for local channel
Y–Source y–position in 2–dimensional space prior to 3–D
manipulation for local channel
Z–Source z–position in 2–dimensional space prior to 3–D
manipulation for local channel
Page Aspect (Pre–3D)
Width–Asp. Stretch / compress image horizontally in 2–dimensional space
prior to 3–D manipulation for local channel
Height–Asp Stretch / compress image vertically in 2–dimensional space
prior to 3–D manipulation for local channel
Size–Asp. Size in 2–dimensional space prior to 3–D manipulation for
local channel
