63
Copperhead 3430AP
User Manual

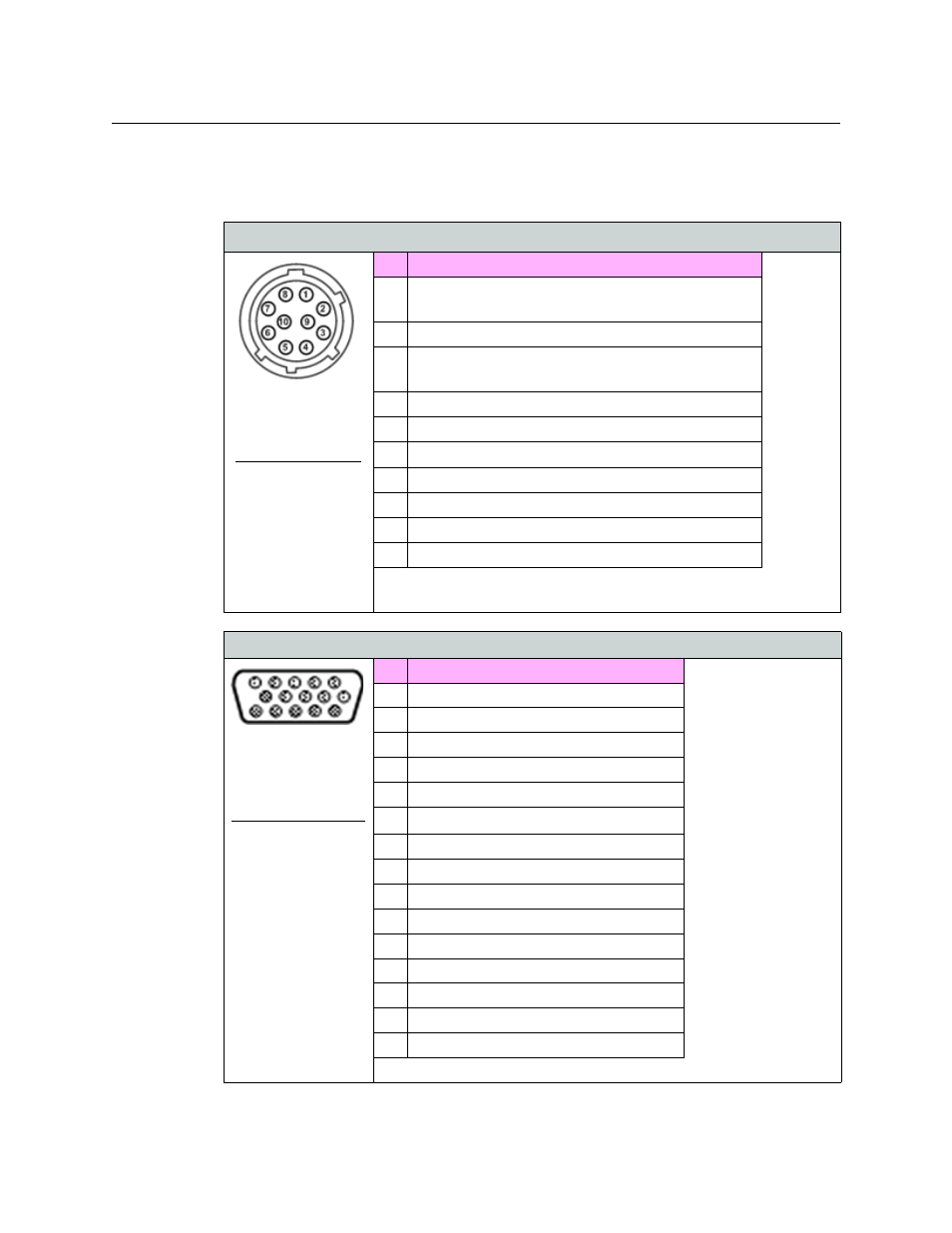

Camera Unit Connectors
Camera Remote: Data 1 (Camera Control) and Data 3 (RS232)
Camera Unit
Hirose 10-pin Female
Format select (Pin 5)
Floating for RS-422 or
TTL
Tie to GND for RS-232
Tie to +12VDC (pin 15)
for RS-485
Pin Function
1 +12VDC Input Power
(also Camera Control Data Format Select Bias)
2 12VDC Input Power – Ground
3 Camera Control Data (+) Input
or Bi-directional Camera Control Data I/O
4 232 Data Input (Data 3)
5 Camera Control Data Format Select (see choices to left)
6 Camera Control Data (-) Output
7 Ground (Camera Control Data Shields, 232 Data Common)
8 232 Data Output (Data 3)
9 Camera Control Data (-) Input
10 Camera Control Data (+) Output
Camera Unit Camera Remote Connector Wiring
(Mating connector - Hirose HR10A-10P-10P)
Camera Unit Production/Signal
Camera Unit #9
DB15HD Female
Format select (Pin 10)
Floating for RS-422 or
TTL
Tied to GND for RS-232
Tied to +12VDC for RS-
485
Pin Function
1 Data 2 -422 Out
2 Data 2 -422 In, -485 I/O
3 Intercom Microphone Trigger
4 GPI In
5 GND
6 Data 2 232 OUT, +422 Out
7 GND
8 Data 2 232 In, +422 In, +485 I/O
9 Not Used
10 Data2 Format (see choices to the left)
11 GPI 2 OUT B (Green)
12 GPI 2 OUT A (Green)
13 GPI 1 OUT B (Red)
14 GPI 1 OUT A (Red)
15 +12VDC (100mA max) Bias for Format
Camera Unit Production DB15HD Connector Wiring
