Page 45
33
CopperHead 3430AP
User Manual
Connections to the CopperHead 3430AP Camera Unit

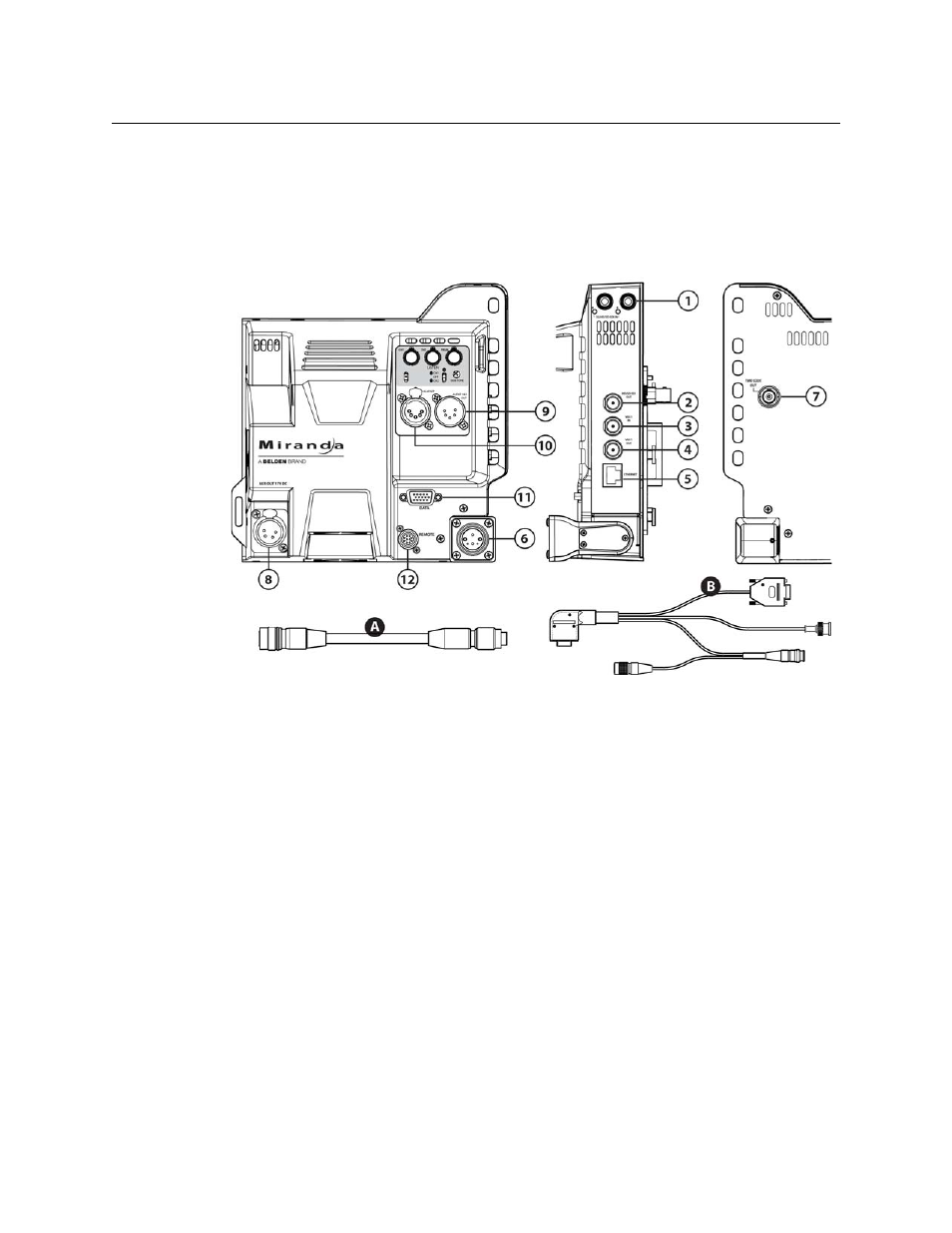

Fig. 3-4: CopperHead 3430AP Camera Unit Back Side Connections
This information duplicates some of that from above sections. It is presented here to provide a
single list of all Camera Unit connections. Key numbers refer to the diagram above.
Multi‐Pin Cable Assemblies Used with the CopperHead 3430AP Camera Unit
A) Camera Remote Control (Remote) Connector
Connect this to the CCU input on your camera. The Grass Valley-supplied cable has a red
sleeve at the end to be connected to the CopperHead 3430AP Camera Unit.
See Appendix B for a list of Grass Valley supplied cables.
B) Data/GPI /Tally Connector
This connector carries a number of control, GPI and Tally signals.
See page 63 for wiring details
