Grass Valley 3430AP CopperHead User Manual
Page 32
20
Detailed System Description

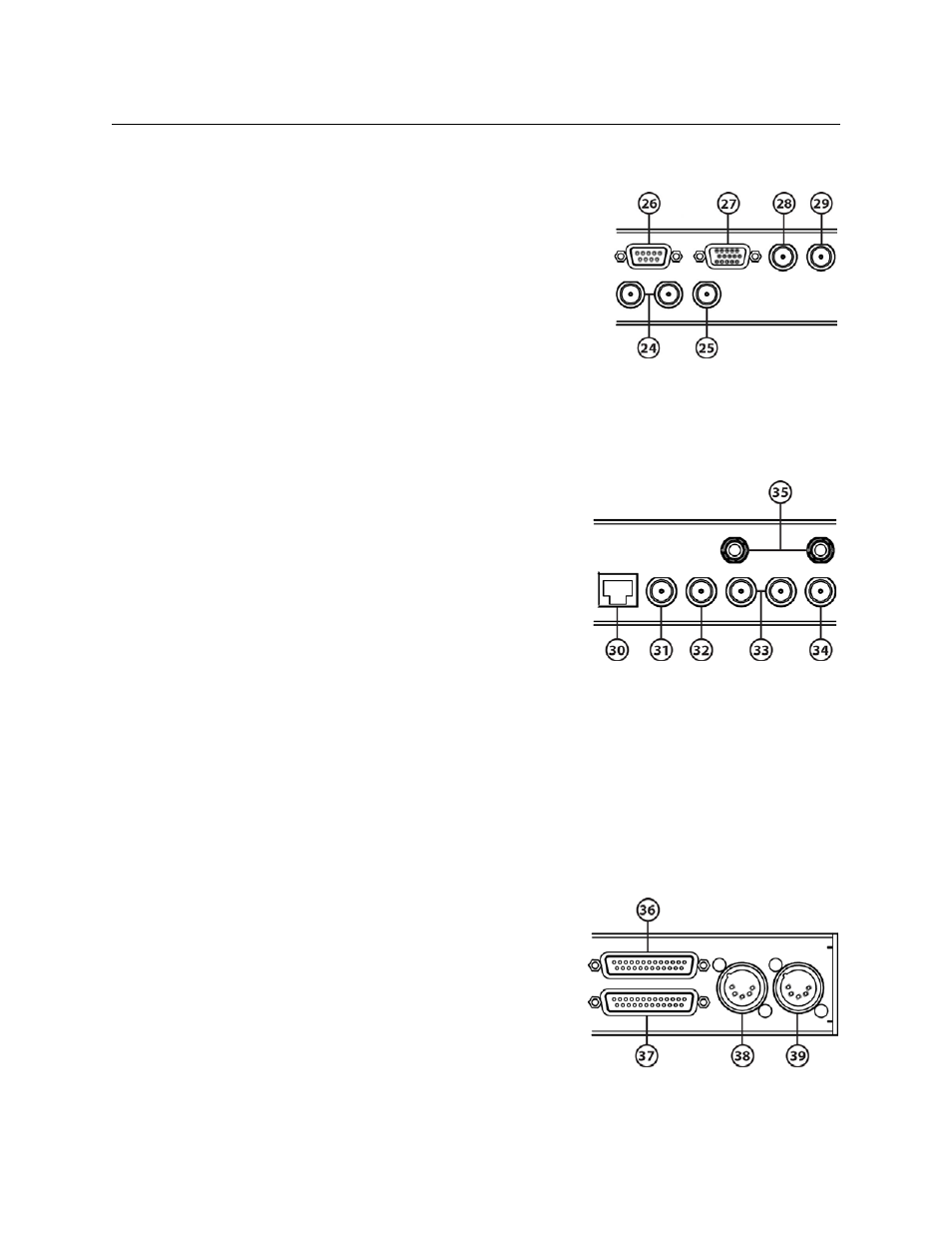

Area B – Sync/Data/Control Connectors
24 Sync/Black Burst input connector & Loop through
25 Video Prompter input to Camera (N/A for 3430AP)
26 Camera Remote Control Panel Connector
27 Data/GPI Multi‐Pin Connector
28 Time Code In to Camera
29 Time Code Out from Camera (N/A for 3430AP)
Area C - Video/Ethernet Connectors
30 Ethernet connector – 10BaseT/100BaseT
31 VBS Output from Camera
32 VBS Return Video source Input to Camera
33 SDI Program from Camera Unit outputs 1‐2
(N/A for 3430AP)
34 SDI Return Video source Input to Camera
35 3D/HD/SD-SDI Dual‐Link from camera outputs A‐B
Area D – Audio/Intercom Connectors
The Copperhead 3400 Base Station can be configured with one of three different Intercom
options. The connection and practical use of each of these options is covered in
beginning on page 42. Multi-pin connector wiring is covered in Appendix A.
Four Wire Intercom Module
36 Audio In Multi‐pin connector
37 Audio Out Multi‐pin connector
38 Ch‐1 Intercom connector
39 Ch‐2 Intercom connector
