16 8990ARC Instruction Manual
8990ARC SD Aspect Ratio Converter
Save/Recall Settings Display
The 8990ARC provides five storage registers to save module configuration
settings for access through standard local and remote control or through
the GPI interface (see
Figure 12 ). Current module configuration settings are
displayed above the recall/save buttons. Factory default settings can be
recalled using the
Recall Defaults button.

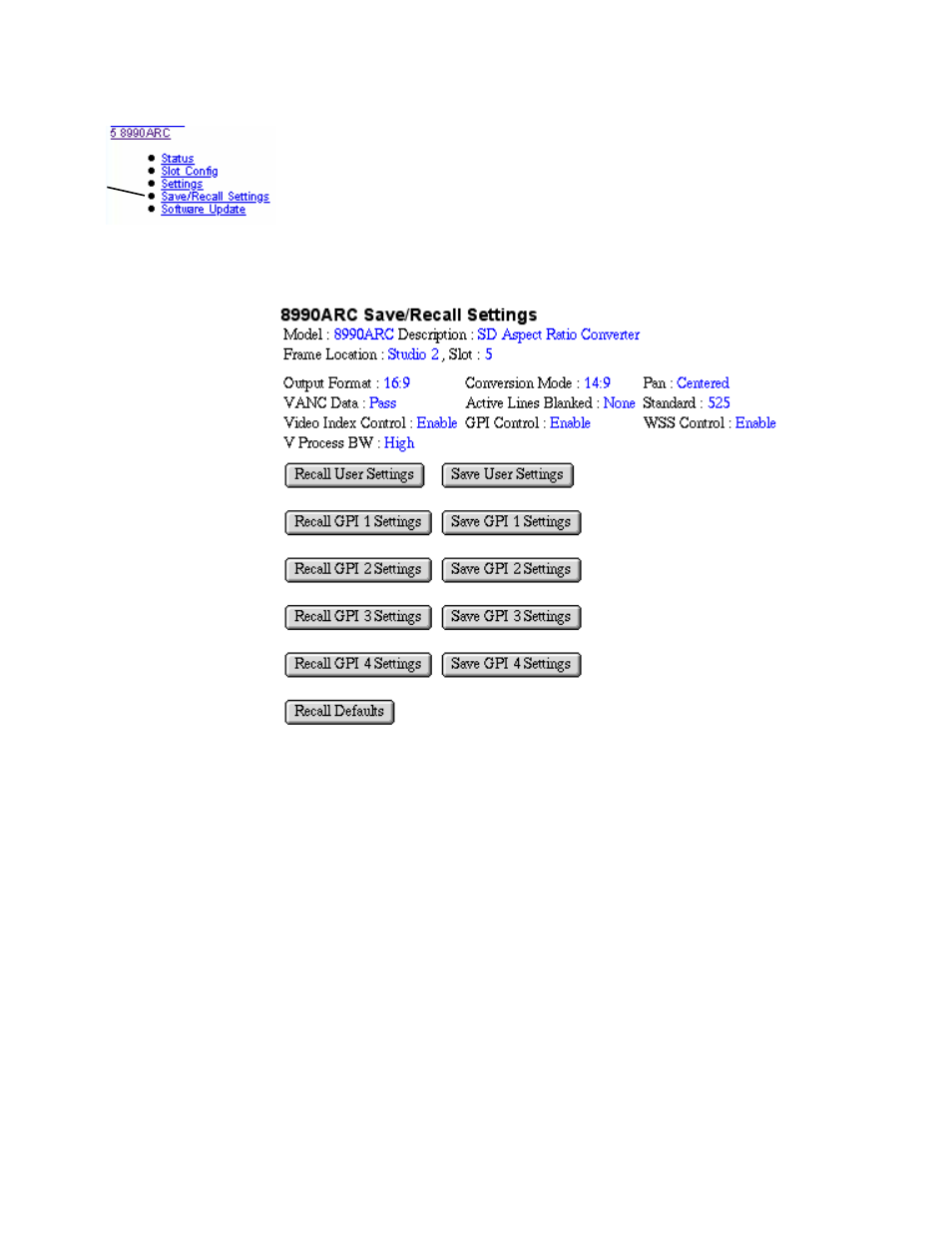

Figure 12. Save/Recall Display
