48 8943FC — Instruction Manual
Configuration and Monitoring
Settings Web Page

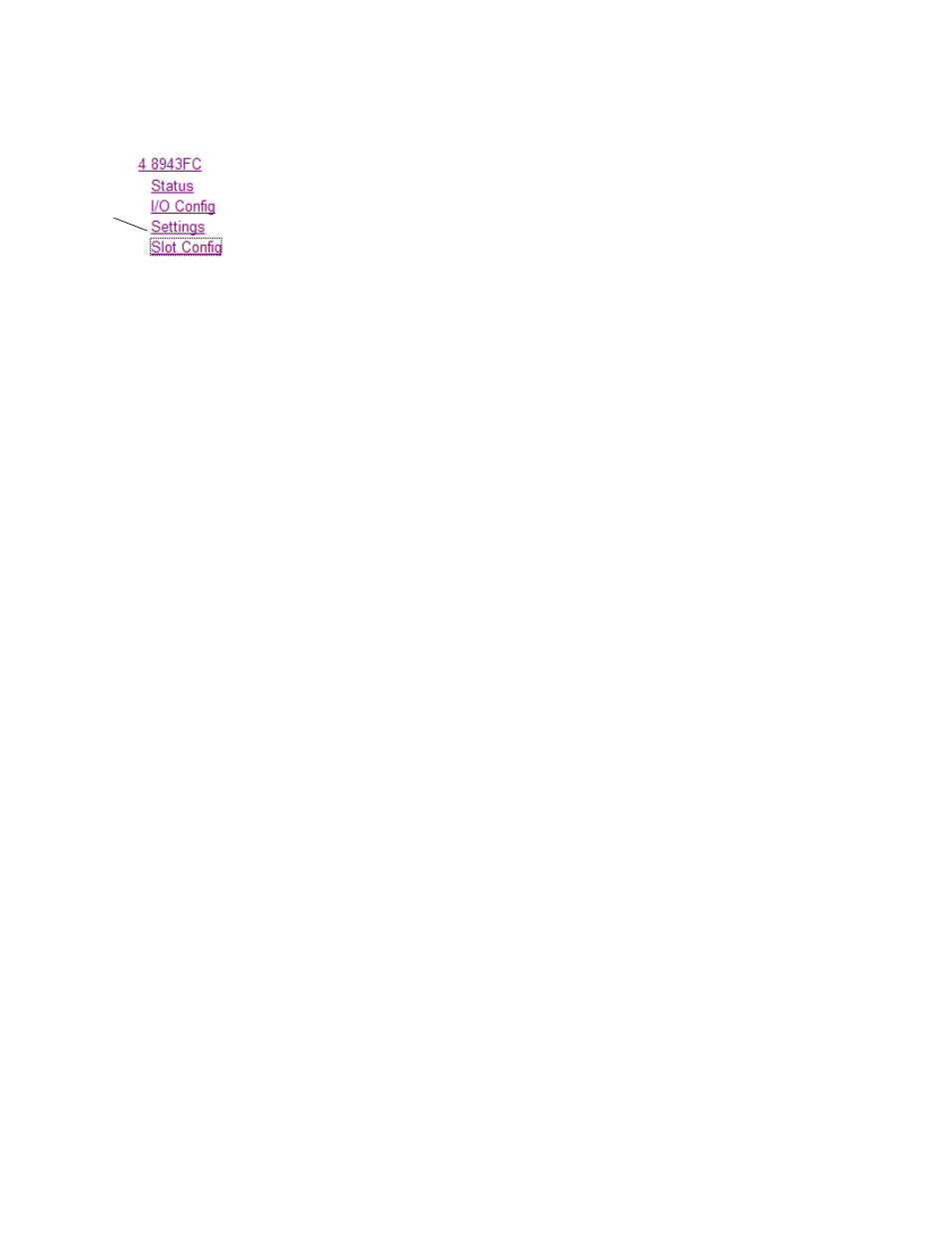

Use
this
link
Use the Settings web page ( Figure 33 on page 49 ) set the input operating
mode for each channel and monitor the rate detected and signal state for
each channel. A
Default button can be used to return the module to factory
defaults (Auto Reclock/Mute and Reporting Enabled).
Inputs
Select the input operating mode for each channel by selecting a mode from
the channel pulldown from one of the following choices:
• Auto Reclock/Bypass mode
• Auto Reclock/Mute mode
• 3G 2970M mode
• HD 1485M mode
• SD 270M mode
• Manual Bypass HD/3G
• Manual Bypass SD
Each of the operating modes are described in detail in Input Operating
Modes Overview on page 31 .
