42 8943FC — Instruction Manual
Configuration and Monitoring
Web Page Links
The web interface GUI provides the following links and web pages for the
8943FC modules (
Figure 29 ):
• Status – reports input video status for each of the fiber optic inputs 1-4,
presence, type, and status of Fiber Optic SFP devices, module slot serial
number, software/firmware version, and Asset Tag assignment,
(
page 43 ),
• I/O Config – shows the presence/status of the signals on a specific con-
nector, allows naming of each input and allows enabling or disabling of
the signal reporting (
page 47 )
• Settings – allows selection of the input operating mode for each
channel, reports the rate detected and signal state, and allows setting of
factory defaults for input modes (
page 48 ),
• Slot Config – provides Locate Module and Slot Memory functions
along with links to the 8900NET SNMP, LED Reporting, and Frame
Alarm configuration web pages (
page 50 )

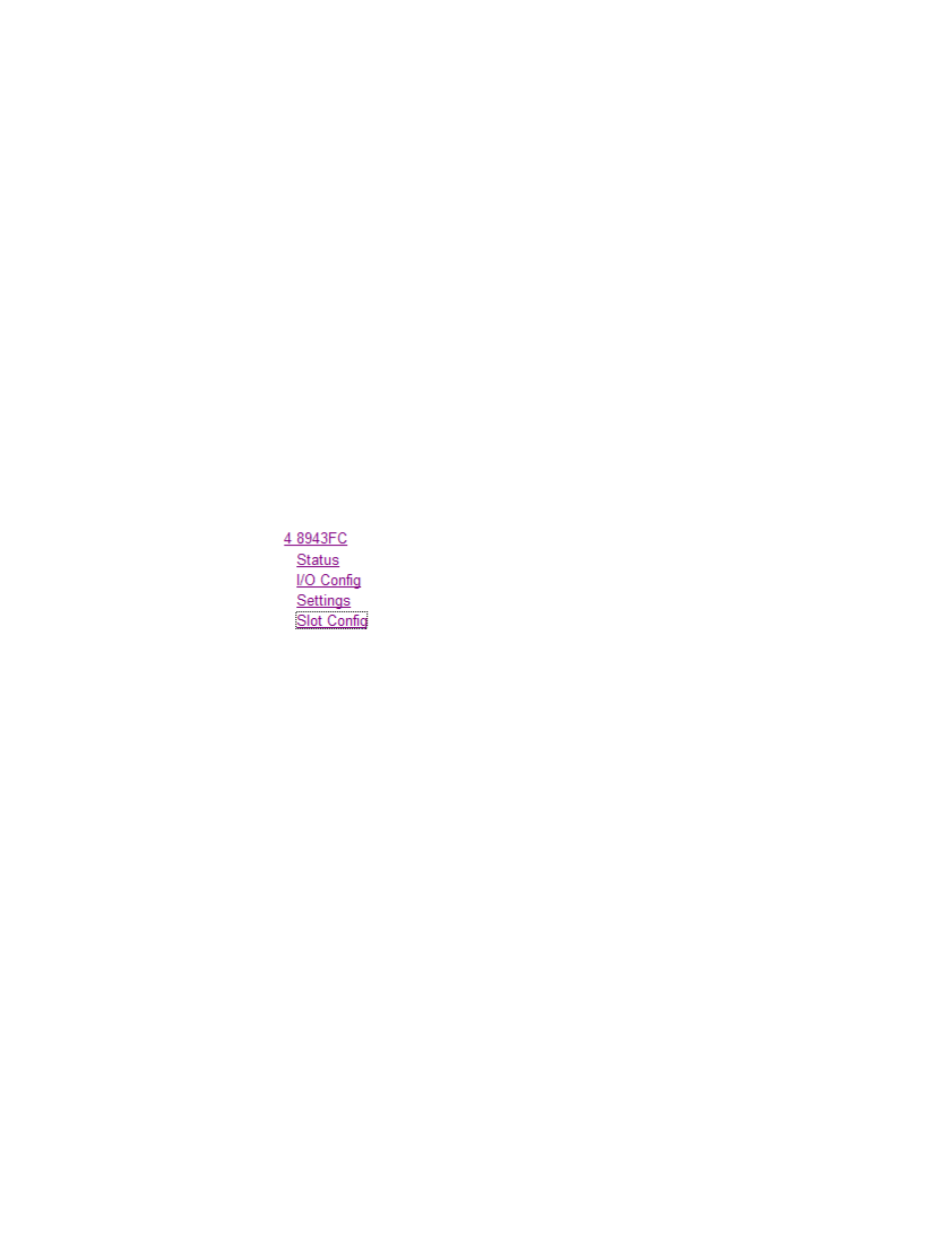

Figure 29. 8943FC Web Page Links
