22 8943FC — Instruction Manual
Installation
Front Module Installation
After installing the rear module and SFP devices on the front module,
install the front module as follows:
1. Remove the front cover of the frame.
2. Locate the corresponding front slot.
3. Before installing the module, set the Local/Remote onboard jumper as
described in
Local/Remote Jumper on page 37 .
4. Clean the fiber optic connections as described in the Installation on
page 11 .
5. Insert the front module so that the plastic card guides on the module
top and bottom edges go over the upper and lower raised rail guides on
the right of the top and bottom of the slot (
Figure 16 ).
6. Carefully slide the module into the rear connector of the slot.
7. Lock the front module ejector tab into the locking pin.
8. Replace the front cover for configuring the module using remote
controls.

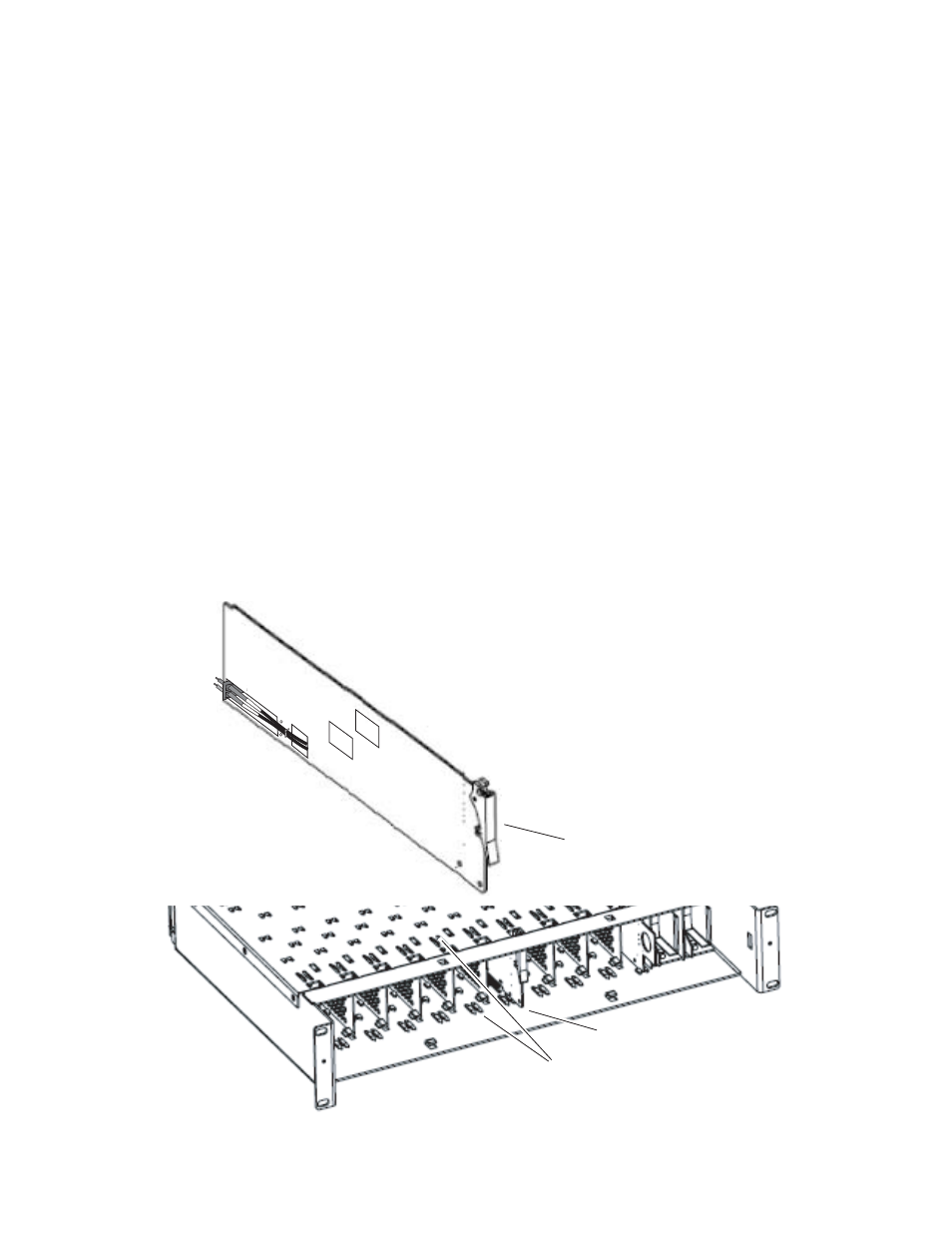

Figure 16. Front Module Installation
Slide top and bottom card carriers on module
over top and bottom guides on right of slot.
Module installed
Locking Pin
Front Module Side View
8771_09r0
