28 8943FC — Instruction Manual
Installation
CWDM 16 Channel Configuration
The 8943FC can also be used with the 8939FCA and 8939FCB to provide 16
channels of video over a single fiber connection.
As shown in the simple block diagram in Figure 23 , the two 8939FCB
module COM ports can be connected to the 8939FCA module expansion
ports to provide another eight channels of video, for a total of 16 channels
over one fiber.
The 8939FCB must be set up in a similar manner as the 8939FCA only using
a different set of CWDM fiber optic SFP devices with frequencies pairs from
1310nm to 1450nm.

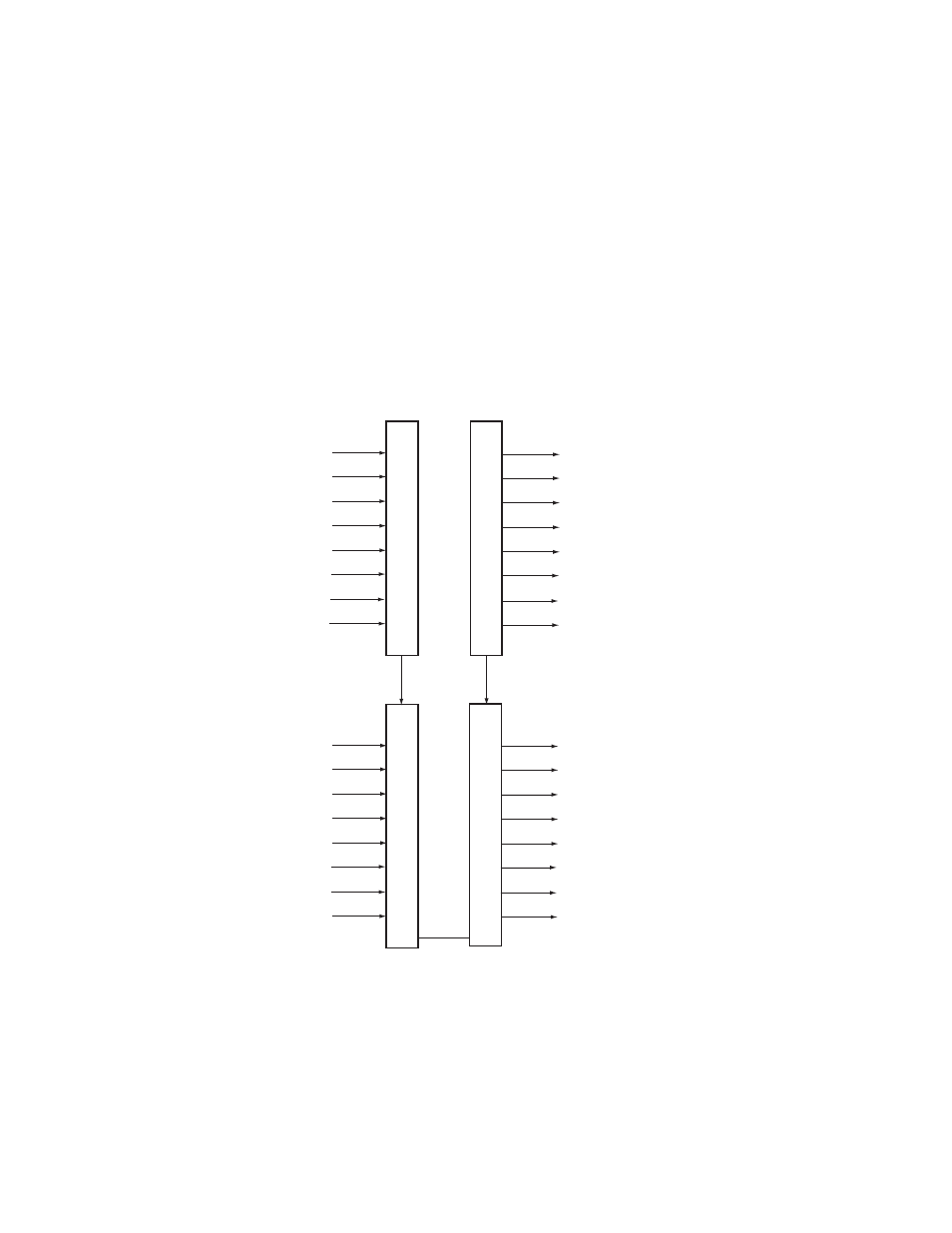

Figure 23. 8939FCA and 8939FCB Simple Block Diagram
COM
EXP
8939FCA
Single-mode Fiber (up to 50 km)
8939FCA
Ch1 TX
Ch2 TX
Ch3 TX
Ch4 TX
Ch5 TX
Ch6 TX
Ch7 TX
Ch8 TX
COM
Ch1 RX
Ch2 RX
Ch3 RX
Ch4 RX
Ch5 RX
Ch6 RX
Ch7 RX
Ch8 RX
COM
8939FCB 8939FCB
Ch9 TX
Ch10 TX
Ch11 TX
Ch12 TX
Ch13 TX
Ch14 TX
Ch15 TX
Ch16 TX
COM
Ch9 RX
Ch10 RX
Ch11 RX
Ch12 RX
Ch13 RX
Ch14 RX
Ch15 RX
Ch16 RX
MUX
DEMUX
MUX
DEMUX
EXP
EXP (N/A) (N/A) EXP
8543_13
r0
