14 8943FC — Instruction Manual
Installation
SFP Device Installation
Two optional dual channel CWDM receiver SFP devices can be installed on
an 8943FC module. Both are installed on the front of the module circuit
board. The type of SFP device depends on the application of the module
and the 8939FCA or 8939FCB module it will be feeding. Refer to
Table 1 on
page 10 .

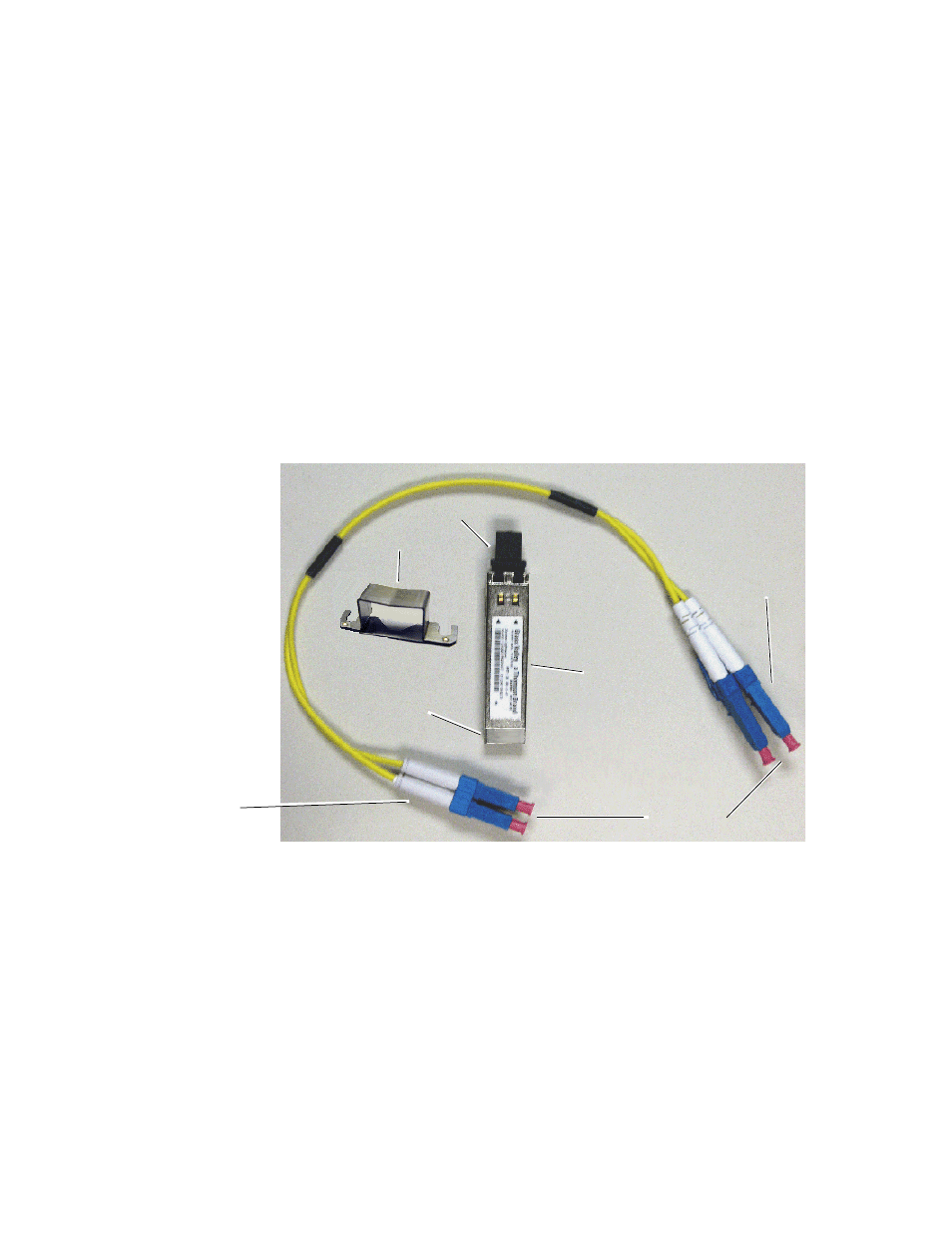

The optional strap-mount SFP Fiber Optic kit ( Figure 3 ) for GeckoFlex
fiber-ready modules includes:
• One Strap Mount Fiber Optic SFP Device (labeled for type)
• Mounting bracket for SFP device installation
• Fiber cable assembly for connecting SFP device to front module rear
connector
Figure 3. SFP Device Kit
Fiber Optic Cleaning Requirement
Before making any fiber optic cable mating connections to the SFP device
or cabling and after every de-mating cycle, use an industry standard fiber
optic cleaning kit, including oil-free compressed air, to clean the fiber con-
nectors and the connectorized fiber end faces. This helps ensure optimum
performance of the fiber optic interface. Industry standard fiber optic
cleaning kits can be purchased on the web and in electronics stores.
Ferrule covers
Duplex end ferrules
Simplex end ferrules
Mounting Bracket
SFP device dust cover
SFP device label
SCA-2 Connector
