LBI-39224
3-171

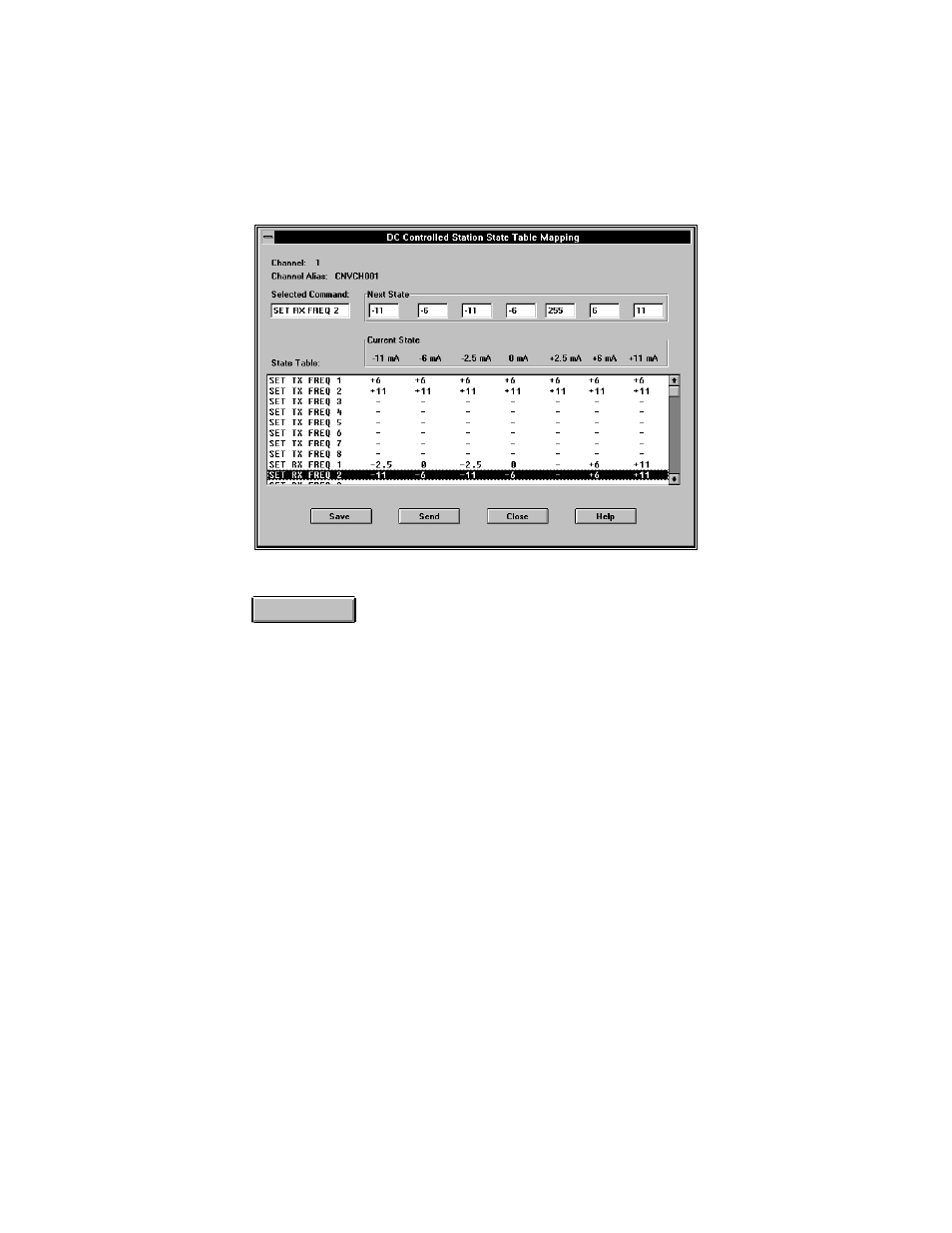

Figure 37 DC Controlled Station State Mapping Dialog Box
Help
Choose the Help button to access the Help function. (Help is also
available by pressing the F1 key.)
The DC Controlled Station State Table Mapping (low level
configuration) dialog box maps to a state table located on the CI Board
for the selected channel. This state table is what the CI Board uses to
control the base station. DC stations' commands are controlled by
applying different current levels on a wire pair to select the required
functions.
Programming the state tables configures the CEC/IMC to send the DC
control signal that matches the conventional base station configuration
for the desired function. It will not be possible to program state tables
at the CEC/IMC without knowing the corresponding base station's DC
control signal configuration.
The currently selected channel (selected previously in the
Conventional Channel Configuration dialog box) is displayed in the
read only Channel field with its associated Channel Alias displayed
below.
