***CHECK SCALE BEFORE USING TEMPLATE***
MARK HOLES WITH
CENTERPUNCH, THEN DRILL
USING 5/16" BIT (4X)
ALIGN ALL FOUR EDGES AGAINST RADIUS OF FENDER
P/N 790-551 Aerosol Spray
P/N 790-550 Squeeze Spray
Filter Service
Airaid recommends following the manufacturers maintenance
schedule for filter cleanings.
“Air filters should be inspected before each ride. Filter
and pre-filter need to be replaced at least annually and
more often if subjected to severe use.”
The Airaid Filter is reusable and should be cleaned using the
Airaid Filter Tune-Up Kit .

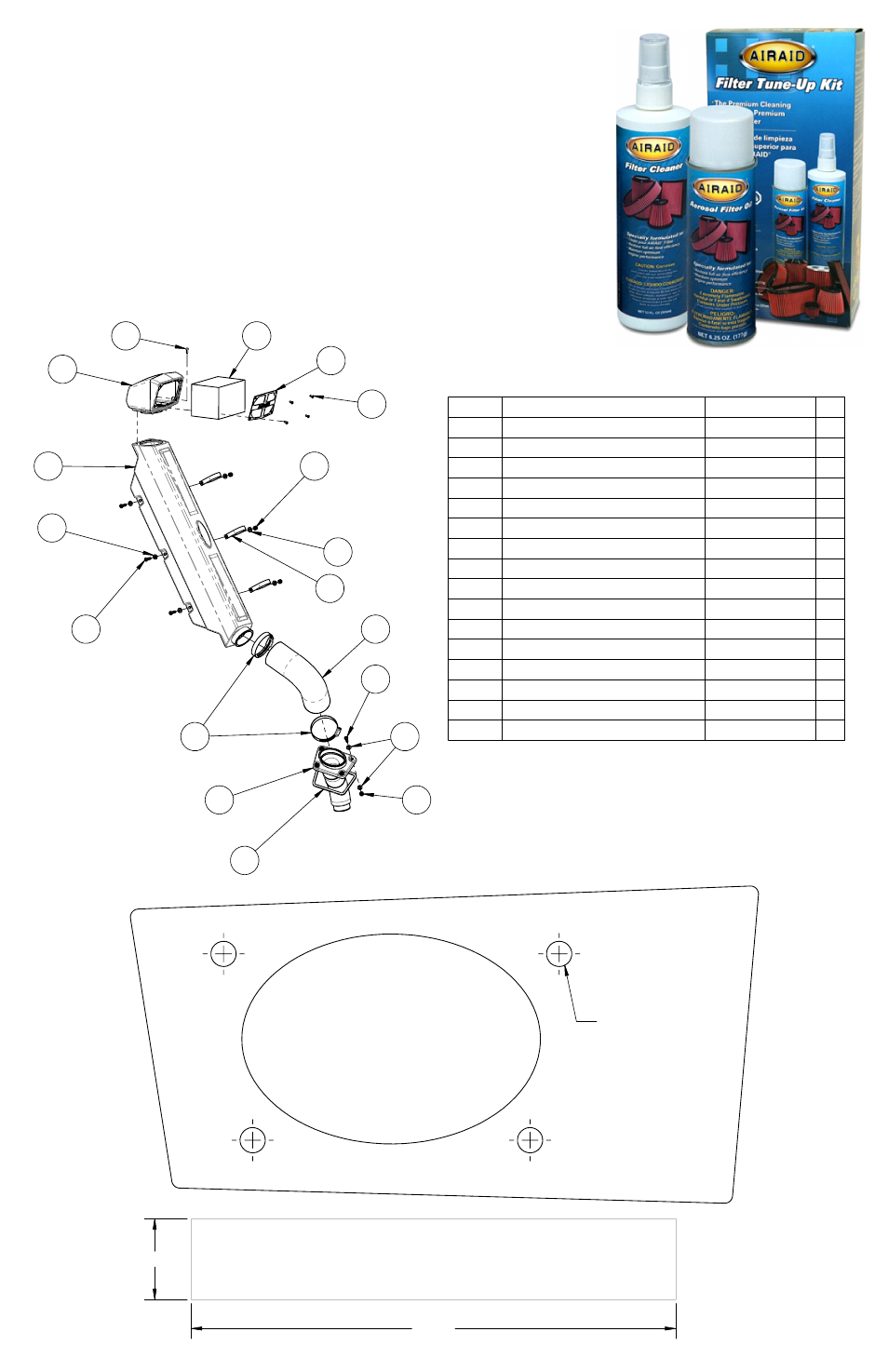

ITEM NO. AiraidPackinglistDESCR AiraidPackinglistP/N QTY.
1 Airaid Premium Filter (Not Shown) 800-502 1
2 Snorkel Tube KIT262STC 1
3 Snorkel Inlet KIT262SI 1
4 Snorkel Screen KIT262SS 1
5 Fender Adapter KIT262FA 1
6 Silicone Elbow KITELBOW09 1
7 Foam Prefilter KIT262PF 1
8 Adhesive Weatherstrip KITWSTRIP05 1
9 #48 Hose Clamp KITHS48 2
10 1 3/4" Loop Clamp KITCLAMP02 3
11 ¼-20 x 1.00” Button Head Cap Screw KIT15BHC3010 7
12 ¼” Lock Nut KIT25CNNES 7
13 1/4” Flat Washer KIT09FWZ019 14
14 Torx Plastic Screw KIT816500 4
15 8-32 x 3/8” Button Head Cap Screw KIT15BHC3038 4
16 Torx T20 Bit (Not Shown) KITBIT#01 1
