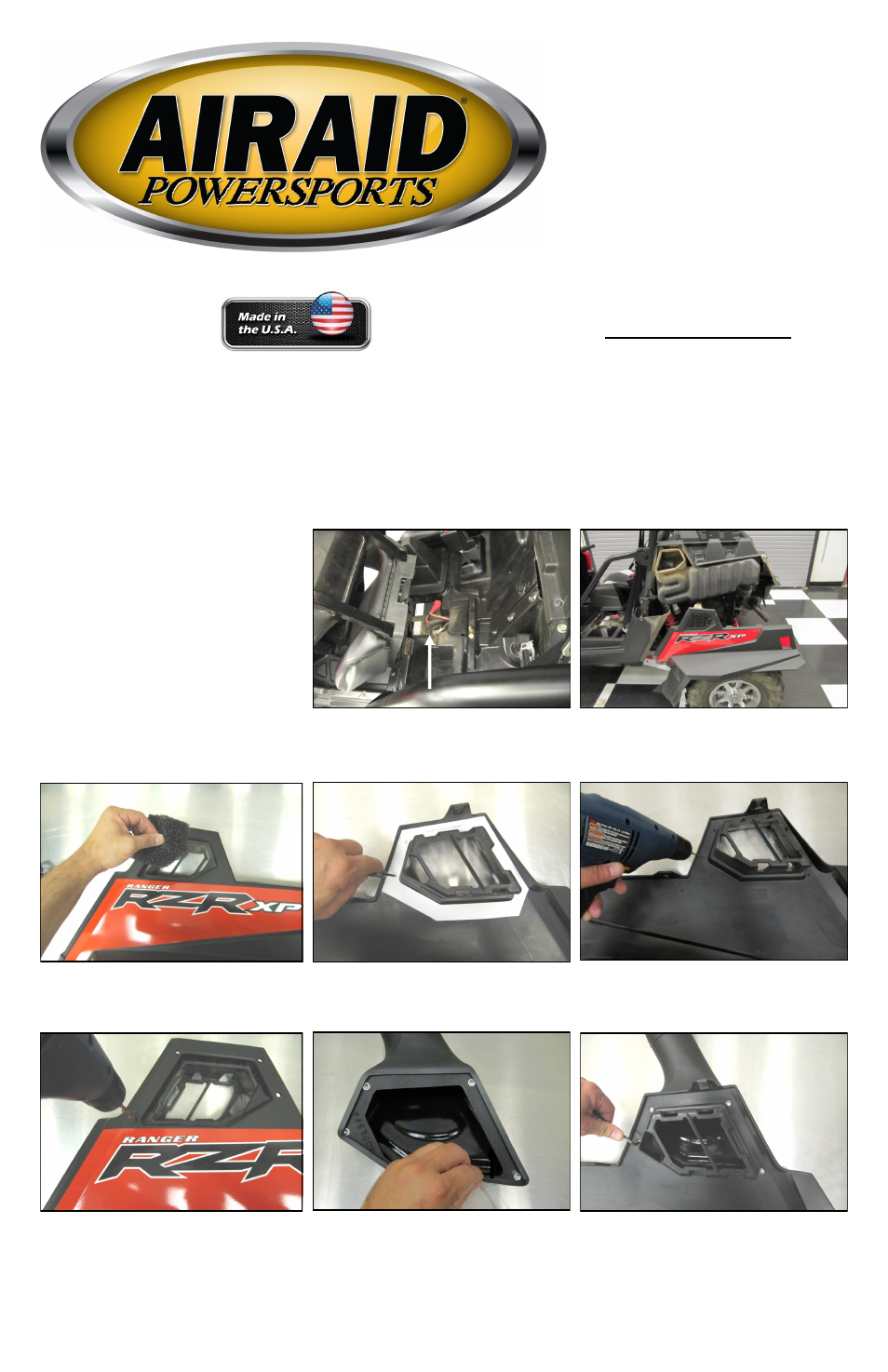

Installation Instructions

For Part Numbers:


883-316 Left Side-Engine Snorkel
883-317 Right Side-CVT Snorkel

2011-14 Polaris Ranger RZR 900 XP
2012-14 Polaris Ranger RZR XP 4
900 E.F.I.

1. Place the range selector in Park and remove the seat
from the vehicle. Disconnect the negative terminal on
the battery.

2. Remove the nine T-27 Torx head screws holding the
fender in place. Remove the fender and place it on a work
bench.

3. Remove the OEM filter cover and pre-filter from the
fender and set aside. They will not be reused.

4. Cut out the paper Template. Align it with the edges
of inner fender, and punch the four pilot holes. The
Template is reversible and can be used on either side.

5. Using a drill and a 1/8” bit, drill out the four pilot holes
in the inner fender.

7. Prepare the mating surface of the Fender Adapter
(#1) for the Foam Gasket Tape (#9) by cleaning with
a prep solvent. Apply the gasket tape along the outside
edge of the Fender Adapter as shown, avoiding the bolt
holes.

6. Using a 9/32” bit, drill out the pilot holes.

8. Attach the Fender Adapter to the outside of the factory
Fender using four 1/4-20 button head screws (#13).

Advisory Note:

Please read these installation instruc-
tions in their entirety before begin-
ning the install process. Airaid strong-
ly recommends the use of Locktite®
242 Medium strength threadlocker on
all threaded fasteners.

These instructions illustrate the installation of
Part Number 883-316 for the left side of the ve-
hicle. If installing part number 883-317, some
minor details may vary but the general install
procedure is the same. The Template is reversi-
ble and is to be used on either fender.

Tools Required For Installation:

7/16” and 1/2” Wrenches. 10mm, 7/16”, and 1/2”

Sockets.

T-27 Torx driver and 5/32” Allen Wrench. Ratchet

& Extension. 1/8”& 5/16” Drill bits.

Center punch and Mallet

Phillips and Standard Tip Screwdrivers.

Locktite ® 242 or equivalent, and a Prep– Solvent.

Thank you for purchasing the Airaid Intake System. Contact Airaid @ (800) 498-

6951 8:00 AM - 5:00 PM MST weekdays for questions regarding fit or instructions that are
not clear to you. Your Airaid Intake System was carefully inspected and packaged. Check
that no parts are missing, or were damaged during shipping. If any parts are missing, contact
Airaid. The air filter element is protected from direct exposure to water and debris; care
should be taken not to drive through deep water. WATER INGESTION IS THE DRIVERS
RESPONSIBILITY
