Installation Instructions. Read Me!
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove throttle body air intake system.
3. Remove (4) bolts from the throttle body. (Ref. “A”)
4. Install power plate using (4) 6mm bolts and (4) 6mm washers. (Ref. “B”)
* Note: Install the ‘O’-ring in the power plate and face towards the throttle body.
5. Install (2) extension plates. (Ref. “C”)
6. Inspect & Test the throttle linkage for full open & closed travel before driving. Some cruise or kickdown ca-
bles may require adjustment. Please refer to your vehicles service manual for proper adjusting.
7. Reinstall air intake system using (Step 2) as an example.
8. Reinstall negative battery cable. Enjoy!
The sound of power...The “whistle” means its working!
Rev 02.13.15

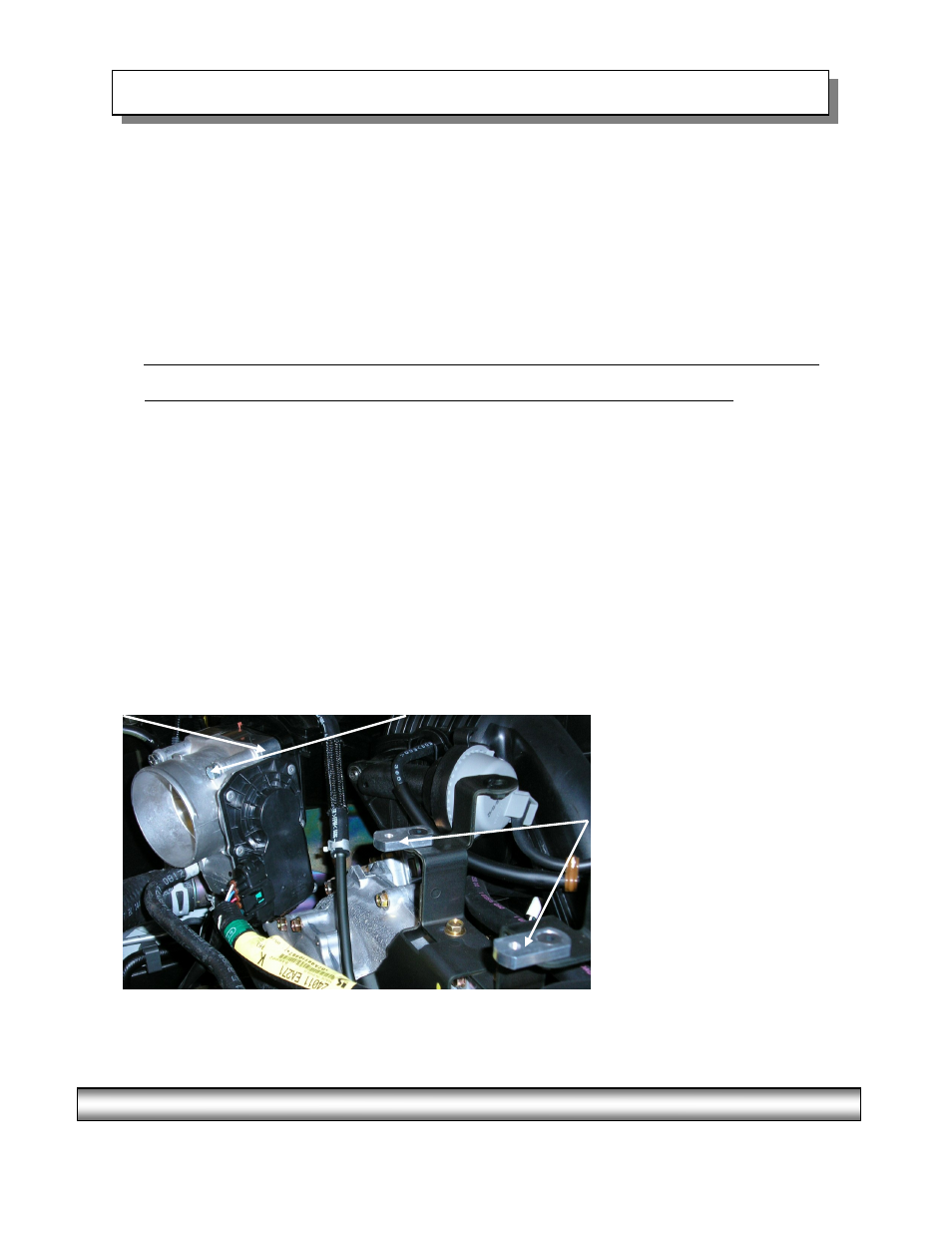

Ref. “A”- (1) Power Plate
(1) O-ring
Ref. “B”- (4) 6mm x 70mm Hex Bolts
(4) 6mm Flat Washers
Ref. “C”- (2) Extension Plates
(2) 6mm x 16mm Flathead Screws
