Page 2
Airaid Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 (800) 498-6951
Instructions Revision
Date: 01.22.14

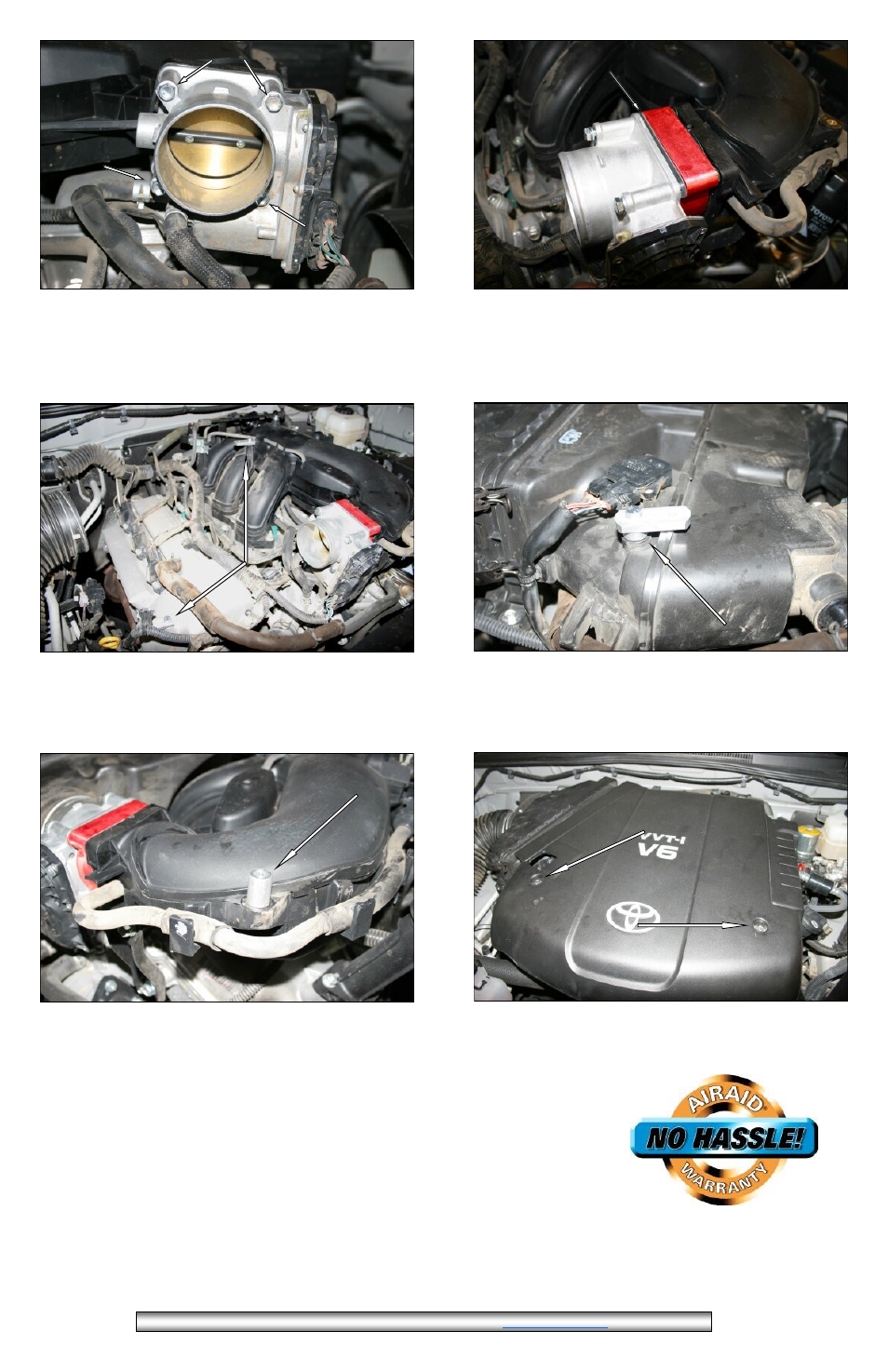

9. Install the 3/4” long round spacer (#11) on top of the threaded hole where the
stud was removed on the intake manifold as shown and proceed to the next step.
7. Install one 1” extension plate (#9) using a 6mm x 20mm bolt (#5) and flat
washer (#4) on the valve cover with the long end of the spacer facing the right
fender. Repeat this procedure on the top of the intake manifold at the location
shown above.
8. Reinstall the resonator/airbox assembly in the reverse order that you removed
it using the factory bolts. Make sure to reconnect all breather and vacuum hoses,
and the Mass Air sensor electrical connector. Install one 1” extension plate (#9)
using the 5/16” thick round spacer (#10) and 6mm x 25mm bolt (#6), with flat
washer (#4) in the threaded hole where the stud was removed on the resonator/
airbox, with the extension plate facing the throttlebody as shown.
Gasket
Contact your nearest Airaid dealer for an Airaid
Intake System for your car, truck or SUV.
The sound of power...The “whistle” means its working!
10. Gently reinstall the beauty cover on the engine and use one 6mm x 12mm
bolt (#8) with flat washer (#4) on the passenger side, and one 6mm x 40mm bolt
(#7) with flat washer (#4) on the driver’s side.
6. Slide the Poweraid Spacer (#1) and gasket (#2) between the intake manifold
and the throttlebody. Make sure the “Flow” arrow on the spacer is pointing to-
wards the intake manifold, and the gasket is next to the throttlebody. Install the 4
supplied 6mm x 75mm bolts (#3) and flat washers (#4) thru the throttlebody,
gasket, spacer, into the intake manifold and tighten evenly to the vehicle manu-
facturer’s specifications.
5. Using a 10mm socket, remove the 4 bolts that hold the throttlebody to the in-
take manifold.
11.
Double check your work!
Make sure there is no foreign material in the intake path. Make sure all clamps,
hoses, bolts, and screws are tight.
Reconnect the negative battery cable!
6mm x 40mm Bolt
with flat washer
6mm x 12mm Bolt
with flat washer
