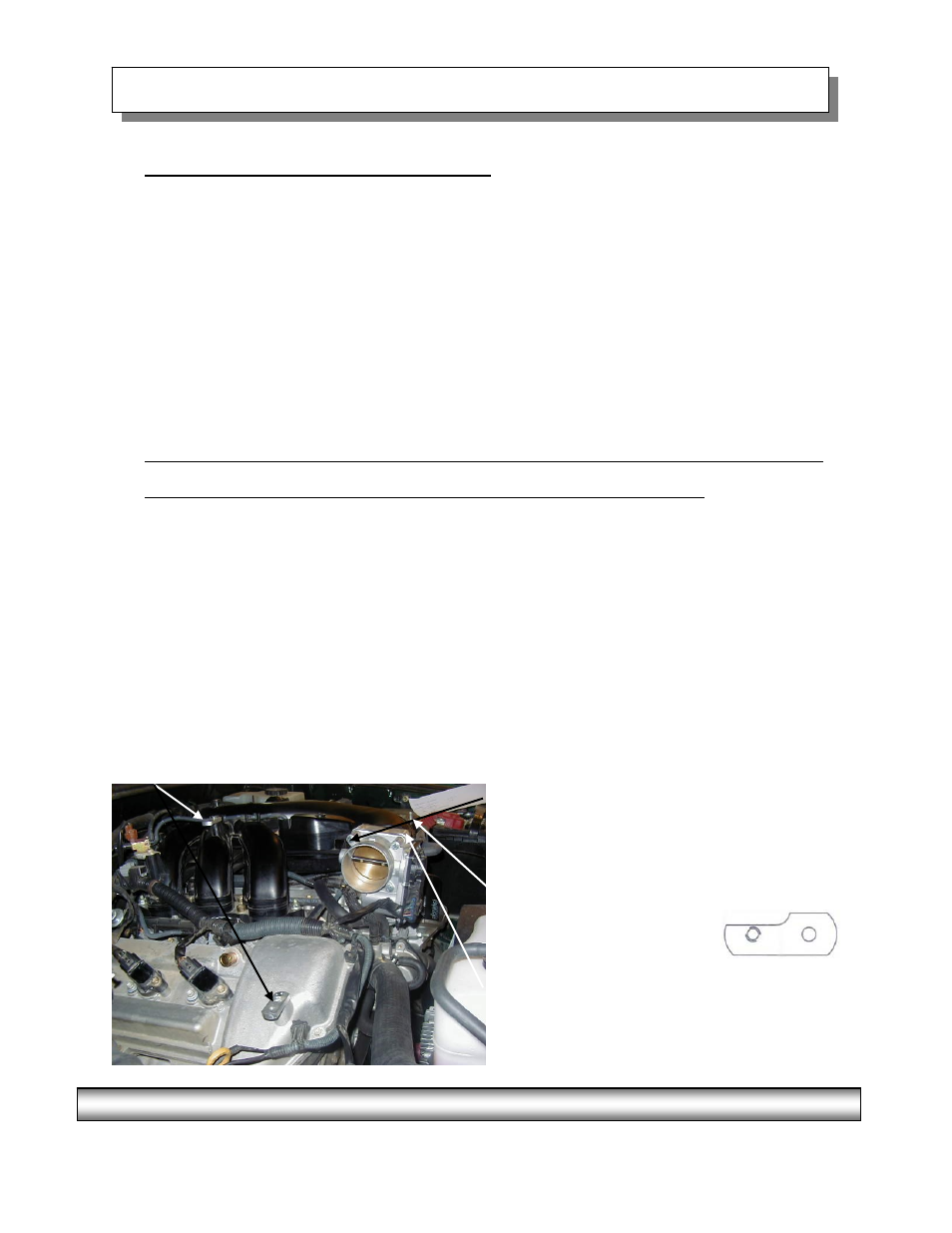

Installation Instructions. Read Me!
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove manifold cover and save bolts and nut.
3. Remove air intake hose assembly.
4. Remove throttle body bolts. (Ref. “B”)
5. Remove throttle body and then install power plate using (4) 6mm x 75mm hex bolts and (4) 6mm flat washers.
6. Install (2) manifold cover extension plates. (Ref. “C”)
7. Install (1) special manifold cover extension plate. (Ref. “D”)
*
Please Note: (1) 6mm nut & (1) 6mm washer to attach special extension plate.
(1) 6mm x 20mm hex bolt & (1) 6mm washer to attach manifold cover to extension plate.
8. Inspect & Test throttle linkage for full Open & Closed travel before driving. Some cruise or kickdown cables
may require adjustment. Please refer to service manual for proper adjustment instructions.
9. Reinstall air intake hose assembly. (Please refer to Step 3)
10. Reinstall manifold cover using saved bolts and (1) furnished 6mm x 20mm hex bolt.
11. Reconnect negative battery cable. Enjoy!
The sound of power...The “whistle” means its working!
Rev. 07/28/08
Ref. “C”- (2) Manifold Cover Ext. Plates
(2) 6mm x 20mm Hex Bolts
(2) 6mm Flat Washers
Ref. “B”- (4) 6mm x 75mm Hex Bolts
(4) 6mm Flat Washers
Ref. “D”- (1) Extension Plate (Special)
(1) 6mm x 20mm Hex
Bolts
(2) 6mm Flat Washers
Ref. “A”- (1) Power Plate
(1) Gasket
